Cordial

Cordial Essentials REAN XLR Female to XLR Male CCM FM (0.5m to 20m)

Cordial Essentials REAN XLR Female to XLR Male CCM FM (0.5m to 20m)

SKU: SKU: CAB-CCM05FM-CORDIAL

Regular price $25.00
Regular price Sale price $25.00
Sale Sold out
Taxes included.
SIZE

Description

The CCM FM is the price and quality optimised microphone cable of our ESSENTIALS line. With a conductor area of 2x 0.22 mm² and a spiral shielding of bare CU wires (90% coverage), it ensures undistorted signals in daily use. The moulded-on bend protection sleeve (plug openable) protects the sensitive areas from cable breakage and ensures solid mating cycles.

The hand-soldered REAN® by NEUTRIK® connectors offer the usual NEUTRIK quality at lower prices. The conductor composition of 28 individual strands (0.10 mm diameter each) makes it particularly flexible and easy to wind.



What is the difference?

Essentials (CCM) - Well priced quality cable, uses Neutrik REAN branded connectors.

Select (CPM) - Uses a better quality cable and Neutrik connectors.

Peak (CSM + CSM GOLD 250) - An even better quality cable, and Neutrik connectors. A great premium cable.

CEON (UV Glow Cable) - Premium quality DJ focused cable in Neon colours.

Specification


Conductor area 0.22 mm²
AWG AWG 24
Composition of conductor 28 x 0.10 mm
Material bare copper
Conductor resistance < 80 Ohm/km
Shielding spiral shield (90% coverage)
Capacity cond.-cond. (pF/m) < 80 pF/m
category Microphone
diameter 5.9 ± 0.2 mm
Conductor isolation LDPE



cable essentials cable 1
Jacket PVC

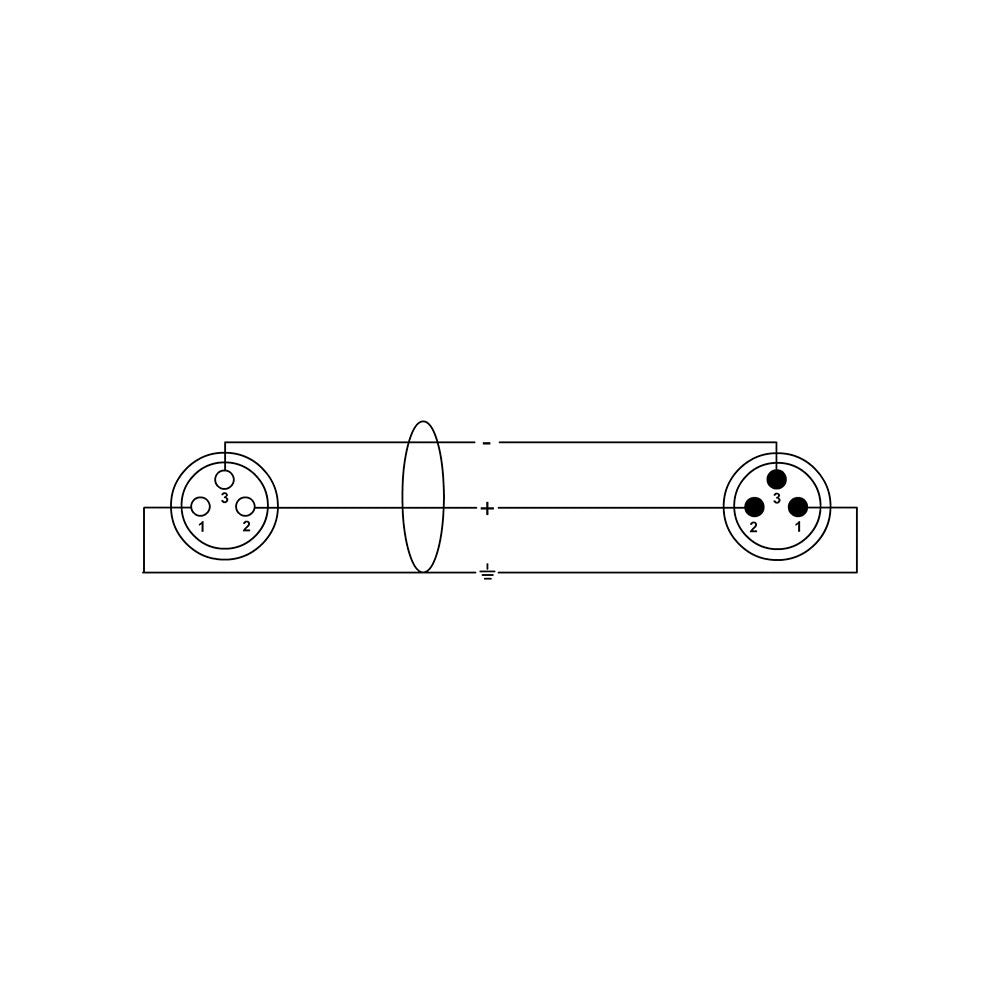

cable assign FM
connector brand REAN ®
plugs
1x XLR female 3-pole

1x XLR male 3-pole
