Chiayo Live100B rack mountable wireless beltpack system with slimeline headset microphone

Product Live-100 Series: Wireless System Packages

The LIVE-100 system packages feature a metal chassis receiver with 100 UHF channels, including a spectrum scan feature and IR frequency upload/download. Each package includes an XLR patch lead and rack mounting kit.

Available frequency ranges: 520MHZ, 566MHZ and 650MHZ. Please specify preference on check out

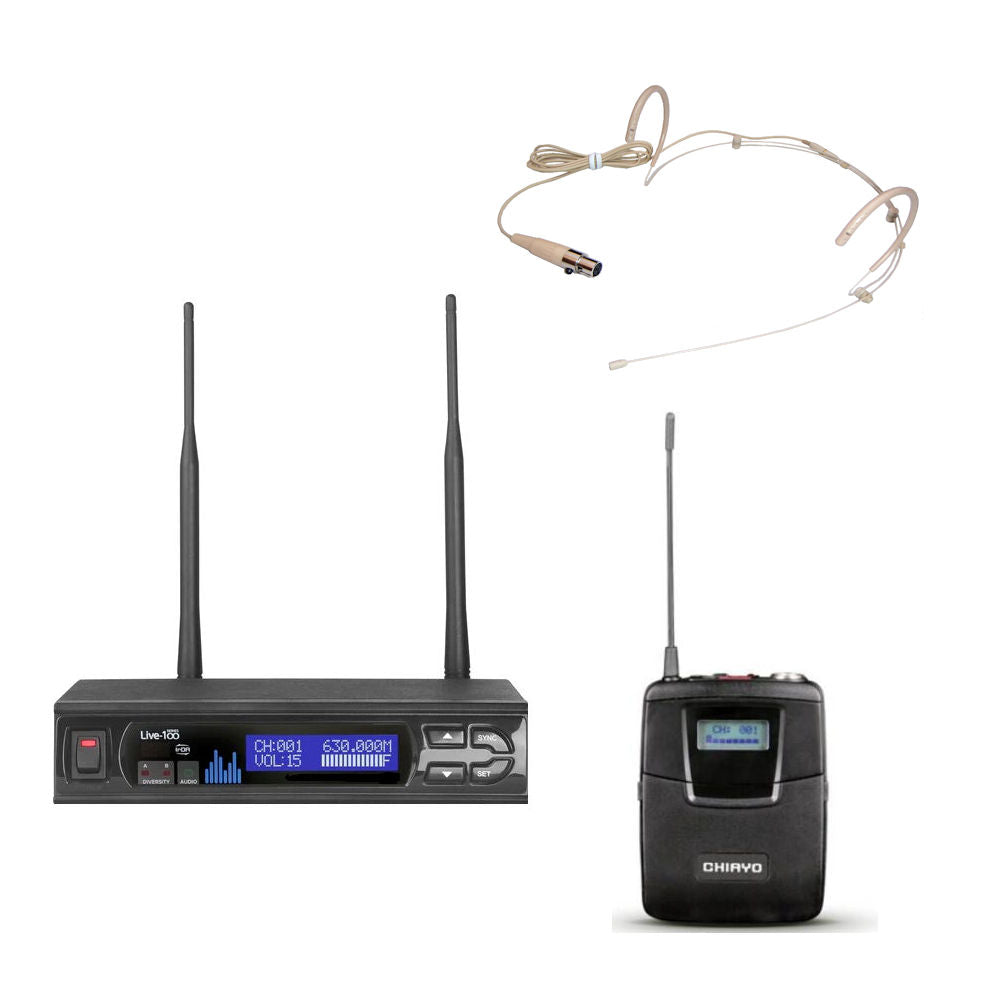

Headset System:

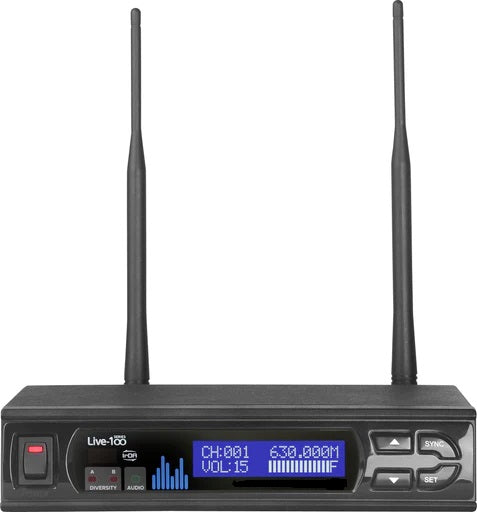

Live-100 Wireless Receiver SM1100 IrDA,

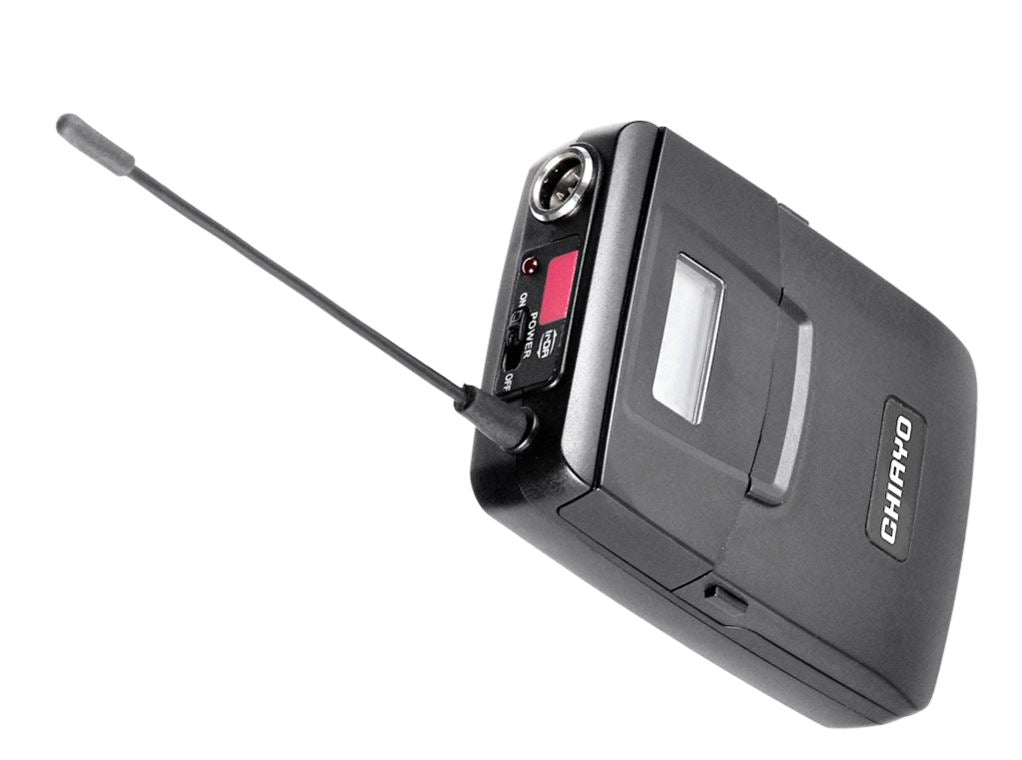

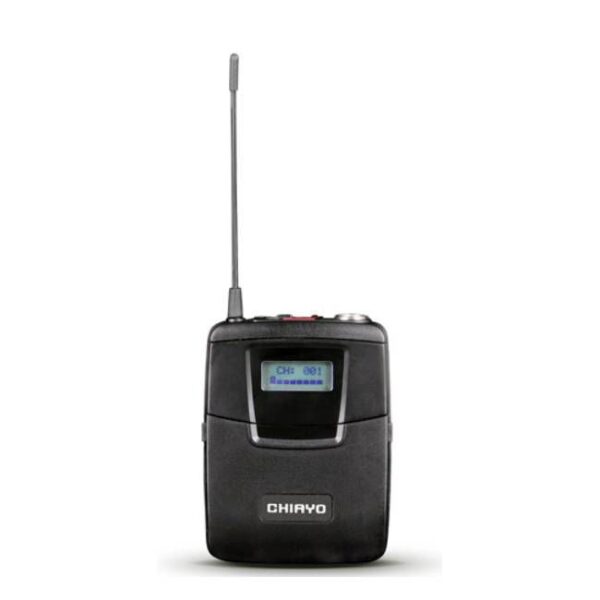

Beltpack Transmitter SM6100 IrDA

Slimline Omni directional Headset Microphone PT30X

Key Features:

• 100 factory preset user-selectable UHF frequencies
• Advanced microprocessor control with excellent RF design for interference-free multi-channel operation
• Patented IrDA technology for 2-way sync between transmitter and receiver
• SCAN function automatically locates the next clean frequency
• More than 10-12 non-interfering channels can be operated simultaneously within a selected 25MHz bandwidth
• Diversity design for high sensitivity, high selectivity, and high image/spurious rejections
• LCD display on the receiver shows the selected frequency
• Antennas can be either rear or front-mounted
• Anti-interference Pilotone control and RF noise squelch circuitries
• RF & AF LED indicators
• Balanced (XLR)*1 / unbalanced (O6.3mm)*1 audio outputs
• Half-rack metal chassis, mountable with optional mount kit (MP-90S for 1 unit, MP-92S for 2 units)
• Matching transmitters: SQ-6100 IrDA/SQ-5100 IrDA/SQ-2100 IrDA/SQ-1100 IrDA, SM-6100 IrDA/SM-1100 IrDA

Specifications (Wireless Receiver):

• Frequency Range: UHF
• Switching Bandwidth: 25MHz
• Switchable Frequencies: 100
• Channels: 1
• Display Screen: LCD
• Oscillation Type: PLL Synthesized
• Frequency Stability: ±0.005%
• Receiving Method: Diversity
• Sensitivity: -95dBm
• 2-Way Synchronization: Yes
• Image Rejection: > 85dB
• S/N Ratio: > 110dB
• Peak Deviation: ±40KHz
• T.H.D: < 0.5%
• Antenna Divider: -
• Antenna Socket: TNC type
• Audio Outputs: Unbalanced: +4dBm(1.25V)/5KΩ / Balanced: -18dBm(50mV)/600Ω
• Squelch: RF/Noise/Pilotone squelch
• Power Supply: 100-240V AC, 12V DC/2.0A
• Chassis: Half-rack (metal)
• Dimensions (WDH, mm): 20015044
• Weight (kg): 0.63

Note: The above specifications are subject to change without prior notice.
