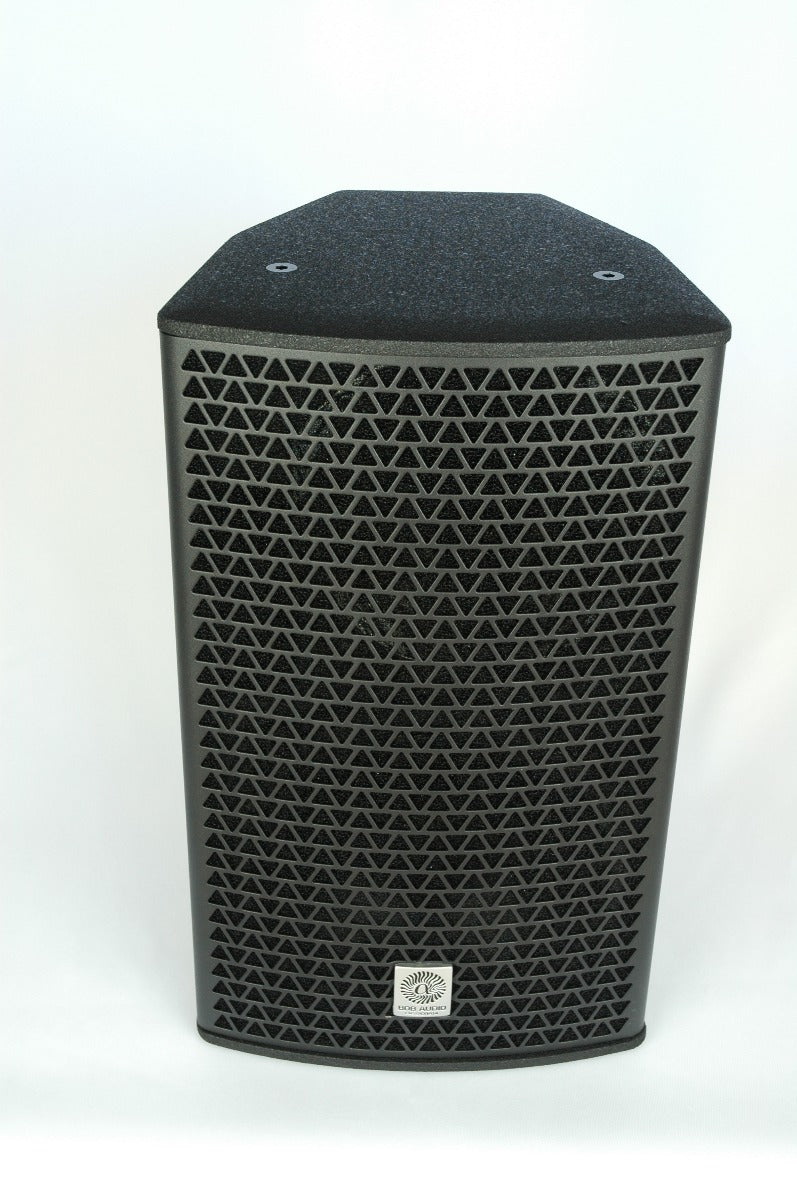

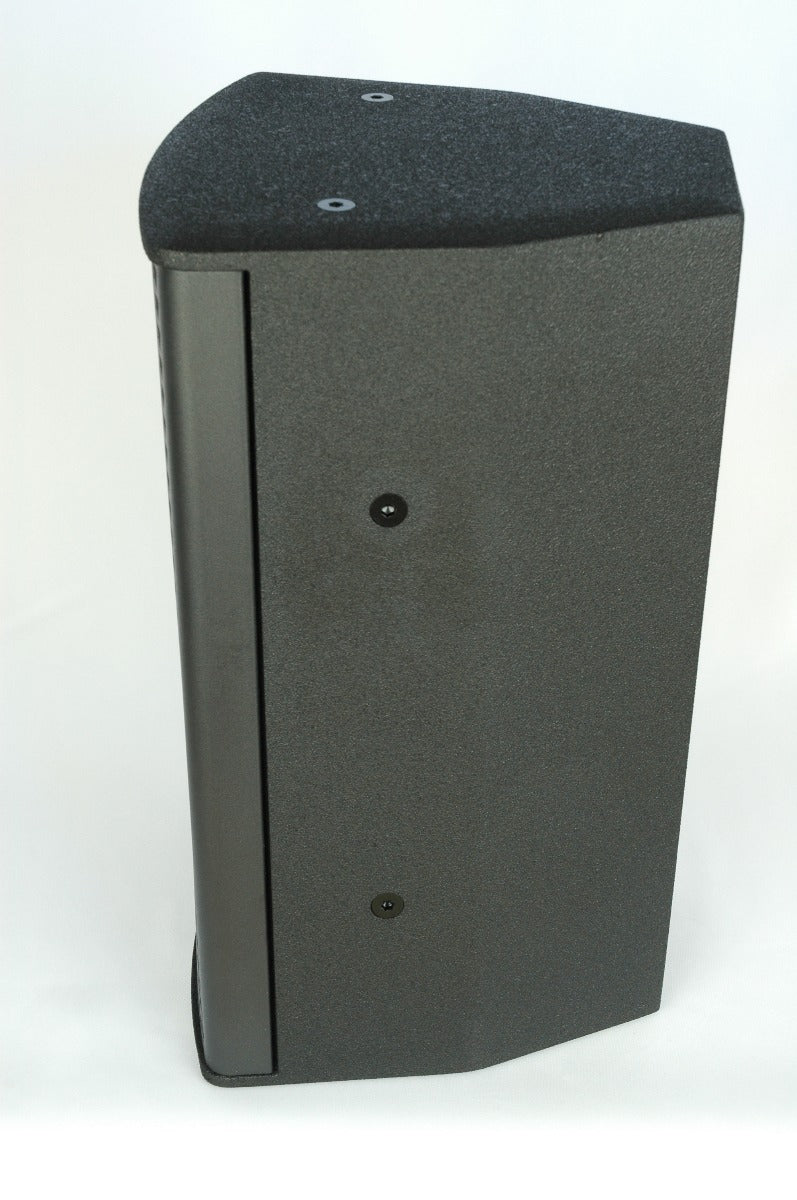

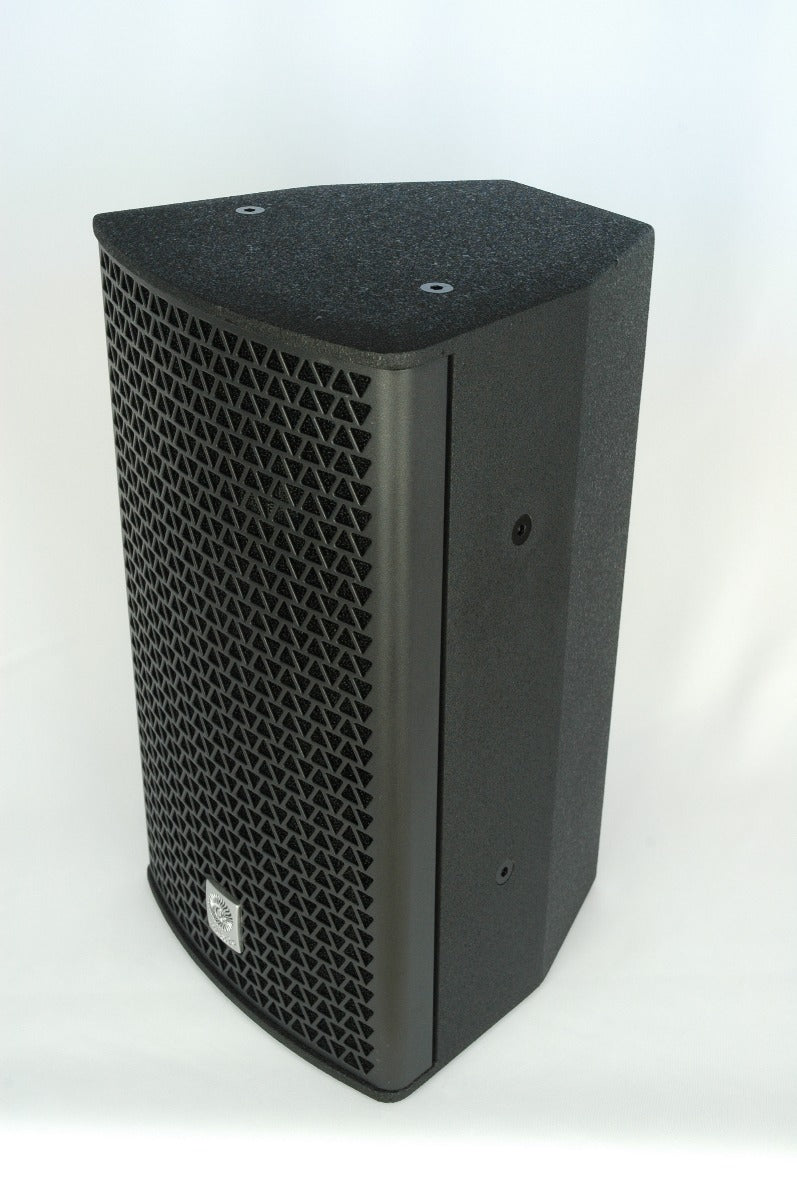

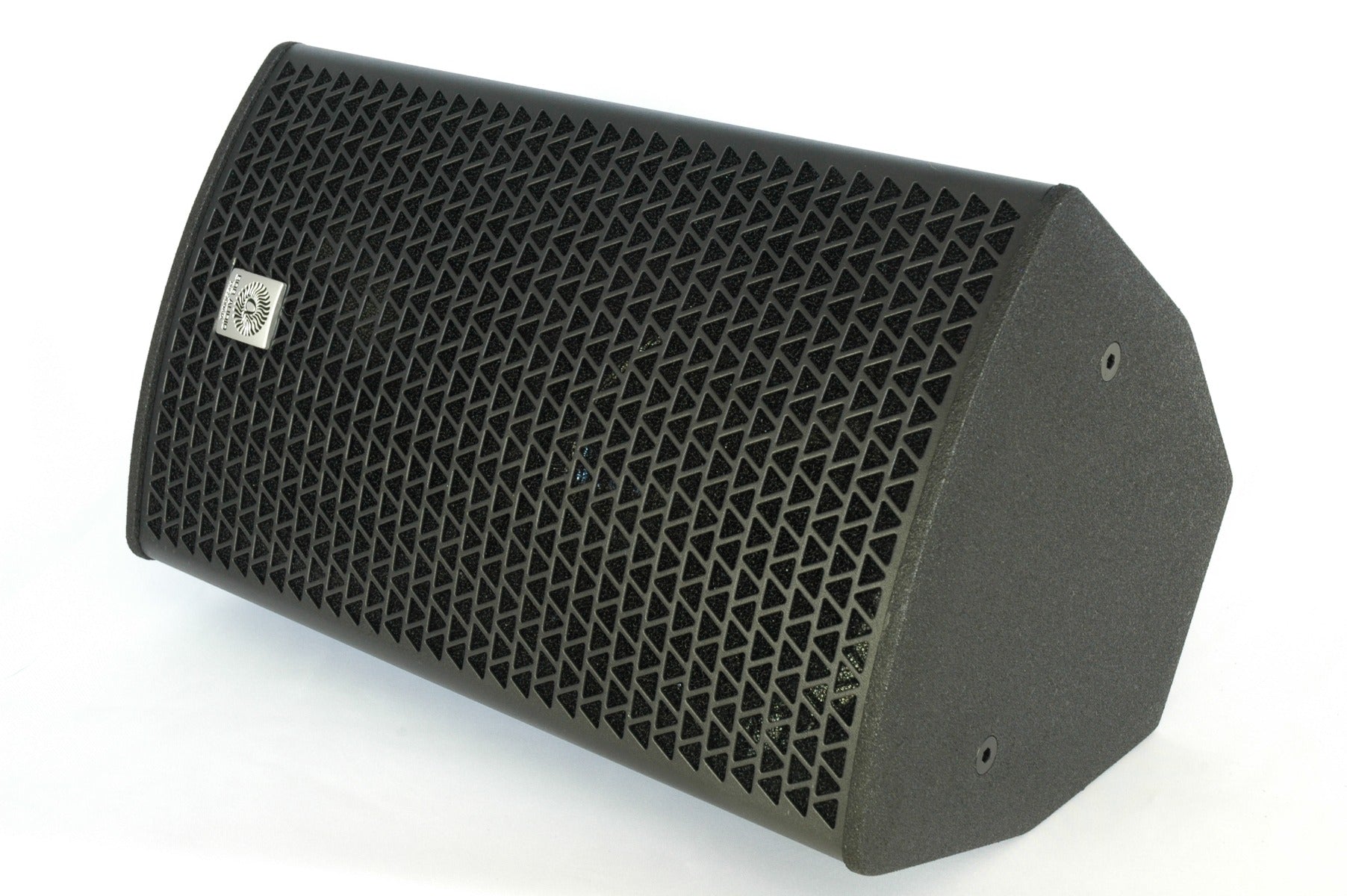

BOB AUDIO CS108 8" PASSIVE SPEAKER 150W RMS
BOB AUDIO CS108 8" PASSIVE SPEAKER 150W RMS
SKU: SKU: CS108
In Stock
Description
Description
System specifications:
Frequency Response 70 Hz - 20 kHz (±3dB)
Sensitivity 93 dB SPL (1W @ 1m)
Nominal Impedance 8 ohms
Power Rating 150 watts (rms), 300 watts (program), 600 watts (peak)
Maximum SPL 112 dB
Nominal Dispersion 90°horizontal, 60°vertical
Crossover Frequency 2.7 kHz
DRIVERS
Low Frequency 1 x 8(in) 210 mm dia, 50 mm(2in)voice coil dia
High Frequency 1x1.33(in) 33.7mm voice coil dia, 23 mm(1in)throat dia
PHYSICAL
Enclosure Construction 18 mm birch plywood with structured
Finish: Wear-resistant textured black paint
Grille: Powder coated perforated steel,foam backed
Rigging: 9 x M8 internal rigging points
Integral pole mount socket
Input Connectors: Speakon NL4 x 2
Dimensions HxWxD 440 mm x 270 mm x 280 mm
Net Weight 9kg
Specification
Specification
System specifications:
Frequency Response 70 Hz - 20 kHz (±3dB)
Sensitivity 93 dB SPL (1W @ 1m)
Nominal Impedance 8 ohms
Power Rating 150 watts (rms), 300 watts (program), 600 watts (peak)
Maximum SPL 112 dB
Nominal Dispersion 90°horizontal, 60°vertical
Crossover Frequency 2.7 kHz
DRIVERS
Low Frequency 1 x 8(in) 210 mm dia, 50 mm(2in)voice coil dia
High Frequency 1x1.33(in) 3mm voice coil dia, 23 mm(1in)throat dia
PHYSICAL
Enclosure Construction 18 mm birch plywood with structured
Finish: Wear-resistant textured black paint
Grille: Powder coated perforated steel,foam backed
Rigging: 9 x M8 internal rigging points
Integral pole mount socket
Input Connectors: Speakon NL4 x 2
Dimensions HxWxD 440 mm x 270 mm x 280 mm
Net Weight 9kg
