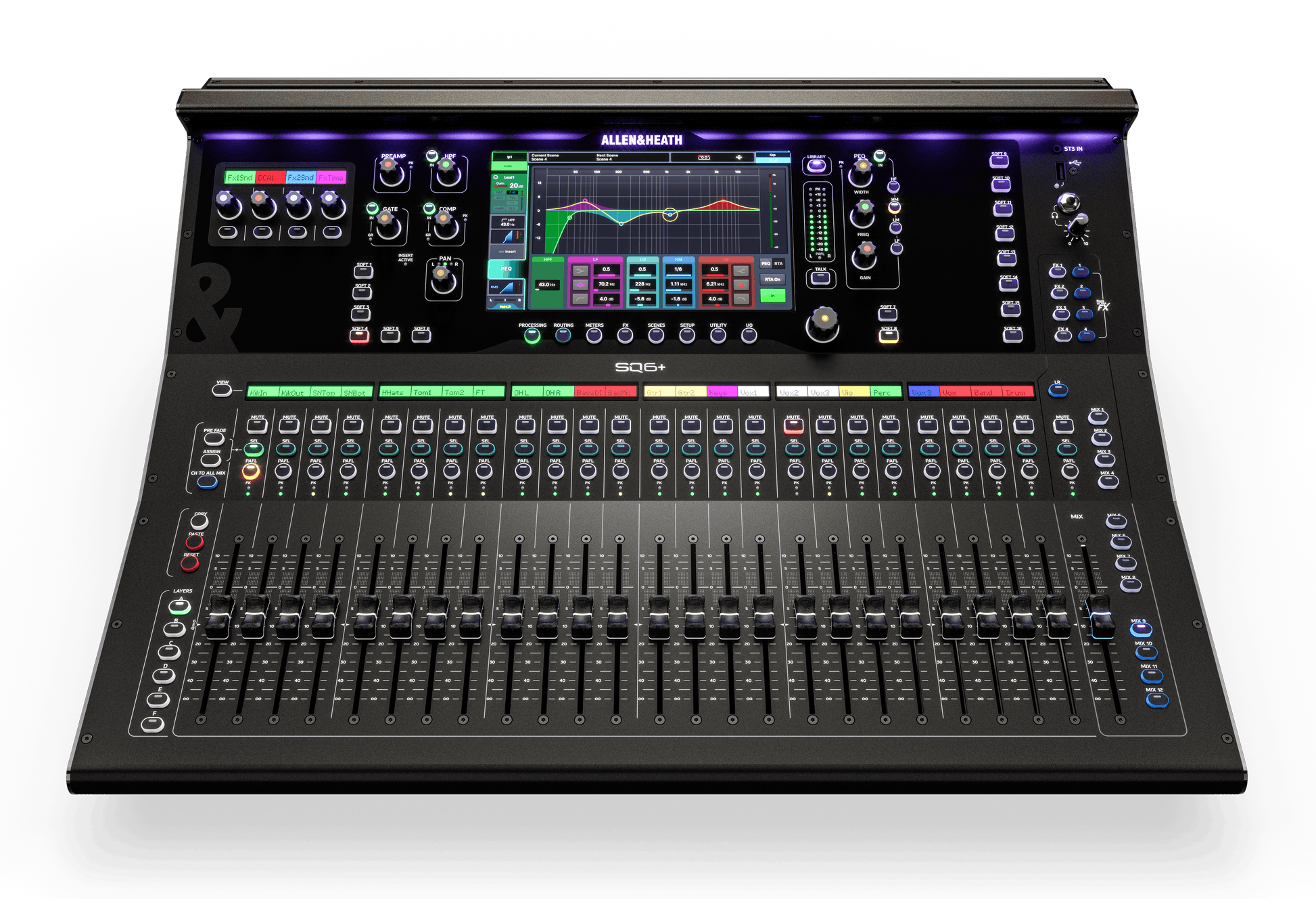

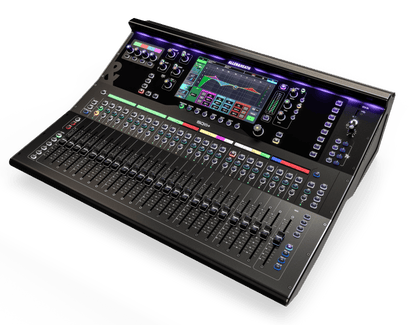

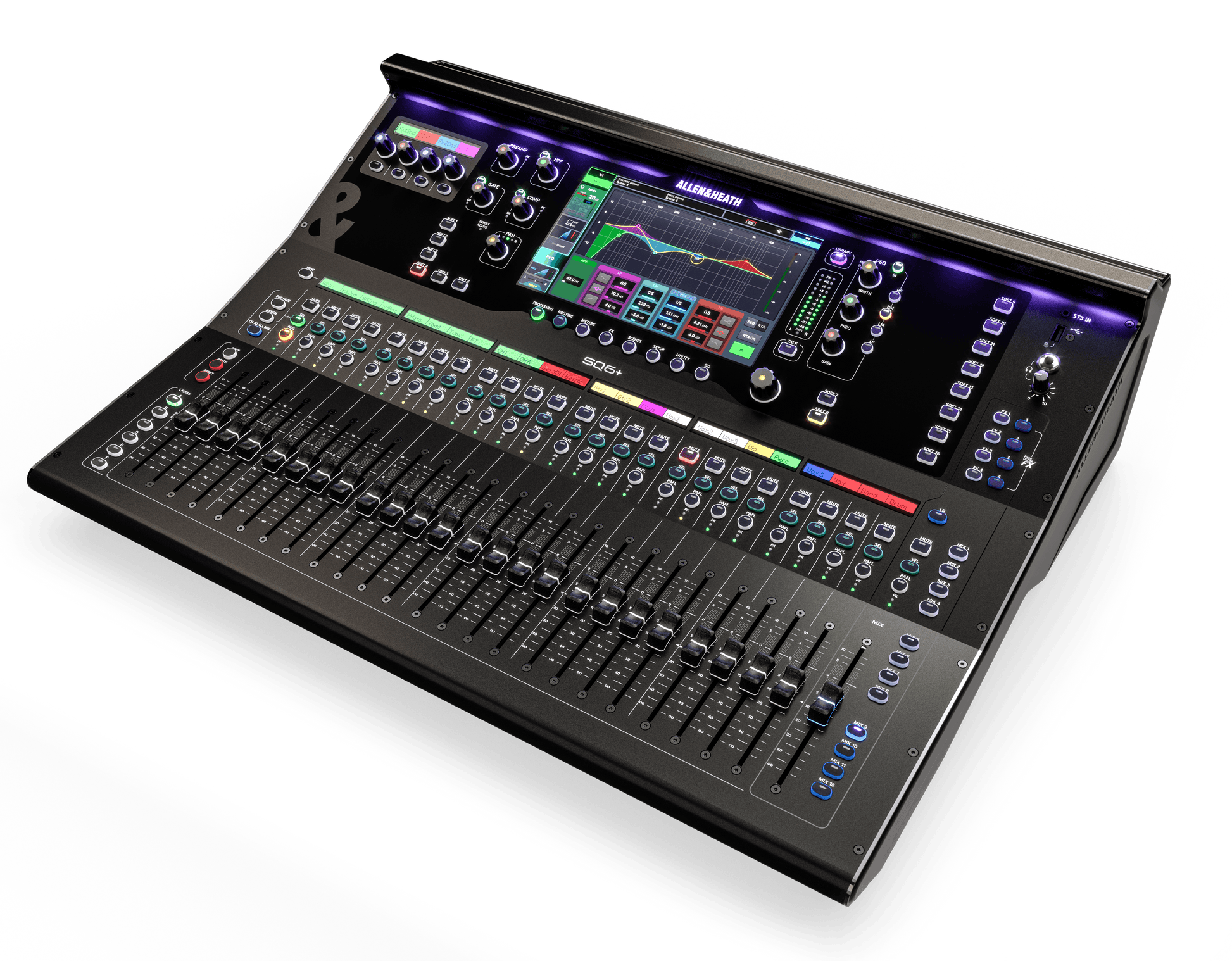

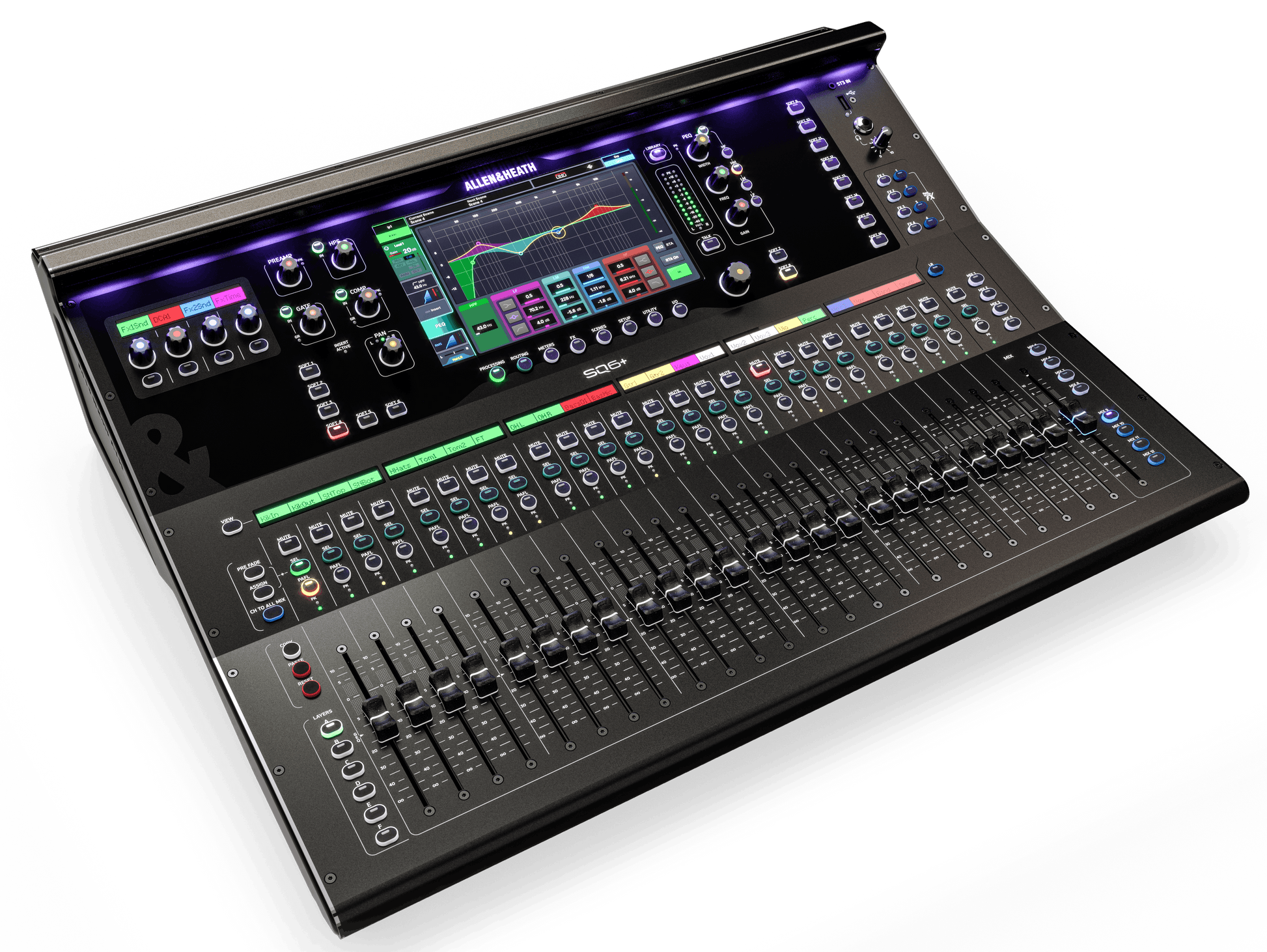

Allen & Heath SQ6+ 48 Channel / 44 Bus / 25 Fader Digital Mixer with RackUltra FX

SQ6+ Overview

The SQ6+ expands the range with 25 motorised faders, 16 assignable SoftKeys and 4 SoftRotaries giving you more physical control when working with larger, more complex shows. Add 4 built-in RackUltra FX engines and you have a mixer that strikes the perfect balance between hands-on control and portability.

Mixing Has Never Been Easier

A Bigger, Bolder Interface

SQ+ is centred around a responsive 9” touchscreen with an all-new dark GUI that is fast to navigate and easy to read in any mixing environment. Framed by high-grip illuminated encoders, it delivers an intuitive blend of visual feedback and hands-on control.

Drag-and-Drop Layout

Channels and mixes can be dragged and dropped to any strip, with custom naming and colour coding on the displays, letting you build a mixing environment that works for you.

At-a-Glance Metering

Each strip features our patented Chromatic channel metering system, giving you at-a-glance level indication down to -72dB thanks to LEDs with variable brightness and colour.

Accelerate Your Workflow

All SQ+ mixers feature assignable SoftKeys for quick access to the functions you use the most. The SQ6+ and SQ7+ also include assignable SoftRotaries for even more custom control.

World Class Processing & FX

Processing

Every input channel comes equipped with HPF, a super-fast gate with sidechain and filter, a freely assignable insert point, a musical 4-band parametric equaliser with RTA, and Peak/RMS compressor for control and shaping of levels and transients. Mixes include both a parametric and 28 band graphic EQ along with compressor as standard, all ready to switch in when required.

DEEP Processing

SQ+ supports the latest generation of DEEP processing add-ons – models of classic analogue hardware embedded directly into your channel and mix strips, adding no latency, and available on every channel simultaneously.

PlusPack

Register your SQ+ and sign up to the Allen & Heath newsletter to get SQ+ PlusPack – a bundle including every DEEP and RackExtra FX Add-On available at launch – free with your new mixer! (RackUltra FX available separately)

Read more about PlusPackGet PlusPack

Effects

SQ+ is equipped with 8 RackExtra FX engines, each with its own dedicated stereo return, giving you access to the acclaimed RackExtra FX suite, featuring emulations of legendary reverbs, gated reverbs, delays, modulators and more.

Four built-in RackUltra FX engines take SQ+ further, each with dedicated stereo sends and returns. First developed for the flagship dLive system, and proven on international tours, the RackUltra FX suite of add-ons brings premium reverbs, vocal tuning and pitch processors, distortion, saturation, and more to SQ+. The 4 engines can also run RackExtra FX for maximum flexibility.

Recording & Playback

Interface

SQ+’s built-in USB audio interface enables easy multitrack recording, backing-track playback, livestreaming, and virtual soundcheck at up to 32×32 channels at both 96kHz and 48kHz. Class compliant and compatible with Mac and Windows.

SQ-Drive

The integrated SQ-Drive makes it quick and easy to capture or playback 16 channels (96kHz), 32 channels (48kHz), or a simple stereo mix, direct to a USB drive. No need for a laptop or DAW – just press record.

Connectivity & Expansion

SQ+ is designed to sit at the centre of whatever system you’re building, and to grow with it.

The 128×128 Intelligent SLink port opens up the entire Allen & Heath Everything I/O ecosystem, connecting seamlessly to a wide range of remote stage boxes, expanders, and other Allen & Heath consoles.

A dedicated I/O expansion slot supports optional cards for Dante, MADI, Waves and additional SLink connections, making SQ+ a natural fit for complex multi-format installs, FOH/monitor splits and broadcast setups.

SQ6+ Features

Audio and Processing

96kHz XCVI Core

48x Inputs to Mix

12x Stereo Aux/Group Mixes + LR

6x Mono/Linkable Matrix

Full Channel and Mix processing (HPF, PEQ/GEQ, Comp, Gate)

DEEP Processing ready

8x Rack Extra FX Engines with dedicated send and return channels

4x RackUltra FX Engines with dedicated send and return channels

Digital I/O

128×128 Intelligent SLink Port for Everything I/O expansion and connection to other A&H consoles

1x I/O Port for option cards (SLink, Dante, Waves and MADI cards available)

1x AES3 Stereo Digital Output Socket

USB Recording & Playback

USB A: 16 Channels @ 96kHz

USB A: 32 Channels @ 48kHz

USB B Interface: 32×32 @ 96kHz

USB B Interface: 32×32 @ 48kHz

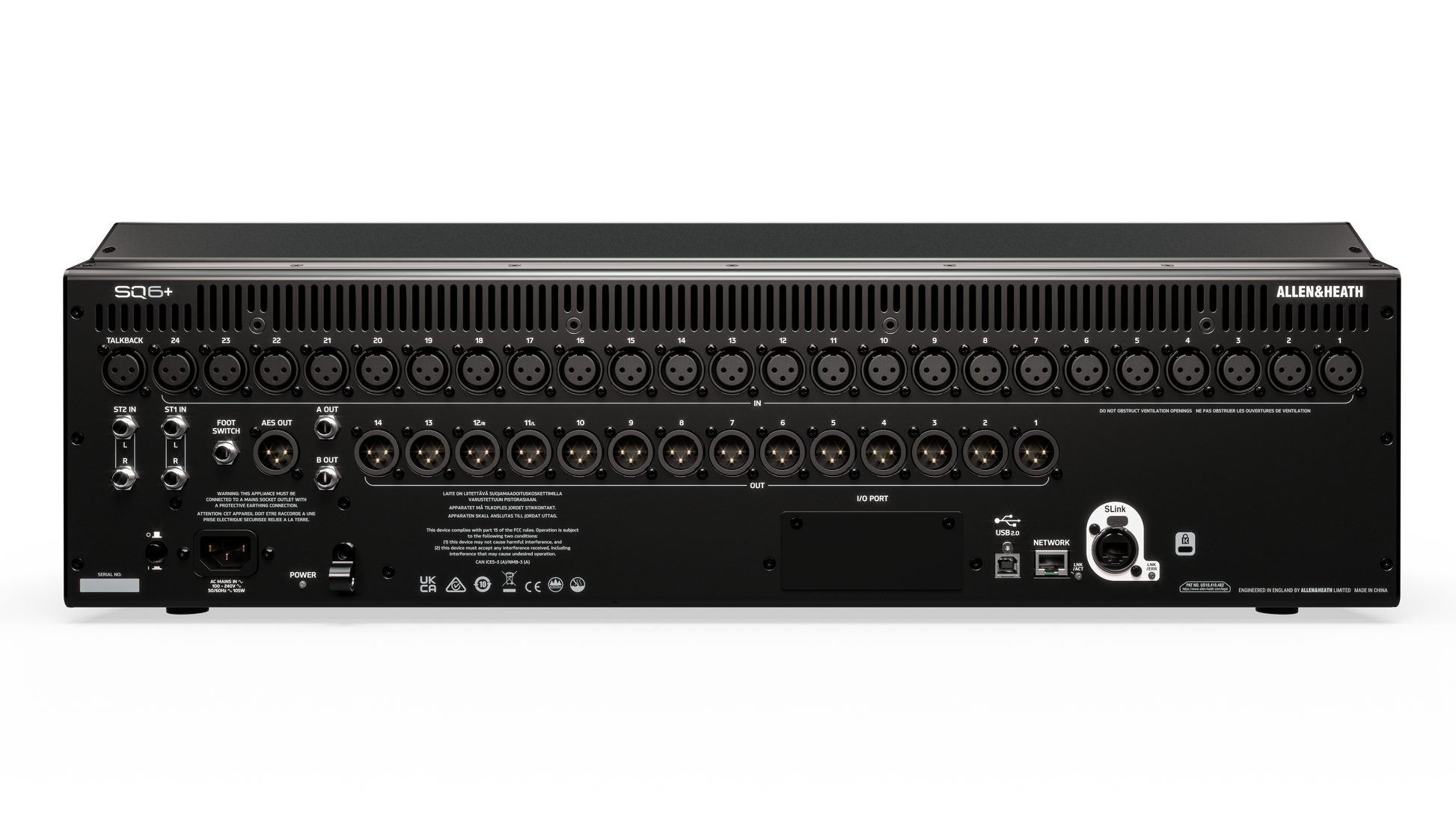

Analogue I/O

24x XLR Mic/Line Input Sockets

14x XLR Output Sockets

3x Stereo Line Input Sockets (4x TRS ¼” sockets, 1x 3.5mm TRS socket)

1x XLR Talkback Socket

2x TRS Output Sockets

Stereo Headphone Output

Control

25x 100mm Motorised Faders

16x SoftKeys

4x SoftRotaries

6x Channel Strip Layers

9” Touchscreen with dark GUI

Configurable single/dual Footswitch Connection

Remote control via free apps – Windows/Mac

Apps

SQ+ MixPad and SQ+ 4You apps allow remote mixing and personal monitor control from iOS and Android devices.

AMM

Automatic Mic Mixing supports two independent 24-channel AMMs or a single 48-channel AMM configuration.

Built for the Real World

Robust all-metal chassis construction with carbon-on-graphite finish and 2-year manufacturer’s warranty as standard.
