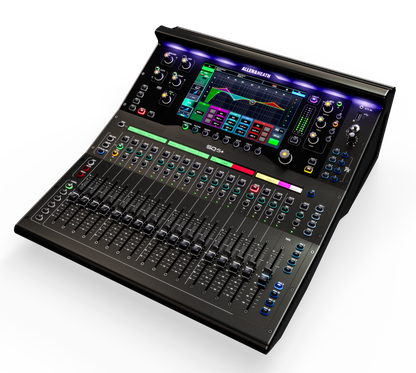

Allen & Heath SQ5+ 48 Channel / 44 Bus / 17 Fader Digital Mixer with RackUltra FX

FREE SQ+ PlusPack (Valued at $1200 AUD)

Every SQ+ customer who registers their SQ+ mixer and signs up to the Allen & Heath newsletter will receive the following free inclusions:

• Tube Stage Preamp Add-On FREE
• SQ+ PlusPack (all DEEP & standard FX Add-Ons) FREE

Important: This is an introductory offer only. RackUltraFX Add-Ons are not included in PlusPack.

CLICK HERE TO REGISTER YOUR MIXER

SQ5+ Overview

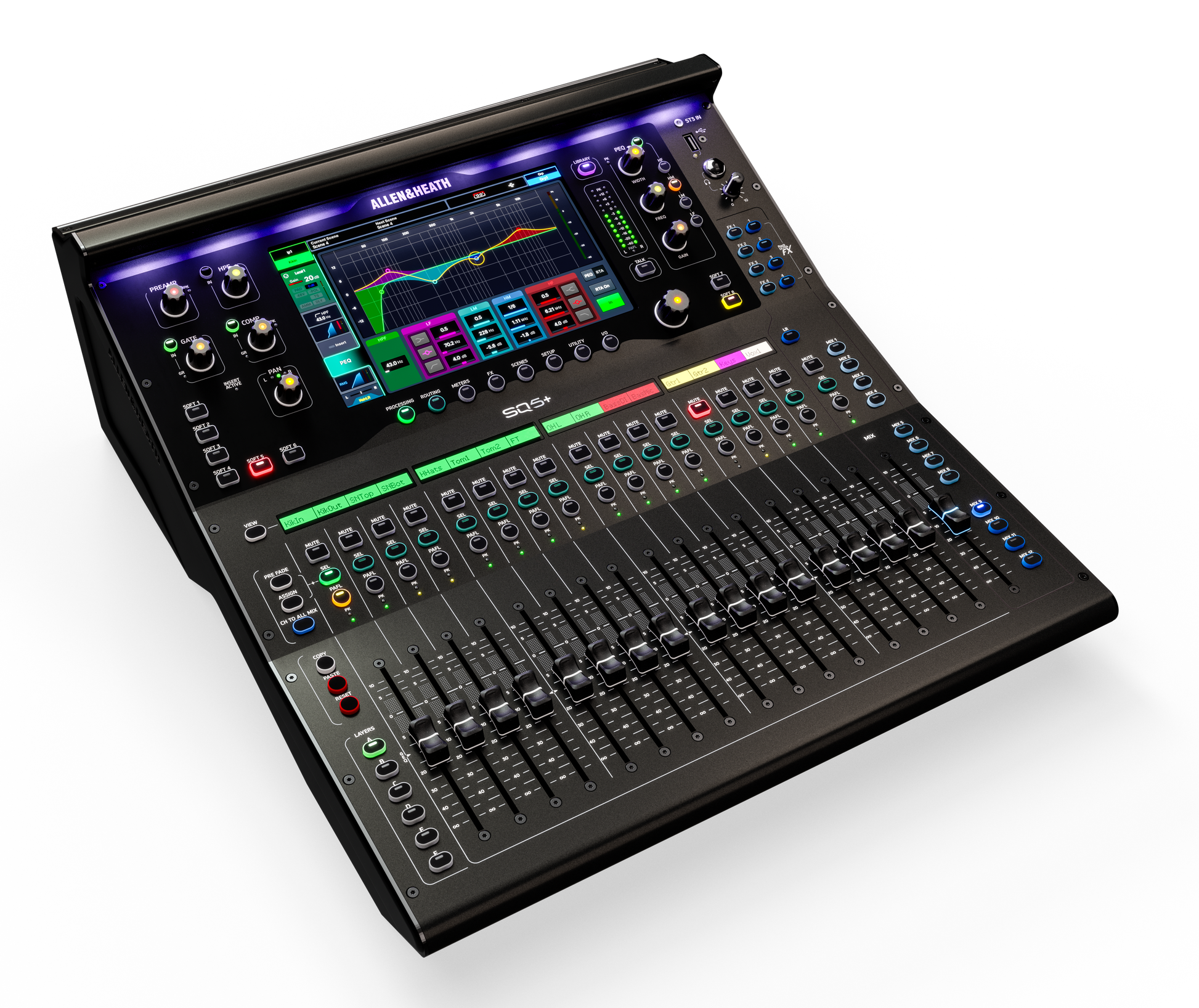

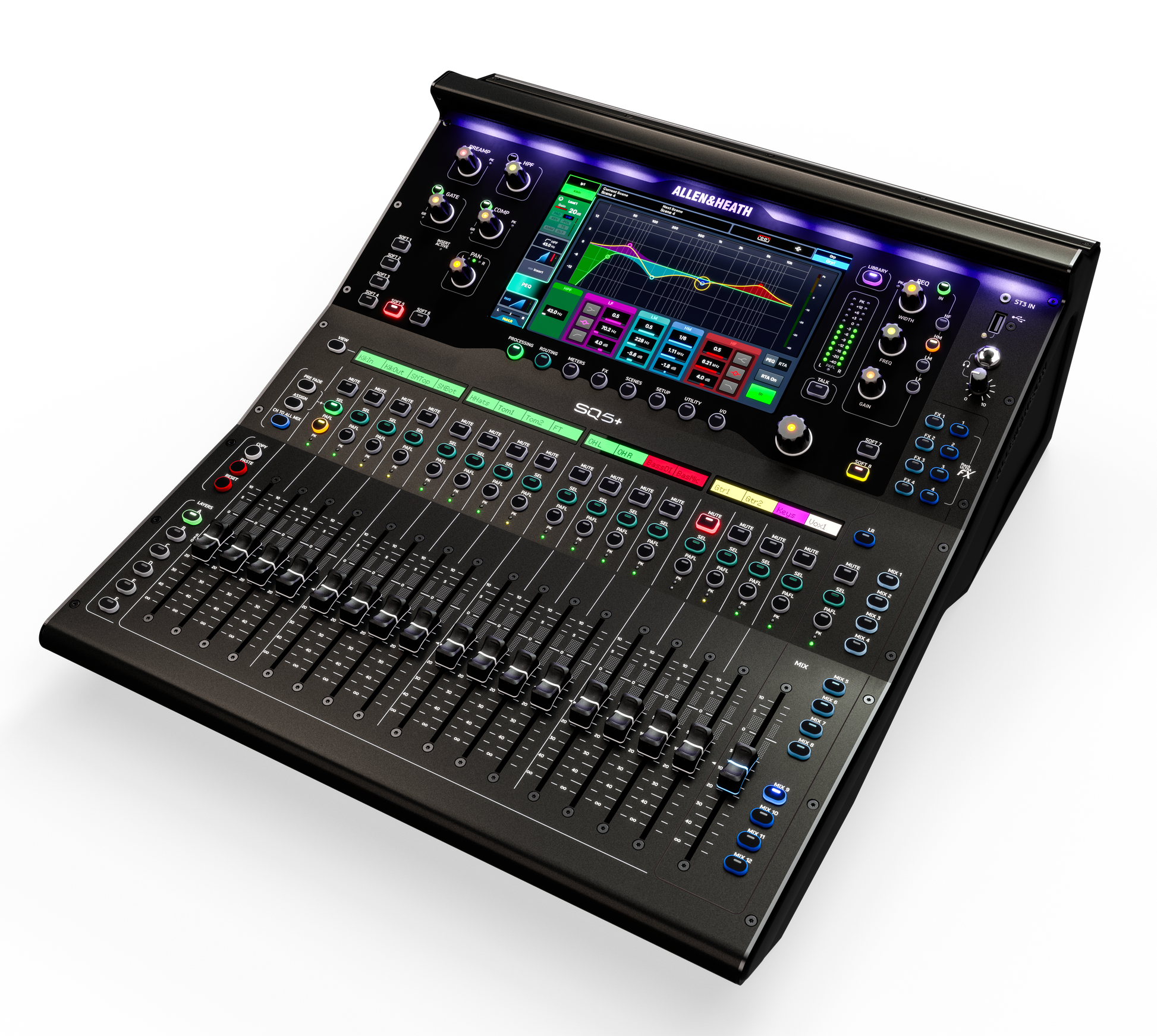

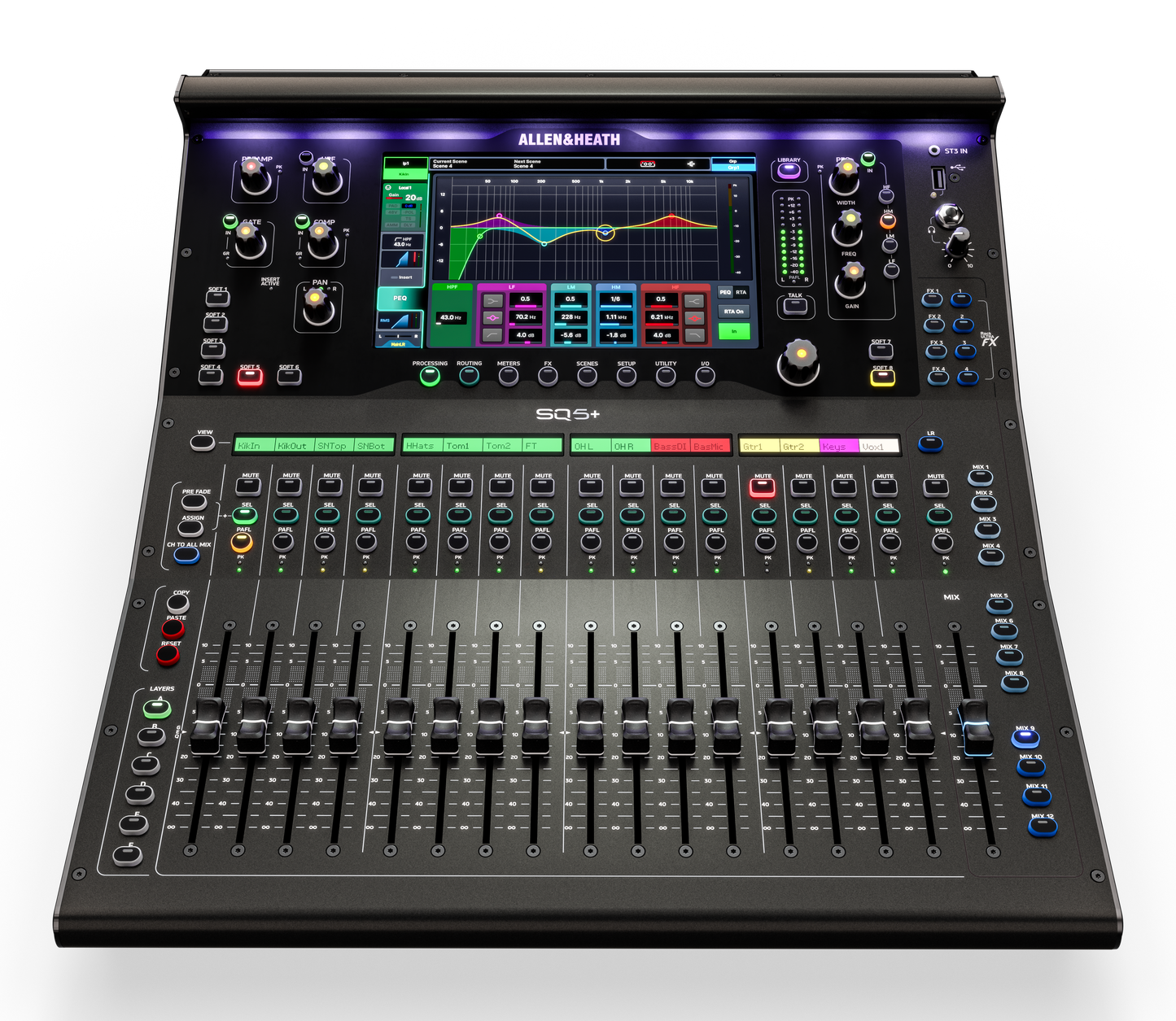

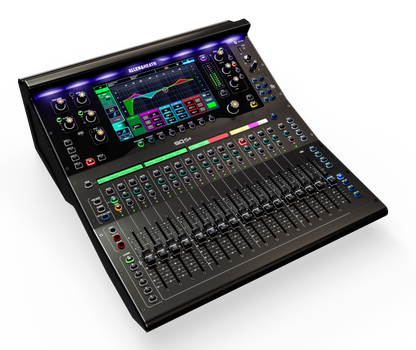

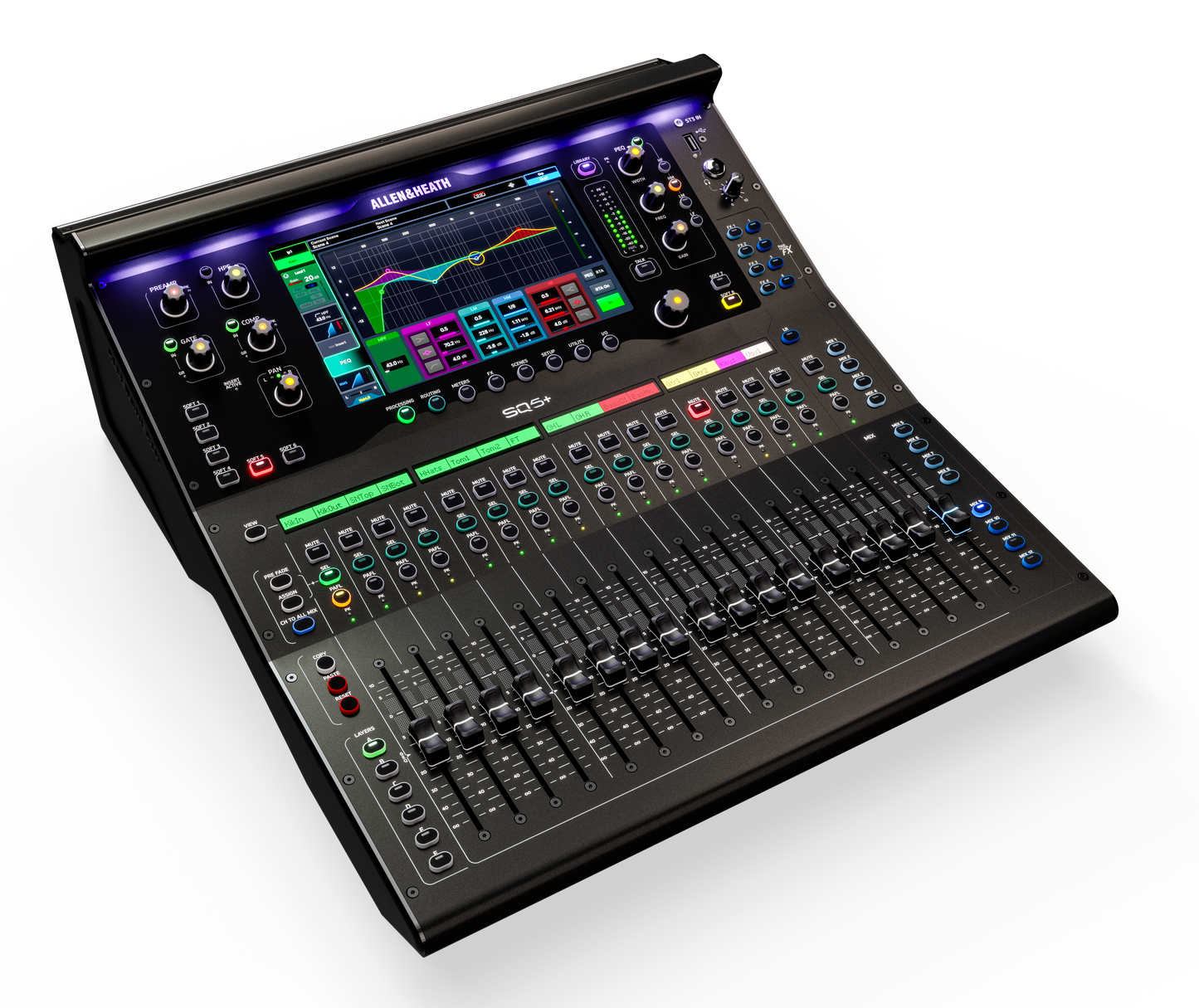

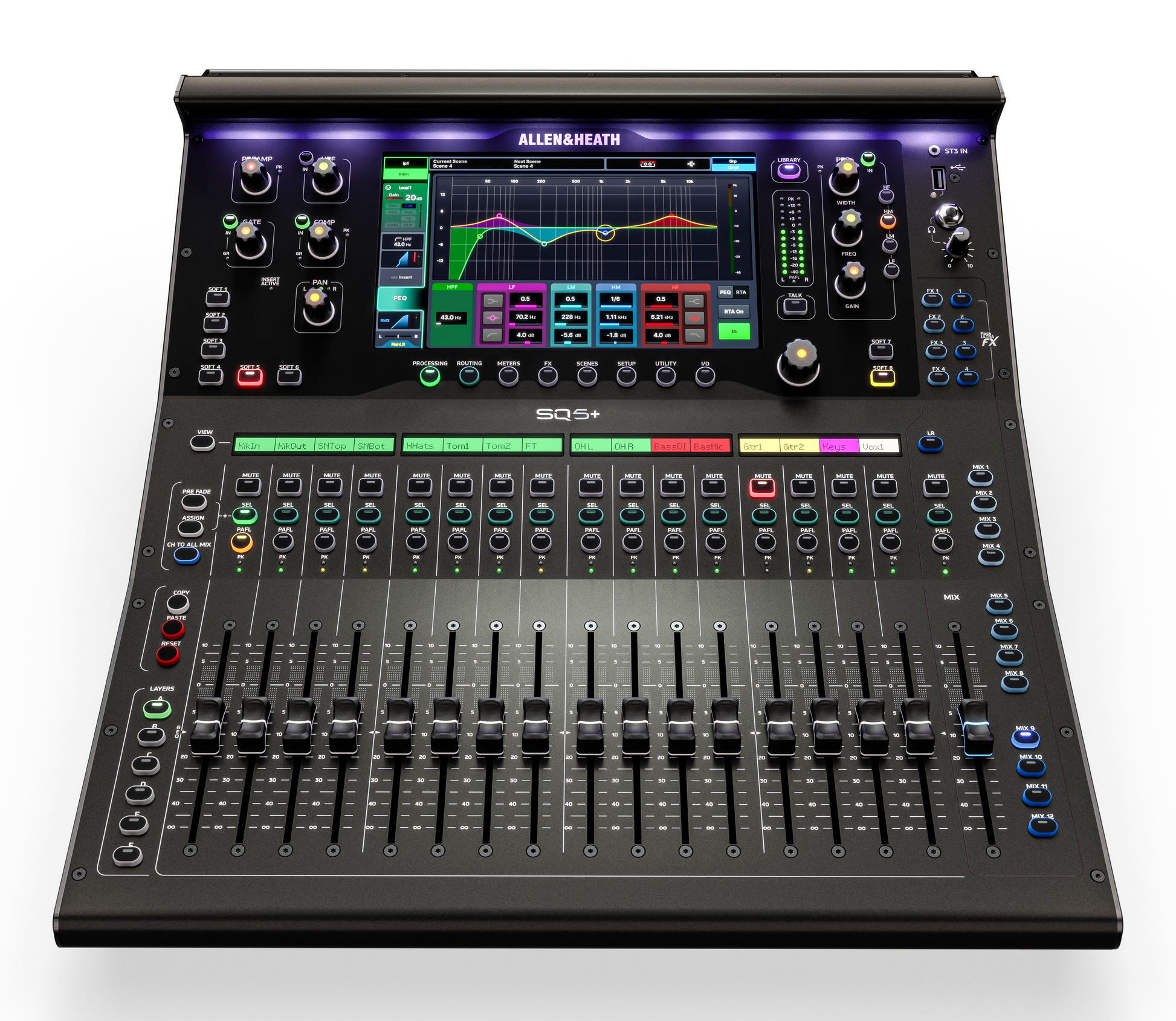

SQ5+ Compact and rack-mountable, the SQ5+ puts the full feature set into the smallest frame in the range. 17 motorised faders, 8 assignable SoftKeys and 4 built-in RackUltra FX engines give you flagship-tier processing and comprehensive hands-on control. Add the 19” rack kit and it’s as at home in a fixed installation as it is on the road.

Mixing Has Never Been Easier

A Bigger, Bolder Interface

SQ+ is centred around a responsive 9” touchscreen with an all-new dark GUI that is fast to navigate and easy to read in any mixing environment. Framed by high-grip illuminated encoders, it delivers an intuitive blend of visual feedback and hands-on control.

Drag-and-Drop Layout

Channels and mixes can be dragged and dropped to any strip, with custom naming and colour coding on the displays, letting you build a mixing environment that works for you.

At-a-Glance Metering

Each strip features our patented Chromatic channel metering system, giving you at-a-glance level indication down to -72dB thanks to LEDs with variable brightness and colour.

Accelerate Your Workflow

All SQ+ mixers feature assignable SoftKeys for quick access to the functions you use the most. The SQ6+ and SQ7+ also include assignable SoftRotaries for even more custom control.

World Class Processing & FX

Processing

Every input channel comes equipped with HPF, a super-fast gate with sidechain and filter, a freely assignable insert point, a musical 4-band parametric equaliser with RTA, and Peak/RMS compressor for control and shaping of levels and transients. Mixes include both a parametric and 28 band graphic EQ along with compressor as standard, all ready to switch in when required.

DEEP Processing

SQ+ supports the latest generation of DEEP processing add-ons – models of classic analogue hardware embedded directly into your channel and mix strips, adding no latency, and available on every channel simultaneously.

PlusPack

Register your SQ+ and sign up to the Allen & Heath newsletter to get SQ+ PlusPack – a bundle including every DEEP and RackExtra FX Add-On available at launch – free with your new mixer! (RackUltra FX available separately)

Read more about PlusPackGet PlusPack

Effects

SQ+ is equipped with 8 RackExtra FX engines, each with its own dedicated stereo return, giving you access to the acclaimed RackExtra FX suite, featuring emulations of legendary reverbs, gated reverbs, delays, modulators and more.

Four built-in RackUltra FX engines take SQ+ further, each with dedicated stereo sends and returns. First developed for the flagship dLive system, and proven on international tours, the RackUltra FX suite of add-ons brings premium reverbs, vocal tuning and pitch processors, distortion, saturation, and more to SQ+. The 4 engines can also run RackExtra FX for maximum flexibility.

Read more about EffectsGet RackUltra FX Pack

Recording & Playback

Interface

SQ+’s built-in USB audio interface enables easy multitrack recording, backing-track playback, livestreaming, and virtual soundcheck at up to 32×32 channels at both 96kHz and 48kHz. Class compliant and compatible with Mac and Windows with ASIO and WDM drivers available. You can also map faders, rotaries, channel keys and SoftKeys to control your favourite DAW using the Allen & Heath MIDI Control app.

SQ-Drive

The integrated SQ-Drive makes it quick and easy to capture or playback 16 channels (96kHz), 32 channels (48kHz), or a simple stereo mix, direct to a USB drive. No need for a laptop or DAW – just press record.

Connectivity & Expansion

SQ+ is designed to sit at the centre of whatever system you’re building, and to grow with it.

Everything I/O

The 128×128 Intelligent SLink port opens up the entire Allen & Heath Everything I/O ecosystem, connecting seamlessly to a wide range of remote stage boxes, expanders, and other Allen & Heath consoles.

Audio Networking

A dedicated I/O expansion slot supports optional cards for Dante, MADI, Waves and additional SLink connections, making SQ+ a natural fit for complex multi-format installs, FOH/monitor splits and broadcast setups.

SQ5+ Features

Audio and Processing

96kHz XCVI Core

48x Inputs to Mix

12x Stereo Aux/Group Mixes + LR

6x Mono/Linkable Matrix

Full Channel and Mix processing (HPF, PEQ/GEQ, Comp, Gate)

DEEP Processing ready

8x Rack Extra FX Engines with dedicated send and return channels

4x RackUltra FX Engines with dedicated send and return channels

Digital I/O

128×128 Intelligent SLink Port for Everything I/O expansion and connection to other A&H consoles

1x I/O Port for option cards (SLink, Dante, Waves and MADI cards available)

1x AES3 Stereo Digital Output Socket

USB Recording & Playback

USB A: 16 Channels @ 96kHz

USB A: 32 Channels @ 48kHz

USB B Interface: 32×32 @ 96kHz

USB B Interface: 32×32 @ 48kHz

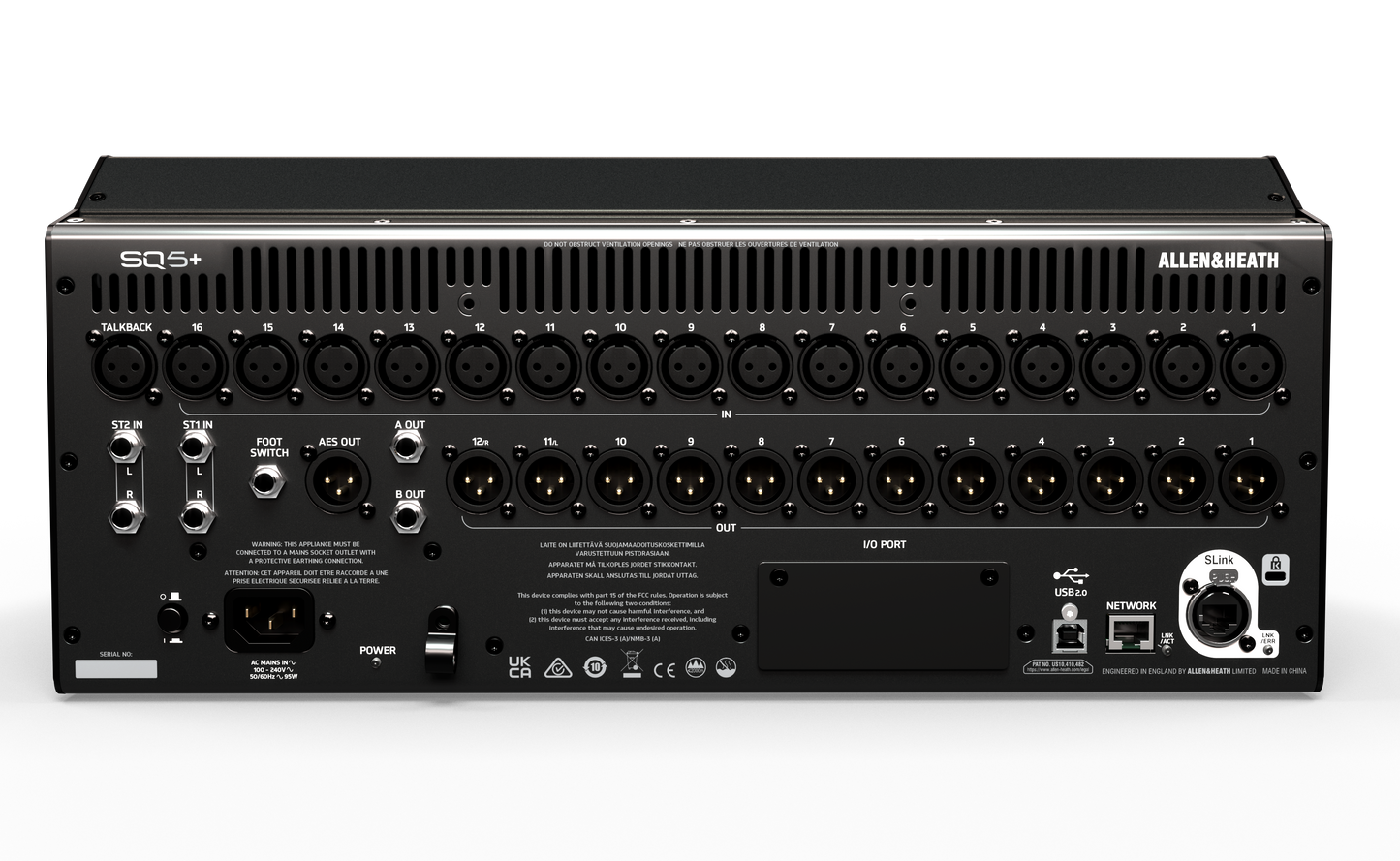

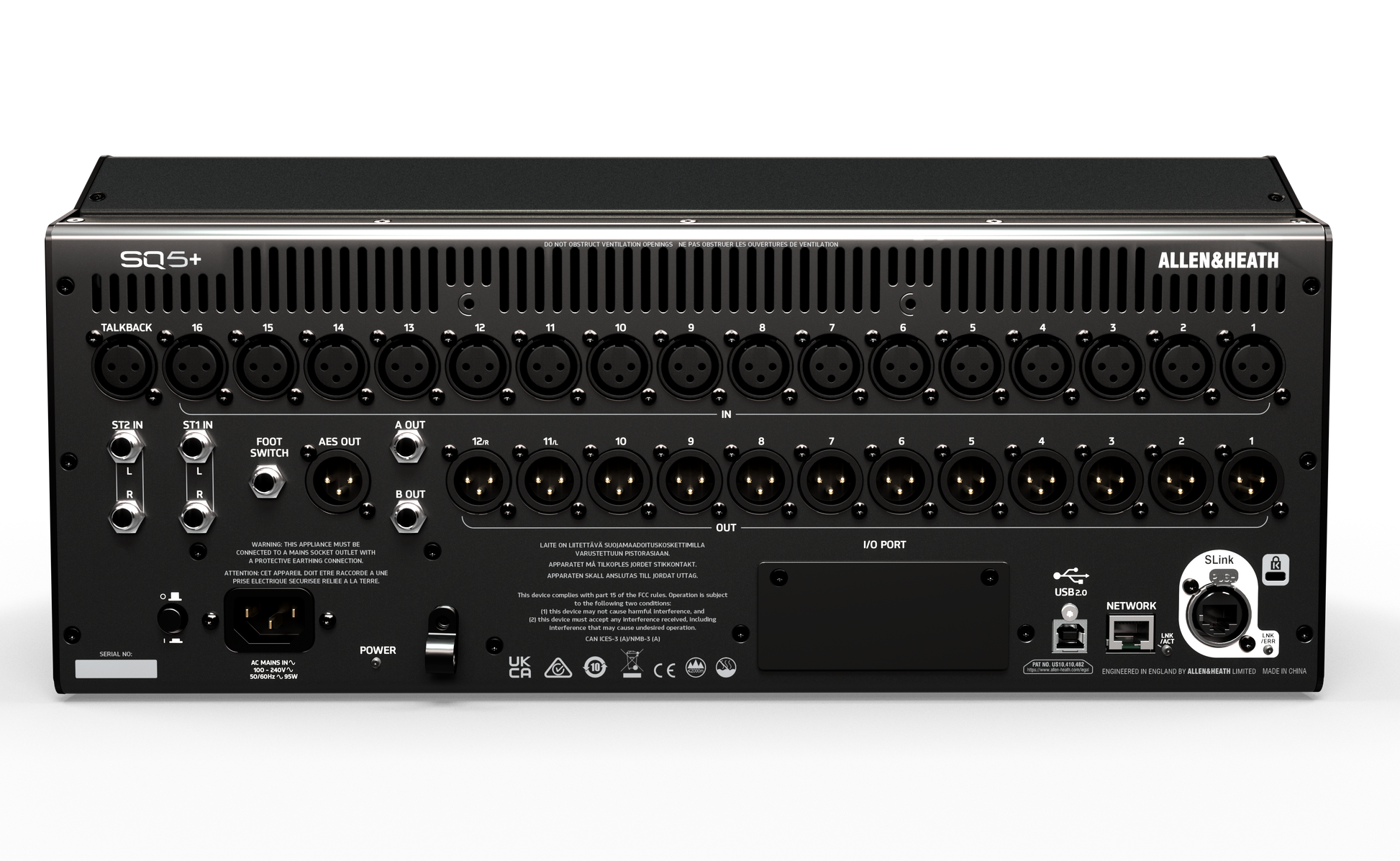

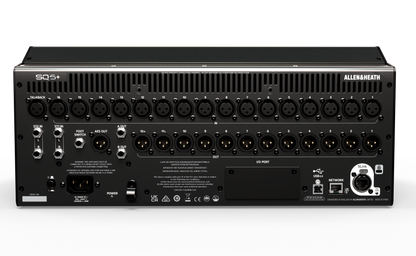

Analogue I/O

16x XLR Mic/Line Input Sockets

12x XLR Output Sockets

3x Stereo Line Input Sockets (4x TRS ¼” sockets, 1x 3.5mm TRS socket)

1x XLR Talkback Socket

2x TRS Output Sockets

Stereo Headphone Output

Control

17x 100mm Motorised Faders

8x SoftKeys

6x Channel Strip Layers

9” Touchscreen with dark GUI

Configurable single/dual Footswitch Connection

Remote control via free apps – Windows/MacOS/iOS/Android

19” Rack Mountable (optional kit available)

Apps

SQ+ MixPad

SQ+ MixPad gives you the freedom to mix from anywhere in the venue, even if that’s not physically close to the mixer’s location. The app is available for free on iOS and Android.

SQ+ 4You

SQ+ 4You allows up to 8 performers to control their own monitor mixes from their Android or iOS devices, freeing the audio engineer to focus on the front-of-house sound.

AMM

Automatic Mic Mixing

SQ+’s advanced Automatic Mic Mixers make it a natural choice for mixing conferences, panel discussions, and broadcast applications. Two independent 24 channel AMM’s can run simultaneously for two separate zones or combine into a single 48 channel AMM for larger events.

Built for the Real World

The live environment is unforgiving, so SQ+ is built to take it.

A robust all-metal chassis provides the strength and rigidity to handle the rigours of touring and installation alike, while the new carbon-on-graphite finish with black and white knobs and fader caps gives it a sharp, contemporary look that holds up under real-world use. Every SQ+ comes backed by a 2-year manufacturer’s warranty as standard.
