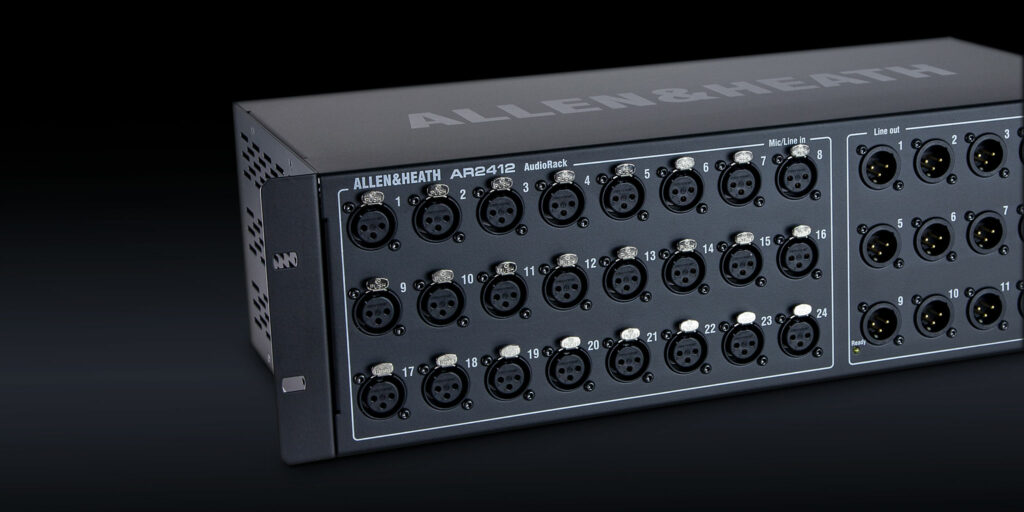

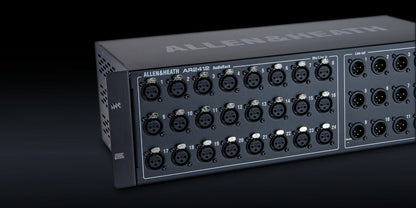

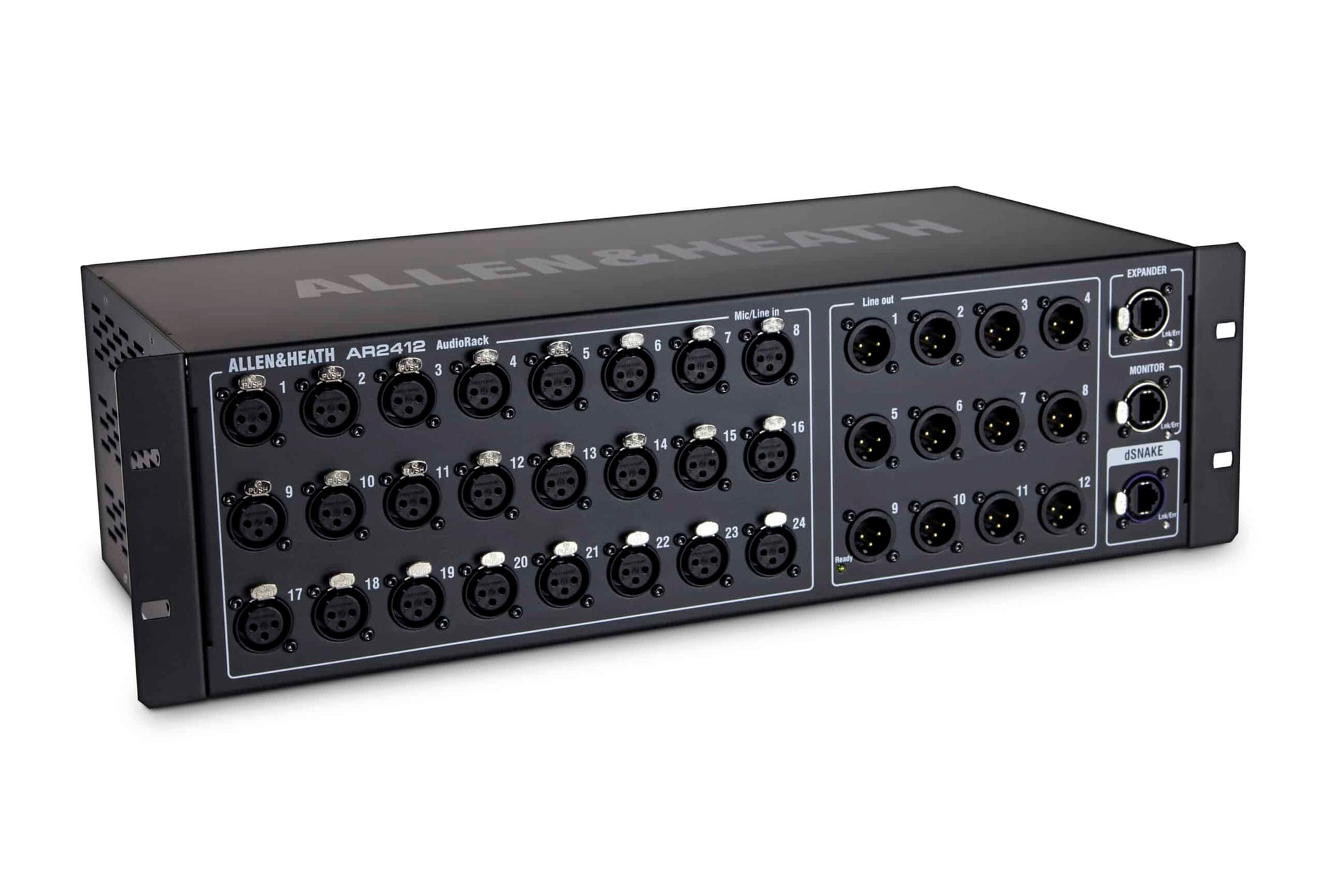

Allen & Heath AR2412 24 XLR in / 12 XLR Out Stage Box

The Allen & Heath AR2412 is a 24 input, 12 output AudioRack designed for use with Allen & Heath digital mixing systems. It provides remote audio I/O over a single Cat5 cable using Allen & Heath's dSNAKE protocol.

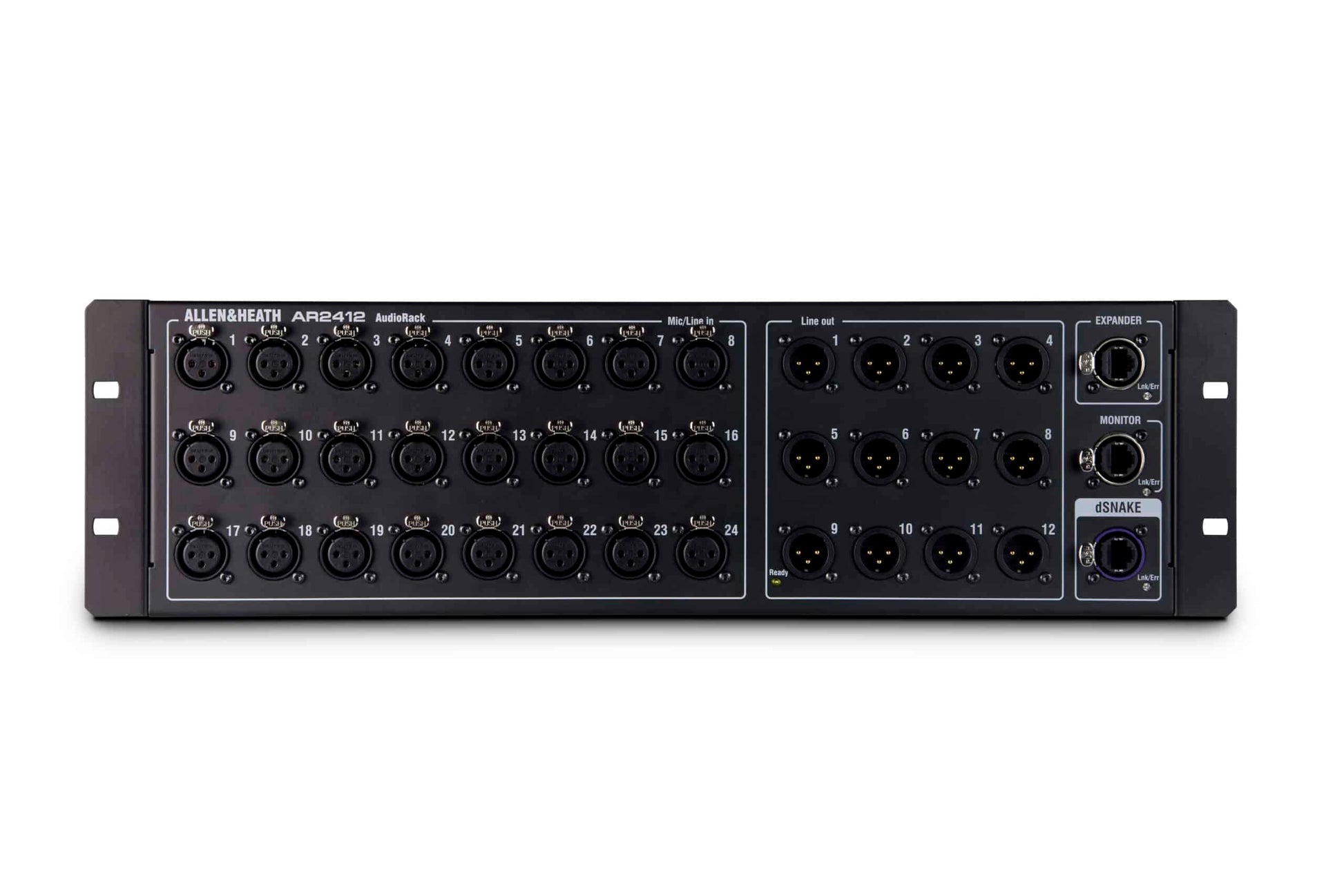

AR2412 provides 24 remote-controlled mic/line preamps and 12 XLR line outputs, with an additional Monitor port for connection to an Allen & Heath ME personal mixing system or compatible monitoring equipment. A dedicated Expander port allows connection of an AR84 or AB168 AudioRack for additional remote I/O.

Technical Specifications

• Inputs: 24 mic/line inputs on XLR
• Outputs: 12 line outputs on XLR
• Sample rate: 48kHz
• Connection: dSNAKE over Cat5
• Expander port: For connection of AR84 or AB168
• Monitor port: For Allen & Heath ME personal mixing system
