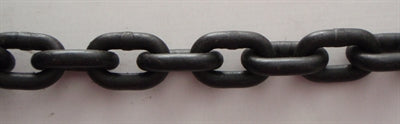

2m of Lifting chain AW-80-09 9mm diameter

Alloy chain GR80

• Alloy steel meterial, heat treated and load tested
• Safety Factor 4:1 (GR80) and 5:1 (GR100)
• Produced from quality alloy steel
• Toughter and more reliable for lifting applications
• Finish: Black matt

Specifications:

Inside Length ( E measurement on attached diagram ) - 27mm

Outside Width ( G measurement on attached diagram) - 29.25mm

Inside Width ( H measurement on attached diagram) - 12.20mm

Working load limit - 2.5 Ton

Max Load - 10 Ton

Weight App - 3 kg
