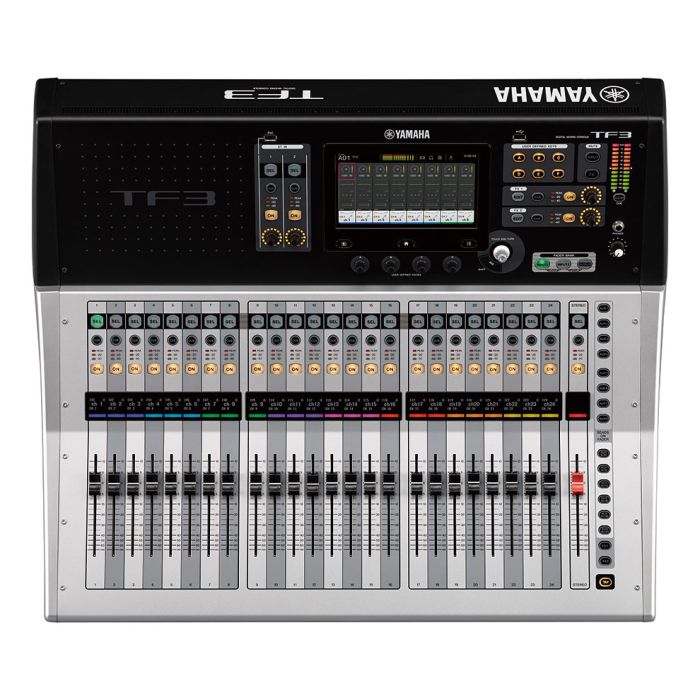

YAMAHA TF3 DIGITAL MIXER

Special Price A$4,095.00 Regular Price A$4,899.00

ONLY 1 LEFT!

SKU

TF3

YAMAHA TF3 DIGITAL MIXER

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Overview

25 motor faders (24 channels + 1 master)
48 input mixing channels (40 mono + 2 stereo + 2 return)
20 Aux (8 mono + 6 stereo) + Stereo + Sub buses
8 DCA groups with Roll-out
24 analog XLR/TRS combo mic/line inputs + 2 analog RCA pin stereo line inputs
16 analog XLR outputs
34 x 34 digital record/playback channels via USB 2.0 + 2 x 2 via a USB storage device
1 expansion slot for NY64-D audio interface card

More Information

Custom Stock Status

ONLY {qty} LEFT!

Specification

TF5, TF3, TF1

Outline		TF5	TF3	TF1
Fader Configuration		32 + 1 (Master)	24 + 1 (Master)	16 + 1 (Master)
Mixing Capacity	Input Channels	48 (40 mono + 2 stereo + 2 return)	48 (40 mono + 2 stereo + 2 return)	40 (32 mono + 2 stereo + 2 return)
	Aux Buses	20 (8 mono + 6 stereo)	20 (8 mono + 6 stereo)	20 (8 mono + 6 stereo)
	Stereo Buses	1	1	1
	Sub Buses	1	1	1
Input channel functions		8 DCA Groups	8 DCA Groups	8 DCA Groups
I/O	Inputs	32 mic/line (XLR/TRS combo) + 2 stereo line (RCA pin)	24 mic/line (XLR/TRS combo) + 2 stereo line (RCA pin)	16 mic/line (XLR/TRS combo) + 2 stereo line (RCA pin)
	Outputs	16 (XLR)	16 (XLR)	16 (XLR)
	Expansion slots	1	1	1
On-board processors	DSP	8 Effects + 10 GEQ	8 Effects + 10 GEQ	8 Effects + 10 GEQ
General specifications		TF5	TF3	TF1
Sampling frequency rate	Internal	48 kHz	48 kHz	48 kHz
Signal delay		Less than 2.6 ms, INPUT to OMNI OUT, Fs=48 kHz	Less than 2.6 ms, INPUT to OMNI OUT, Fs=48 kHz	Less than 2.6 ms, INPUT to OMNI OUT, Fs=48 kHz
Fader		100 mm motorized, Resolution = 10-bit, +10 dB to –138 dB, –∞ dB all faders	100 mm motorized, Resolution = 10-bit, +10 dB to –138 dB, –∞ dB all faders	100 mm motorized, Resolution = 10-bit, +10 dB to –138 dB, –∞ dB all faders
Total harmonic distortion		Less than 0.05% 20 Hz–20 kHz @+4 dBu into 600 , INPUT to OMNI OUT, Input Gain=Min. (Measured with a –18 dB/octave filter@80 kHz)	Less than 0.05% 20 Hz–20 kHz @+4 dBu into 600 , INPUT to OMNI OUT, Input Gain=Min. (Measured with a –18 dB/octave filter@80 kHz)	Less than 0.05% 20 Hz–20 kHz @+4 dBu into 600 , INPUT to OMNI OUT, Input Gain=Min. (Measured with a –18 dB/octave filter@80 kHz)
Frequency response		+0.5, –1.5 dB 20 Hz–20 kHz, refer to +4 dBu output @1kHz, INPUT to OMNI OUT	+0.5, –1.5 dB 20 Hz–20 kHz, refer to +4 dBu output @1kHz, INPUT to OMNI OUT	+0.5, –1.5 dB 20 Hz–20 kHz, refer to +4 dBu output @1kHz, INPUT to OMNI OUT
Dynamic range		110 dB typ., DA Converter, 107 dB typ., INPUT to OMNI OUT, Input Gain=Min.	110 dB typ., DA Converter, 107 dB typ., INPUT to OMNI OUT, Input Gain=Min.	110 dB typ., DA Converter, 107 dB typ., INPUT to OMNI OUT, Input Gain=Min.
Hum & noise level	Equivalent input noise	–128 dBu typ., Input Gain=Max. (Measured with an A-Weight filter)	–128 dBu typ., Input Gain=Max. (Measured with an A-Weight filter)	–128 dBu typ., Input Gain=Max. (Measured with an A-Weight filter)
Hum & noise level	Residual output noise	–85 dBu, ST master off (Measured with an A-Weight filter)	–85 dBu, ST master off (Measured with an A-Weight filter)	–85 dBu, ST master off (Measured with an A-Weight filter)
Crosstalk		–100 dB (Measured with a –30 dB/octave filter@22 kHz), adjacent INPUT/OMNI OUT channels, Input Gain=Min.	–100 dB (Measured with a –30 dB/octave filter@22 kHz), adjacent INPUT/OMNI OUT channels, Input Gain=Min.	–100 dB (Measured with a –30 dB/octave filter@22 kHz), adjacent INPUT/OMNI OUT channels, Input Gain=Min.
Power requirements		100–240 V 50/60 Hz	100–240 V 50/60 Hz	100–240 V 50/60 Hz
Power consumption		120 W	110 W	100 W
Dimensions	W	866 mm (34.1in)	716 mm (28.2in)	510 mm (20.1in)
	H	225 mm (8.9in)	225 mm (8.9in)	225 mm (8.9in)
	D	599 mm (23.6in)	599 mm (23.6in)	599 mm (23.6in)
Net weight		20.0 kg (44.1lb)	17.0 kg (37.5lb)	13.5 kg (29.8lb)
Accessories		Quick Guide, Power Cord, Nuendo Live	Quick Guide, Power Cord, Nuendo Live	Quick Guide, Power Cord, Nuendo Live
Options		Expansion Card, Foot Switch (FC5)	Expansion Card, Foot Switch (FC5)	Rack-mount Kit RK5014, Expansion Card, Foot Switch (FC5)
Others		Operating temperature range: 0–40 °C, Storage temperature range: -20–60 °C	Operating temperature range: 0–40 °C, Storage temperature range: -20–60 °C	Operating temperature range: 0–40 °C, Storage temperature range: -20–60 °C

RECORDING/ PLAYBACK

PC/Mac (USB2.0)	Recording 34 tracks, Playback 34 tracks
USB Storage Device	Recording 2 tracks (USB hard drive/ SSD)*, Playback 2 tracks (USB hard drive/ SSD/ thumb drive)

*Please note - USB thumb drives are not supported by TF for recording purposes. Please refer to this link for compatible hard drives.

ANALOG INPUT CHARACTERISTICS

Input Terminals	GAIN	Load Impedance	For Use With Nominal	Input Level			Connector	balanced / Unbalanced
Input Terminals	GAIN	Load Impedance	For Use With Nominal	Sensitivity*1	Nominal	Max. before clip	Connector	balanced / Unbalanced
INPUT1-32 (TF5) INPUT1-24 (TF3) INPUT1-16 (TF1)	+66dB	7.5K Ω	50-600 Mics or 600 Lines	-82dBu (61.6V)	-62dBu (0.616mV)	-42dBu (6.16mV)	Combo Jack (XLR-3-31 type 2 or TRS phone 3)	Balanced
INPUT1-32 (TF5) INPUT1-24 (TF3) INPUT1-16 (TF1)	-6dB	7.5K Ω	50-600 Mics or 600 Lines	-10dBu (245mV)	+10dBu (2.45V)	+30dBu (24.5V)	Combo Jack (XLR-3-31 type 2 or TRS phone 3)	Balanced
ST IN 1,2	—	10k	600 Lines	-30dBV (31.6V)	-10dBV (316mV)	+10dBV (3.16V)	RCA Pin Jack	Unbalanced

*1. Sensitivity is the lowest level that will produce an output of +4dBu (1.23V) or the nominal output level when the unit is set to maximum gain. (All faders and level controls are at maximum position.)
*2. 1: GND, 2: HOT, 3: COLD
*3. Tip: HOT, Ring: COLD, Sleeve: GND
*4 In these specifications, 0dBu = 0.775Vrms.
*5.+48V DC (phantom power) can be supplied to INPUT XLR type connectors via each individual software controlled switch.

ANALOG OUTPUT CHARACTERISTICS

Output Terminals	Source Impedance	For Use With Nominal	GAIN SW	Output Level		Connector	balanced / Unbalanced
Output Terminals	Source Impedance	For Use With Nominal	GAIN SW	Nominal	Max. before clip	Connector	balanced / Unbalanced
OMNI OUT 1-16	75Ω	600 Lines	“+24dBu” position (default)	+4dBu (1.23 V)	+24dBu (12.3 V)	XLR-3-32 type *1	Balanced
PHONES *5	100Ω	40 Phones	—	3mW	75mW	Stereo Phone Jack (TRS) *2	Unbalanced

*1.1: GND,2: HOT, 3: COLD
*2 Tip: LEFT, Ring: RIGHT, Sleeve: GND
*3 In these specifications, 0dBu = 0.775Vrms.
*4 All output DA converters are 24bit, 128times oversampling.
*5 The position of the level control is lowered by 16dB from the maximum.

DIGITAL INPUT/OUTPUT SPECIFICATIONS

Terminals	Format	Data length	Audio	Connector
USB (TO HOST)	USB	24bit	34ch input / 34ch output, PCM	USB (B type)
iPad	USB	—	Playback: MP3 or WAV file data / Record: WAV file data	USB (A type)

CONTROL I/O SPECIFICATIONS

Terminals	Format	Level	Connector
NETWORK	IEEE802.3	10BASE-T/100Base-TX	RJ-45
FOOT SW	—	—	TS Phone

TF1 Video

Manufacturer

YAMAHA

Package

1 Pack
