*NOTE: Yamaha have also created a DXS XLF Series with Dante Networking capability.

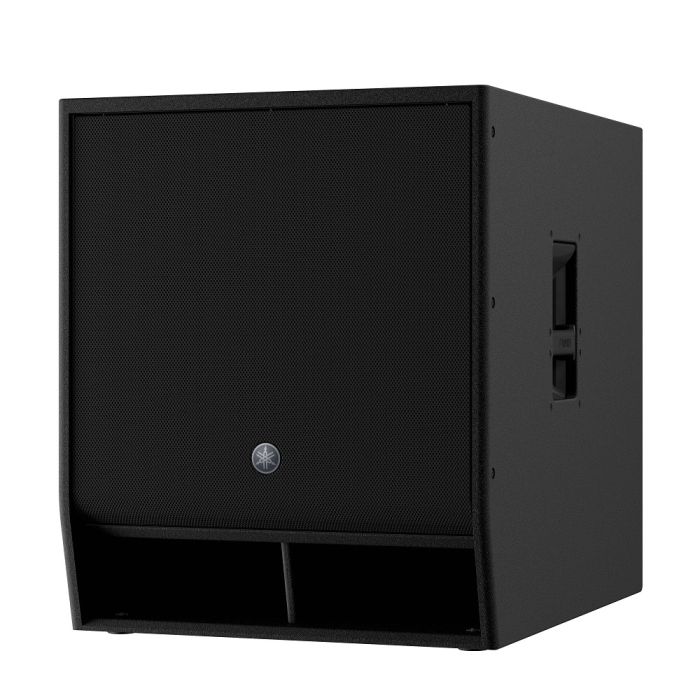

Yamaha DXS XLF - Flexible, Powerful, Road-Ready
Powerful DSP for flexible control
Like the full-range DZR models, the DXS XLF subwoofers are also driven by 96kHz high power DSP processors and utilize the dynamic EQ. Onboard D-XSUB LF processing gives you total management of your lower frequencies with NORMAL mode set for ideally balanced low-frequency response, while BOOST mode provides a tighter and more focused bass with some extra punch. XTENDED LF mode drops the low-end frequencies down even further for thunderous bottom end that delivers a low frequency extension unheard of from a cabinet of this size. Usually the higher the output, the more difficult it is to manage low frequency energy directivity, and significant stage-side sound pressure levels can seriously sabotage your monitoring, but with DXS XLF setups consisting of two or more subwoofers, selecting the Cardioid Mode effectively decreases the sound pressure on stage while increasing the bottom-end output directed towards the audience, resulting in a much cleaner stage monitoring environment. Without a doubt, your DZR full-range system will reach new performance heights when used with the pronounced, powerful lows of DXS XLF active subwoofers.
Acoustics and Utility
New Yamaha proprietary transducers with a durable die cast aluminum frame and 4” voice coil are crucial to achieving such impressive low frequency response, even at the highest output levels. A dual damper also helps to realize extraordinarily high linearity of the low frequencies by mitigating unwanted vibration during extreme output levels.
Durable, Portable, and Road-Ready
DXS XLF enclosure exteriors feature a durable Polyurea coating with extremely high damage resistance to protect the cabinet from scratches, bumps, or severe weather conditions, maintaining a professional appearance for years to come. Additionally, the new, easy-to-grip aluminum handle, optional SPW1 wheel kit, and SPCVR speaker covers provide additional safety, portability, and peace of mind when you’re on the road.
Key Product Features
Powered 18” subwoofer with 4” Voice Coil
Maximum 136dB SPL and 30Hz-150Hz frequency range is ideal for today’s sound engineering demands
High power 1600W Class-D amplifier module
96kHz DSP for true high-definition sound with super low latency
Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
Equipped with D-XSUB processing and cardioid mode capability
Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
Optional speaker cover (SPCVR-DXS18X) and wheel kit (SPW-1)
