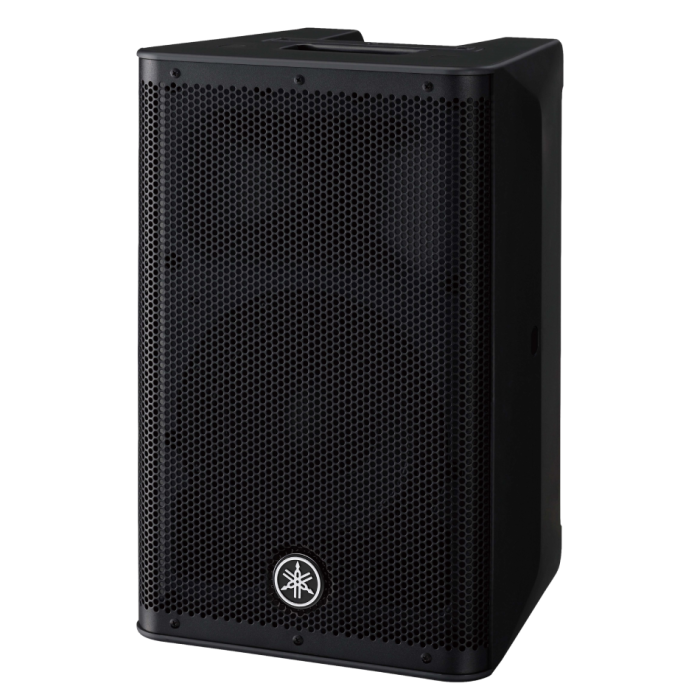

DXR8MKII
The most compact of the DXR mkII Series speakers, the DXR8mkII makes the most of its 1100W of power, delivering extremely high output while maintaining outstanding resolution. Adding a DXS12mkII subwoofer gives you an ultra-compact high-power SR system.
Since its inception, the DXR Series has long signified a confluence of raw power and technological innovation that reliably harnesses and delivers impressively high output with superior quality and clarity. The DXR mkII Series powered loudspeakers are the newly upgraded models of the series that add even more SPL and feature a larger, yet much lighter 1.75” Neodymium HF compression driver for extremely clear voice reproduction and musicality. Once again our team worked in tight collaboration with touring loudspeaker specialists NEXO, adding crucial insight and expertise that led to design improvements based on the ever-evolving demands of sound reinforcement professionals.
Whether for fixed applications or mobile live performances - whatever direction you want to take your sound - the DXR mkII Series is up to the task, combining raw power with our own proprietary advanced DSP functions for all the reliability and outstanding clarity you’ve come to expect from the DXR Series… only MORE.
Buy from our wide range of powered speakers online.
Custom Stock Status | Call for availability | ||||||||||||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Specification | Specifications
|
||||||||||||||||||||||||||||||||||||||||||||||
Manufacturer | Yamaha |
||||||||||||||||||||||||||||||||||||||||||||||
Package | 1 Pack |
Brand | Yamaha |
---|---|
Gross Shipping Weight - Volumetric (kgs) | 16.9000 |
Speaker Size (Inches) | 8" |
Vertical Coverage Angle | 60 Degrees |
Output Power - Peak (Watts) | 1100 |
Output Power - RMS (Watts) | 700 |
Depth | 280 |
Height | 458 |
Weight | 12.8kg |
Width | 280 |
Signal Processing (DSP) | Yes |
Mounting Options | Floor Wedge, Fly , Pole, Tilted Pole |
Maximum Peak SPL | 130dB SPL |
Analog Inputs | 1x XLR , 1x Stereo 1/4-inch TRS, 1x Stereo RCA, 1 XLR Thru (Parallel with Input 1) |
Analog Outputs | 1x XLR Link Out |
Frequency Range | 57Hz - 20kHz |
Speaker Type | Powered |
Cabinet Type | ABS |
HF Driver Size | 1.75-inch |
Horizontal Coverage Angle | 90° |
LF Driver Size | 8-inch cone, with 2-inch voice coil |
UPC | 4957812643474 |
Manufacturer Model Number | DXR8MKII |
