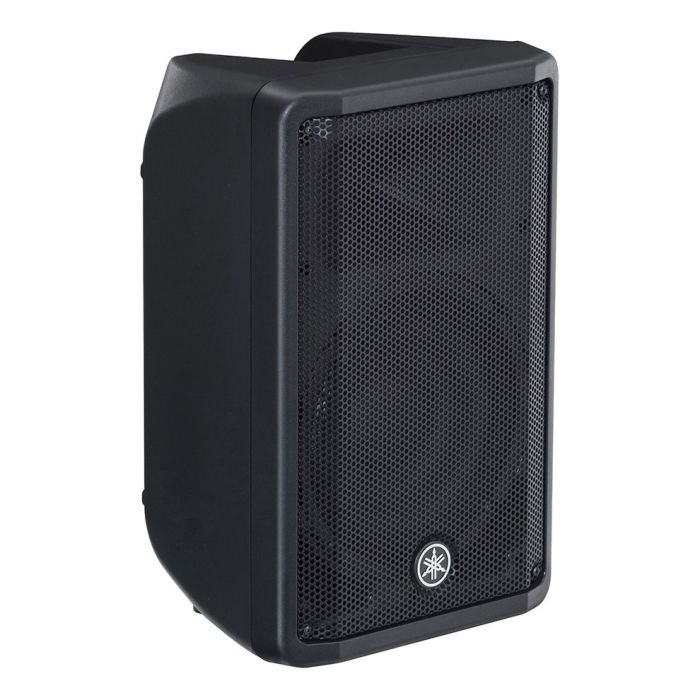

YAMAHA CBR12 12” 2-WAY PASSIVE LOUDSPEAKER
Availability: Available
YAMAHA
175W RMS
he CBR Series is Yamaha's newest lineup of passive loudspeakers that are capable of delivering high quality sound with impressive power, while offering exceptional portability. CBR Series loudspeakers employ custom designed transducers and are tuned by precise adjustment of an internal passive network.
The new models also feature a highly responsive LF unit and a protection circuit that limits excessive input to the HF driver, which ensure reliable operation even when pushed to their limit. Featuring the same versatile enclosure design as the DBR Series and equipped with fast and easy connectivity, CBR loudspeakers can deliver high-output, high-resolution sound ideal for front-of-house, floor monitoring, or rigged applications.
Visit PA Speakers page for more products.
| Specification | Speaker type2-way Speaker, Bass-reflex TypeFrequency range (-10dB)48 Hz - 20 kHzNominal coverageH90°V60°ComponentsLF12" Cone, 2" Voice Coil (Ferrite Magnet)HF1.4" Voice Coil, Compression Driver (Ferrite Magnet)Crossover2.1 kHzPower ratingNOISE175WPGM350WPEAK700WNominal impedance8ΩSPLSensitivity (1W; 1m on axis)96dB SPLPeak (Calculated)125 dB SPLI/O connectors1/4" Phone x 1, speakON NL4MP x 1Cabinet materialPlasticFinishBlackHandleSide x 2Flying and mounting hardwareBottom x 2, Rear x 1 (Fit for M8 x 15mm Eyebolts)Pole socketΦ35 mm Bottom x 1DimensionsW376mm (14.8")H601mm (23.7")D348mm (13.7")Net weight13.9 kg (30.6 lbs)AccessoriesOptional Speaker Bracket: BBS251, BCS251, BWS251-300, BWS251-400 |
|---|---|
| Manufacturer | YAMAHA |
| Package | 1 Pack |
Speaker type2-way Speaker, Bass-reflex TypeFrequency range (-10dB)48 Hz - 20 kHzNominal coverageH90°V60°ComponentsLF12" Cone, 2" Voice Coil (Ferrite Magnet)HF1.4" Voice Coil, Compression Driver (Ferrite Magnet)Crossover2.1 kHzPower ratingNOISE175WPGM350WPEAK700WNominal impedance8ΩSPLSensitivity (1W; 1m on axis)96dB SPLPeak (Calculated)125 dB SPLI/O connectors1/4" Phone x 1, speakON NL4MP x 1Cabinet materialPlasticFinishBlackHandleSide x 2Flying and mounting hardwareBottom x 2, Rear x 1 (Fit for M8 x 15mm Eyebolts)Pole socketΦ35 mm Bottom x 1DimensionsW376mm (14.8")H601mm (23.7")D348mm (13.7")Net weight13.9 kg (30.6 lbs)AccessoriesOptional Speaker Bracket: BBS251, BCS251, BWS251-300, BWS251-400
