Availability: Available
WHARFEDALE

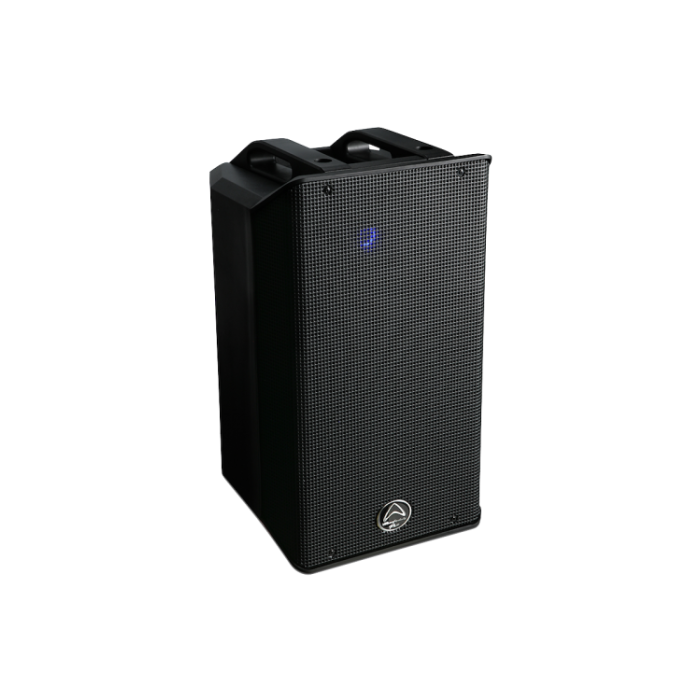

TYPHON - Pronounced - “TYF—ON”
Simply pair your Bluetooth audio source (such as a smart phone or laptop) with a Typhon-AX12-BT and thats it! High quality aptX streaming makes connection easy.
Typhon-AX12-BT however also features a STEREO LINK mode. This allows two Typhon-AX12-BT's to communicate with each other to create a stereo pair.
FLAT : The Flat mode is ‘the truth’. This mode is ideal for when connecting guitar effects processors directly to a Typhon-AX12. Full Range, Flat Response. Simply YOUR sound.
MONITOR ; This mode rolls of low frequencies which are not needed when Typhon-AX12 is on the floor. High frequencies are also attenuated to reduce risk of feedback.
BASS ; By pushing the bass frequencies, this mode is ideal when Typhon-AX12 is being used at lower volumes. It delivers a more powerful sound without having to turn the volume up.
PUNCH ; A ‘crisp’ and ‘tight’ DSP mode which gives the impression of power and tightness. Use this when you really need to cut through.
Bi-amplification means that each amplifier is perfectly matched to the driver it is connected to. This leads to more defined sound quality with crisper highs and more impressive lows.
The efficiency of the amplifier stages means that Typhon uses convection cooling and has no need for an internal fan. This results in a more reliable product with quieter operation.
The custom compression driver features a large 1.75” voice coil. This is coupled to a 100° x 80° waveguide for smooth HF dispersion.
The custom Wharfedale Pro 12” LF transducer has a newly designed ferrite core, uses flat coil windings to aid cooling, and features a moisture rejecting cone material which allows Typhon to be used in damp or humid conditions.
This injection moulded cabinet is carefully engineered to feature 5 carry handles making transportation easy and well balanced.
For on stage or for fixed installation, the carefully designed hardware of Typhon makes setup and positioning easy and effective.
Need to wall mount or fly? With 9 x M8 rigging points and a 35mm pole socket compatible with the WPB-2 bracket, Typhon fits almost anywhere.
This 'wedge' gives you the perfect angle for using onstage as a floor monitor, but has not compromised the fundamental shape and design of the Typhon cabinet.
XLR inputs, balanced jack inputs and even a balanced XLR Link output.
Sturdy switches control the powerful internal DSP and front HF driver LED.
| Specification | Key Features
SPECIFICATIONS
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | WHARFEDALE |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Package | 1 Pack |
Key Features
|
|
SPECIFICATIONS
| Model Name | Typhon-AX12-BT |
| System type | Active 12" 2-way with Bluetooth |
| Frequency Response (+/-3dB) | 55Hz-20kHz |
| Frequency Range (-10 dB) | 50Hz-20kHz |
| Maximum SPL @ 1m | 129dB |
| Sensitivity @ 1W / 1m | 98dB |
| Low Frequency Transducer | |
| Size (mm / inches) | 305mm / 12" |
| Voice Coil Size (mm / inches) | 65mm / 2.5” |
| Rated Impedance | 4Ω |
| High Frequency Transducer | |
| HF Driver Type | Compression Driver |
| Coil Size (mm / inches) | 44mm/1.75" |
| Exit Size (mm / inches) | 25mm/1" |
| Diaphragm Material | Titanium |
| Rated Impedance | 8Ω |
| Nominal Coverage (H x V) | Hybrid Symmetry Horn 100° x 80° |
| Amplifiers | |
| Amplifier design | 2 x Class D |
| Power rating | 1440W Peak (1200W LF + 240W HF), 720W Continuous (600W LF + 120W HF) |
| DSP Controls | FLAT/MONITOR/BASS/PUNCH |
| Inputs | |
| Input - A | balanced |
| Input sensitivity | 775mV (0dBu) |
| Input connectors A/B | 2*XLR, 2*6.3mm jack |
| Input impedance | 20KΩ |
| Line output | Balanced XLR |
| Loop gain | 0dB |
| AC Power | 220~240VAC/100~120VAC 50/60Hz |
| Rigging | 9 x M8 threaded inserts |
| 35mm pole socket with lock screw | |
| 5 x carry handles | |
| Optional WPB-2 wall-mount bracket | |
| Enclosure | Injection moulded polypropylene |
| Grille material & finish | Full front - steel |
| Dimensions - Unpacked (mm / inches): | |
| Height | 558mm / 22.0" |
| Width front | 344mm / 13.6" |
| Width rear | 245mm / 9.6" |
| Depth | 340mm / 13.4" |
| Dimensions - Packed (mm / inches): | |
| Height | 645mm / 25.4" |
| Width front | 425mm / 16.7" |
| Width rear | 425mm / 16.7" |
| Depth | 419mm / 16.5" |
| Net Weight (kg / lbs) | 16.2kg / 35.64lbs |
| Gross Weight (kg / lbs) | 19.2kg / 42.24lbs |
