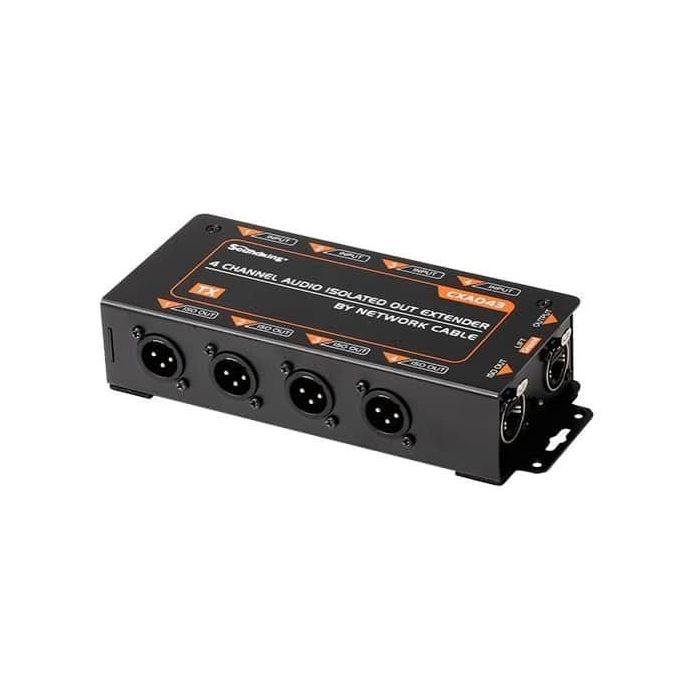

Soundking CXA043 4-channel audio isolated extender via Cat5 Cat6 cable

Features:

• INPUT: Balanced signal input.
• RJ45 OUTPUT: Sends four-channel audio signals over Cat 5 or Cat 6 Ethernet cable.
• LIFT/Ground: Helps to eliminate noise caused by grounding circuit.
• RJ45 ISO OUT: Isolated transmission of four-channel audio signals over Cat 5 or Cat 6 Ethernet cable.
• ISO OUT: Balanced signal isolated output.
• OUTPUT: Balanced signal direct output.
• RJ45 INPUT: Receives four-channel audio signal over Cat 5 or Cat 6 Ethernet cable.

The Soundking CXA043 is a 4-channel audio extender box that has 4x XLR-F inputs and 4x XLR-M isolated outputs. It is designed to work with the CXA044 which has 4x direct XLR-M outputs and 4x isolated XLR-M outputs. Both extender boxes have RJ45 network connector and grounding switches. Using a network cable, Cat5 or Cat6, instead of four audio cables, four channels of audio signal can be transferred by simply connecting a shielded Cat 5 or 6 ethernet cable between the two extender boxes. This also provides phantom power for microphone though direct output.

Both CXA043 and CXA044 units are equipped with isolation transformers, which eliminate the problem of AC noise cause by grounding circuit. The isolated through channels could be utailised for running to a side of stage monitor mixer via XLR cables, while the ethernet line going to FOH mixer. The Cat5 Ethernet cable transmission is widely applicable lightweight and economical, saving cost and making wiring much easier.

Specifications:

1. Audio circuit type: passive distributor with audio isolation transformer
2. Characteristic impedance 600ohms
3. Voltage limit: 500V AC/1mA/1sec
4. Frequency response 20Hz-20kHz (+/-0.5dB ref 1kHz 2k load)
5. Rated loss: <0.2dB (ref 1kHz 0dBu 2k load)
6. Total harmonic distortion <0.0006% at 1kHz
7. Housing material: metal
8. Housing size: 204mm X 82mm X 43mm
