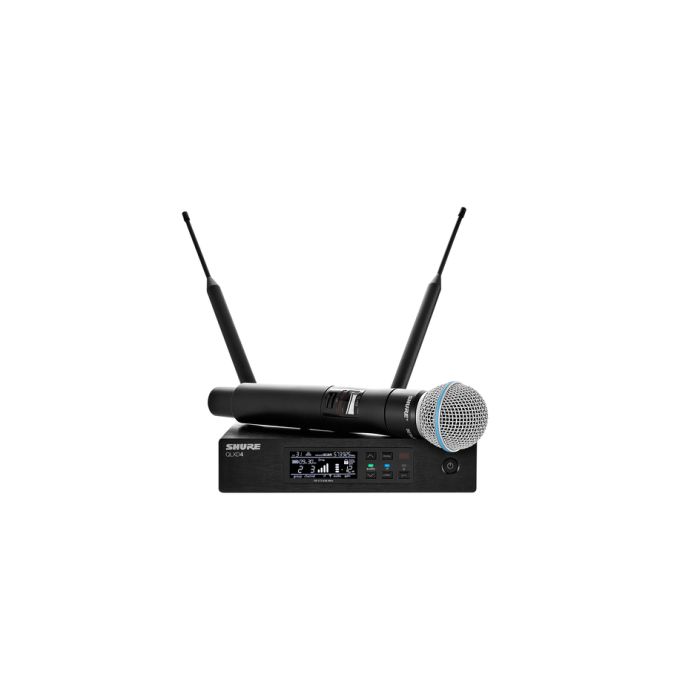

FEATURING A BETA 58A® HANDHELD WIRELESS MICROPHONE TRANSMITTER, QLXD24/B58 COMBINES PROFESSIONAL FEATURES WITH SIMPLIFIED SETUP AND OPERATION.
Includes BETA 58A, QLXD4, microphone clip, power supply, 2 AA batteries, battery contact cover, two 1/2 wave antennas, 2 BNC cables, zipper bag, 2 BNC bulkhead adapters, rackmount kit, and user guide
QLXD4 description
With transparent 24-bit digital audio quality and incredibly efficient RF spectrum usage, the QLXD4 Digital Wireless Receiver combines professional features with streamlined setup and operation.
Automatic scanning quickly finds open frequencies, and one-touch IR sync quickly deploys them to transmitters.
Ethernet networking enables networked channel scanning across multiple receivers and Wireless Workbench® software integration for remote control of receiver settings from a PC or Mac. Remote monitoring and control from iOS devices also is available via the ShurePlus™ Channels Mobile App.
FEATURES
64 MHz tuning bandwidth (region dependent)
More than 60 preset compatible channels per frequency band (region dependent)
Up to 17 compatible systems per 6 MHz TV channel; 22 systems per 8 MHz channel
Digital predictive switching diversity ensures solid RF connection
AES 256-bit encryption for secure wireless transmission
Up to 60 dB of adjustable audio gain
High-contrast LCD menu and controls with lockout feature
Audio and RF LED meters with peak indicator
Detachable ½ wave antennas
Mic / line switchable XLR output
¼" Instrument output
Durable aluminum construction with brushed finish
QLXD2/Beta58A description
The QLXD2/BETA58A Handheld Wireless Microphone Transmitter works with QLX-D Digital Wireless Systems.
Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.
FEATURES
24-Bit digital audio quality
Incredibly efficient RF spectrum usage
Quick syncing with a wireless receiver over IR at the push of a button
Clear, uninterrupted signal over the entire operating range
AES 256-bit encryption for secure transmission
Over 120 dB of dynamic range: no transmitter gain adjustment needed
1, 10 mW selectable RF output power
Optional Shure SB900A lithium ion rechargeable battery reports remaining runtime in hours and minutes
External charging contacts for docked charging
Backlit LCD with easy to navigate menu and controls
Selectable display mode showing group/channel, frequency, or battery runtime
