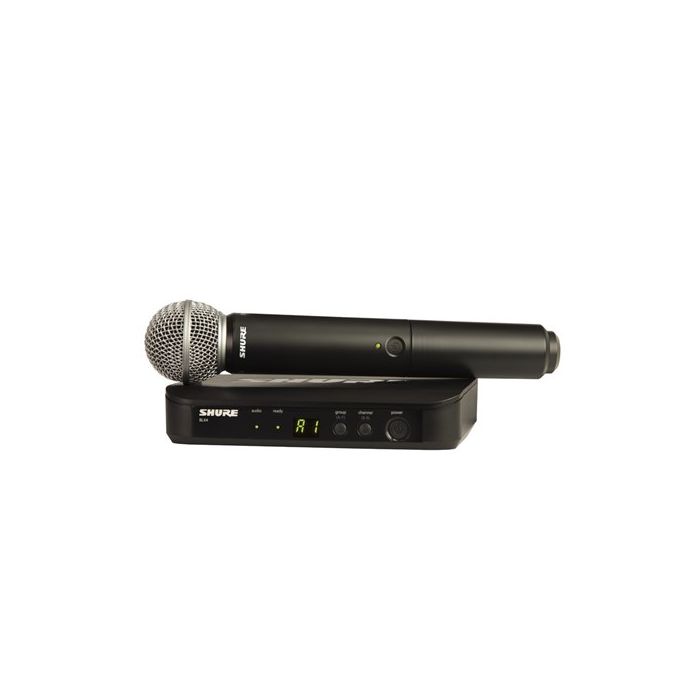

SHURE BLX24/SM58 HANDHELD WIRELESS SYSTEM
Availability: Available
SHURE
SM58 capsule
The BLX24/PG58 Handheld Wireless System is part of the BLX wireless systems family.
Shure BLX® Wireless Systems combine professional-quality sound with simple setup and an intuitive interface for legendary audio performance right out of the box. Precision-built and available in a variety of configurations, it’s the most accessible way to own the stage.
Includes BLX4 single-channel receiver, BLX2/SM58 handheld transmitter, microphone clip, power supply, 2 AA batteries, and user guide.
| Specification | BLX2/SM58 Compatible with Shure microphones trusted by musicians for decades, including the legendary SM58, the BLX2 transmits wireless audio with professional clarity and reliability. For use only with BLX Wireless systems. Specifications
BLX4 receiver
|
|---|---|
| Manufacturer | SHURE |
| Package | 1 Pack |
BLX2/SM58
Compatible with Shure microphones trusted by musicians for decades, including the legendary SM58, the BLX2 transmits wireless audio with professional clarity and reliability. For use only with BLX Wireless systems.
Specifications
- Audio Input Level
gain 0dB -20 dBV maximum
gain -10dB -10 dBV maximum - Gain Adjustment Range
10 dB - RF Transmitter Output
10 mW, typical
varies by region - Dimensions
224 mm X 53 mm dia. (8 7/8 X 2 1/8 in.) - Weight
218 g (7.7 oz.) (without batteries) - Housing
Molded ABS - Power Requirements
2 LR6 AA batteries, 1.5 V, alkaline - Battery Life
up to 14 hours (alkaline)
BLX4 receiver
- One-touch QuickScan frequency selection quickly locates the best open frequency (in case of interference)
- Up to 12 compatible systems per frequency band (region-dependent)
- XLR and ¼” output connectors
- Microprocessor-controlled internal antenna diversity
- Two-color audio status indicator LED
- Green: Normal audio levels
- Red: Excessive audio levels (overload/clipping)
- Output Impedance
XLR connector: 200 Ω
6.35 mm (1/4") connector: 50 Ω - Audio Output Level
Ref. ±33 kHz deviation with 1 kHz tone
XLR connector: –27 dBV (into 100 kΩ load)
6.35 mm (1/4") connector: –13 dBV (into 100 kΩ load) - RF Sensitivity
-105 dBm for 12 dB SINAD, typical - Image Rejection
>50 dB, typical - Dimensions
40 mm X 188 mm X 103 mm (H x W x D) - Weight
241 g (8.5 oz.) - Housing
Molded ABS - Power Requirements
12–15 V DC @ 160 mA (BLX88, 320 mA), supplied by external power supply (tip positive)
