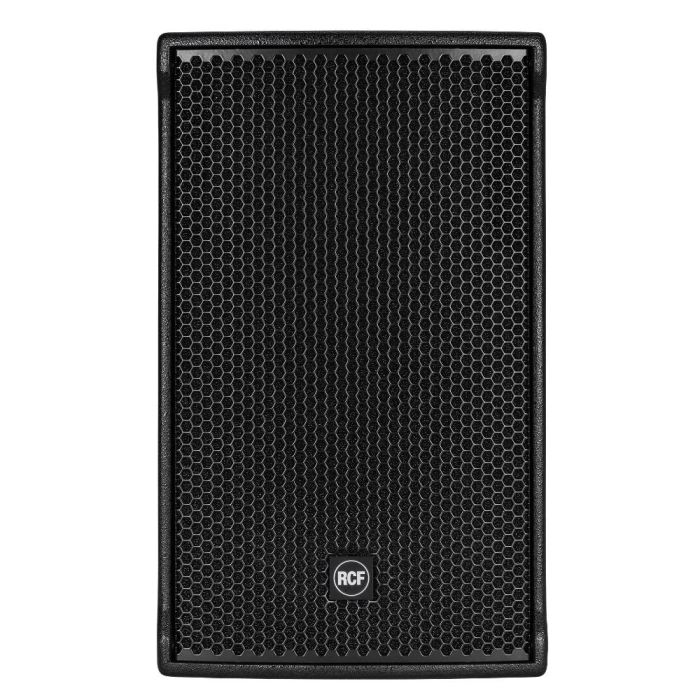

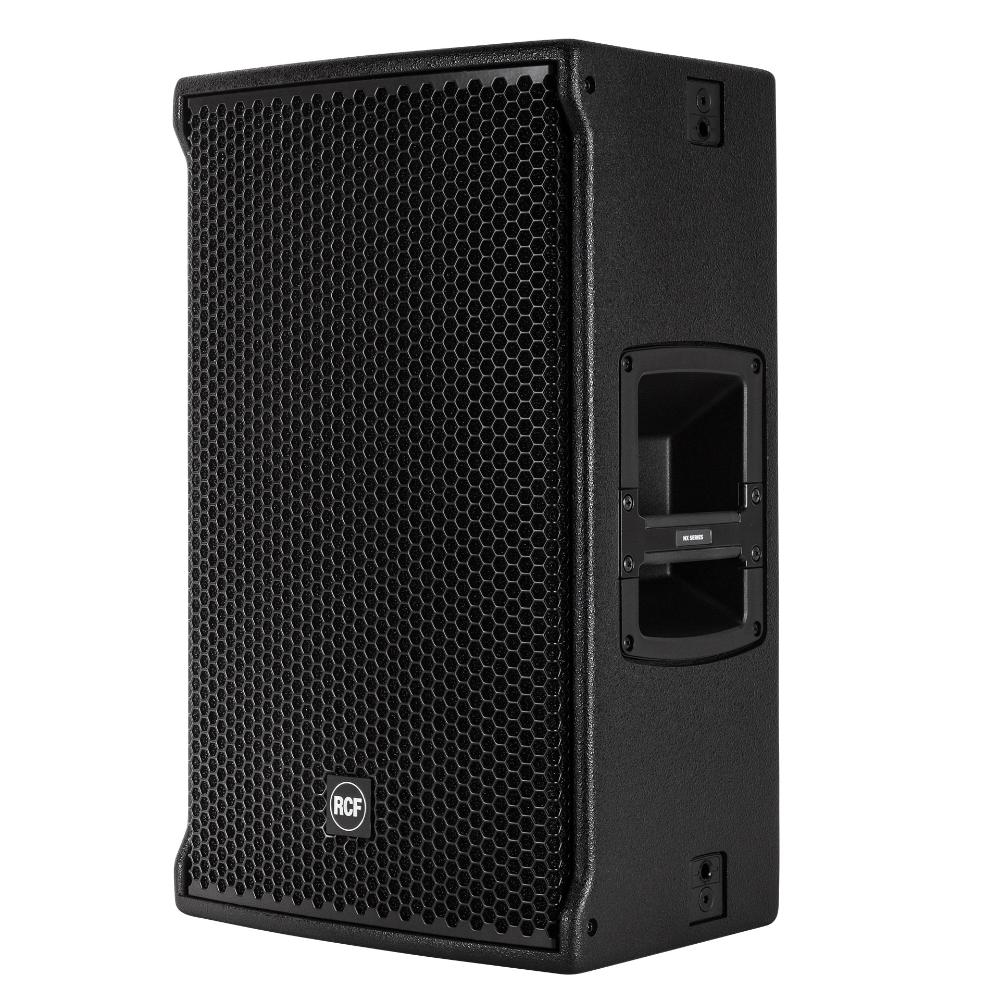

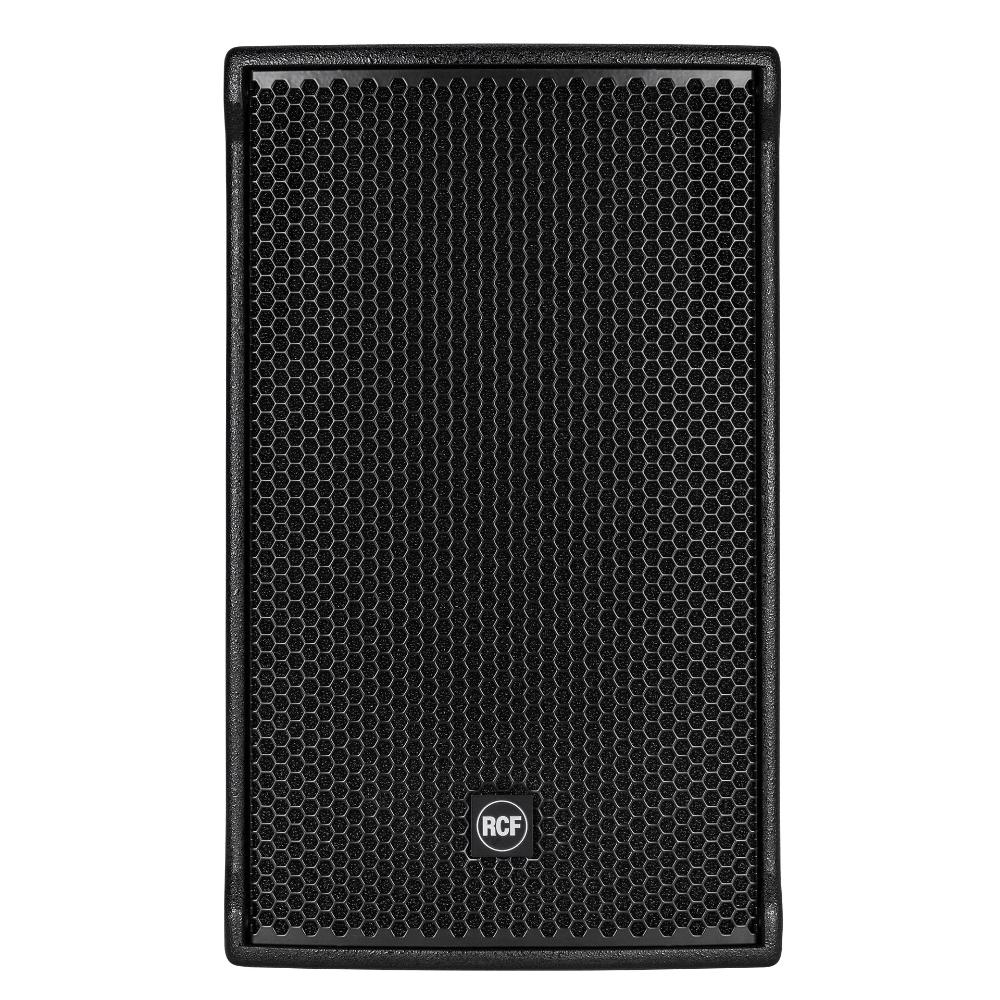

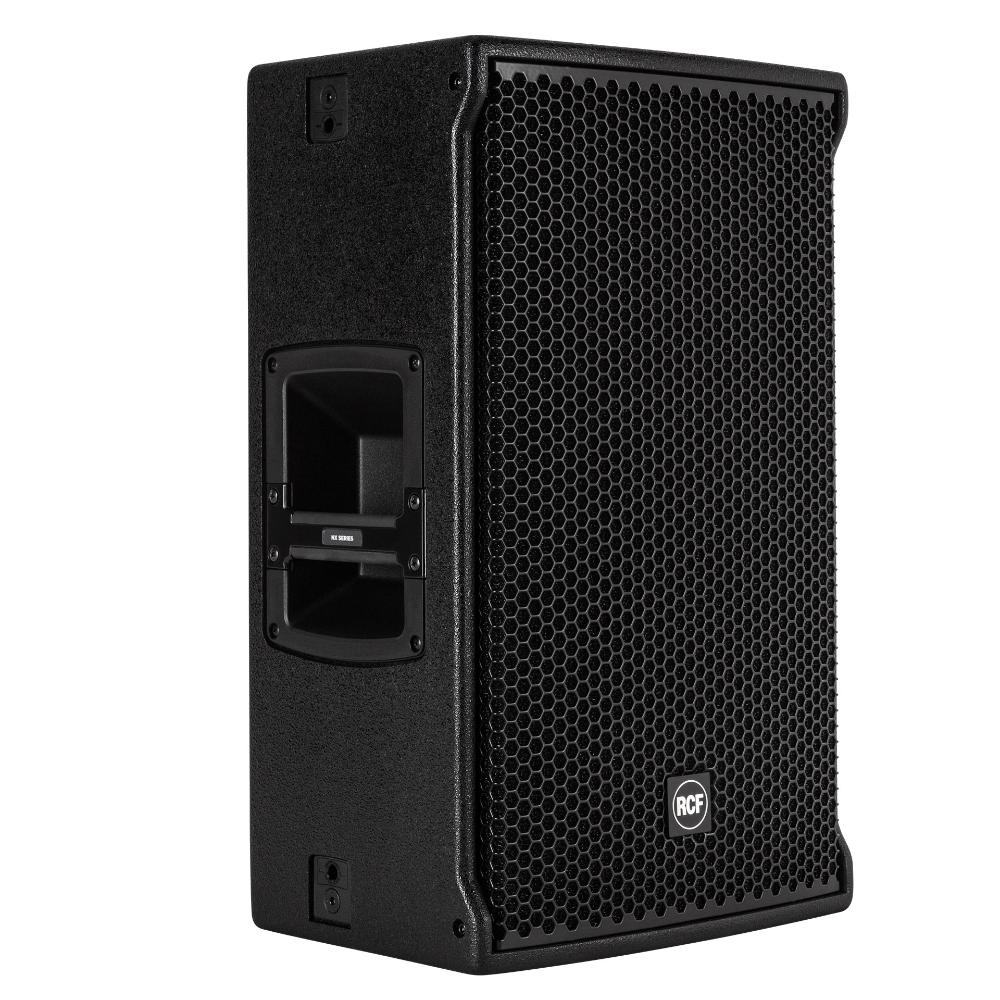

RCF NX32-A 12" ACTIVE TWO WAY MULTIPURPOSE SPEAKER
Availability: Available
RCF
-
NX 32-A
FEATURES
- 1400 W 2-way class-D amplifier
- 131 dB SPL Max
- 50 – 20000 Hz Frequency Range
- 90° x 60° constant directivity coverage
- 12" woofer, 2.5" voice coil
- Horn loaded 3.0''neodymium c. driver
- Multiple rigging points
The NX 32-A is an active speaker specifically designed to be the everyday tool for rental companies and professional musicians. It’s one of the most flexible speaker for deploying high-quality sound as a stand-alone FOH system or as a satellite (with subwoofer) but either as a stage monitor or a or a front, down or side fill speaker.
The special FiRPHASE filters allow for coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies in the system.
The voice coil features a high-temperature kapton former. The assembly process takes advantage of the RCF proprietary Direct Drive technology. The diaphragm’ s suspension has been designed following extensive studies aimed at minimising distortion and extending low frequency range.
| Specification | ACOUSTICAL SPECIFICATIONS
FREQUENCY RESPONSE:50 HZ ÷ 20000 HZ MAX SPL @ 1M:131 DB HORIZONTAL COVERAGE ANGLE:90° VERTICAL COVERAGE ANGLE:60°
TRANSDUCERS COMPRESSION DRIVER:1.4'' NEO, 3.0'' V.C WOOFER:12'', 2.5'' V.C

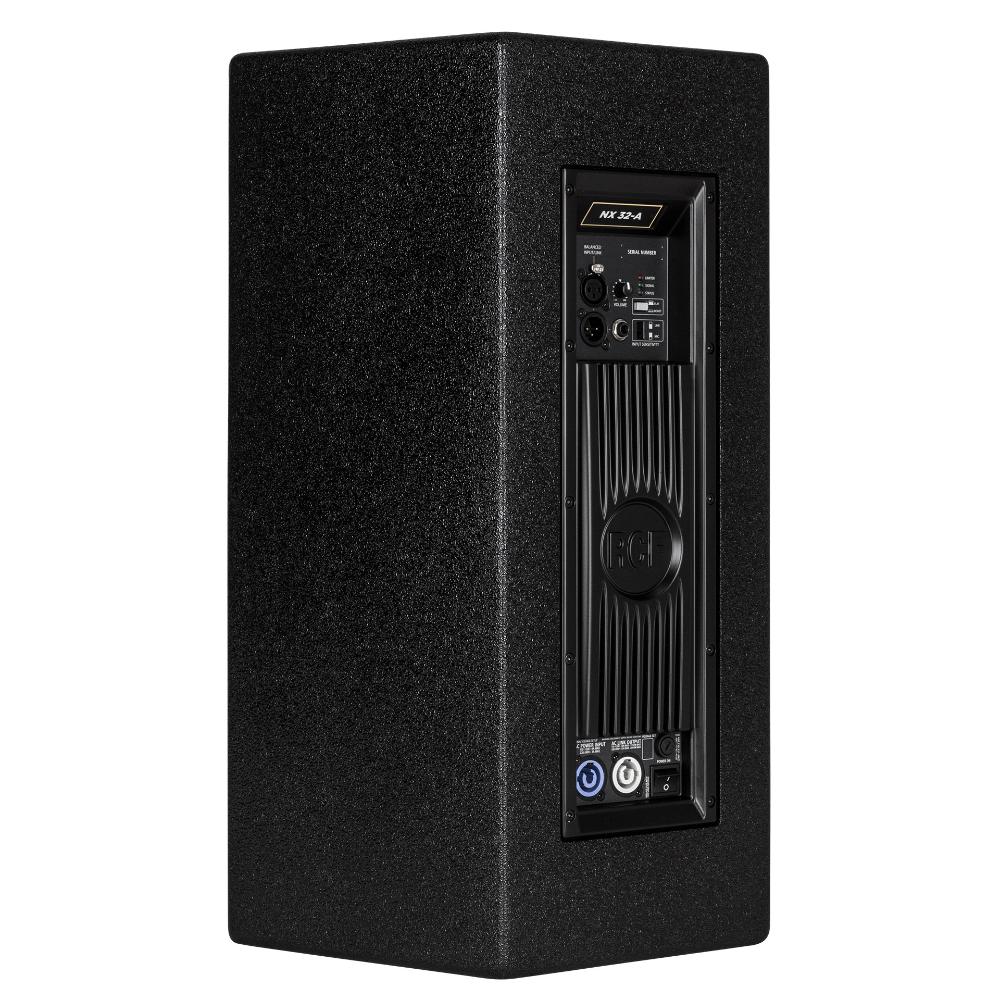

INPUT/OUTPUT SECTION INPUT SIGNAL:BAL/UNBAL INPUT CONNECTORS:XRL, JACK OUTPUT CONNECTORS:XLR INPUT SENSITIVITY:-2 DBU/+4 DBU MIC. INPUT SENSITIVITY:-32 DBU
PROCESSOR SECTION CROSSOVER FREQUENCIES:700 HZ PROTECTIONS:THERMAL, RMS LIMITER:SOFT LIMITER CONTROLS:VOLUME, BOOST, MIC/LINE
POWER SECTION TOTAL POWER:1400 W PEAK, 700 W RMS HIGH FREQUENCIES:400 W PEAK, 200 W RMS LOW FREQUENCIES:1000 W PEAK, 500 W RMS COOLING:CONVECTION CONNECTIONS:POWERCON IN/OUT
PHYSICAL SPECIFICATIONS CABINET/CASE MATERIAL: BALTIC BIRCH PLYWOOD HARDWARE: 5 X M10, 4 X QUICK LOCK HANDLES: 2 SIDE POLE MOUNT/CAP: YES GRILLE: STEEL COLOR: BLACK SIZE HEIGHT: 600 MM / 23.62 INCHES WIDTH: 365 MM / 14.37 INCHES DEPTH: 378 MM / 14.88 INCHES WEIGHT: 20.6 KG / 45.42 LBS
SHIPPING INFORMATIONS PACKAGE HEIGHT: 655 MM / 25.79 INCHES PACKAGE WIDTH: 425 MM / 16.73 INCHES PACKAGE DEPTH: 440 MM / 17.32 INCHES PACKAGE WEIGHT: 23.6 KG / 52.03 LBS |
|---|---|
| Manufacturer | RCF |
| Package | 1 Pack |
ACOUSTICAL SPECIFICATIONS
FREQUENCY RESPONSE:50 HZ ÷ 20000 HZ
MAX SPL @ 1M:131 DB
HORIZONTAL COVERAGE ANGLE:90°
VERTICAL COVERAGE ANGLE:60°
TRANSDUCERS
COMPRESSION DRIVER:1.4'' NEO, 3.0'' V.C
WOOFER:12'', 2.5'' V.C
INPUT/OUTPUT SECTION
INPUT SIGNAL:BAL/UNBAL
INPUT CONNECTORS:XRL, JACK
OUTPUT CONNECTORS:XLR
INPUT SENSITIVITY:-2 DBU/+4 DBU
MIC. INPUT SENSITIVITY:-32 DBU
PROCESSOR SECTION
CROSSOVER FREQUENCIES:700 HZ
PROTECTIONS:THERMAL, RMS
LIMITER:SOFT LIMITER
CONTROLS:VOLUME, BOOST, MIC/LINE
POWER SECTION
TOTAL POWER:1400 W PEAK, 700 W RMS
HIGH FREQUENCIES:400 W PEAK, 200 W RMS
LOW FREQUENCIES:1000 W PEAK, 500 W RMS
COOLING:CONVECTION
CONNECTIONS:POWERCON IN/OUT
PHYSICAL SPECIFICATIONS
CABINET/CASE MATERIAL: BALTIC BIRCH PLYWOOD
HARDWARE: 5 X M10, 4 X QUICK LOCK
HANDLES: 2 SIDE

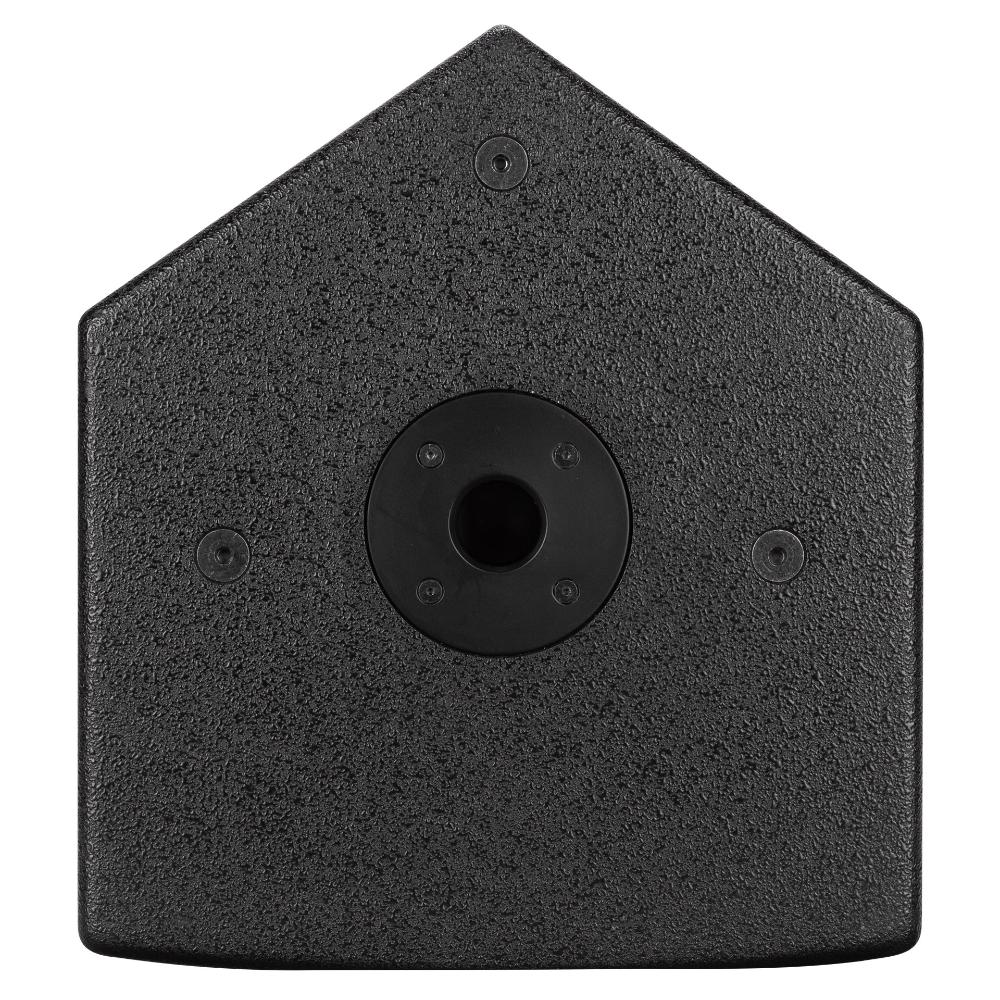

POLE MOUNT/CAP: YES
GRILLE: STEEL
COLOR: BLACK
SIZE
HEIGHT: 600 MM / 23.62 INCHES
WIDTH: 365 MM / 14.37 INCHES
DEPTH: 378 MM / 14.88 INCHES
WEIGHT: 20.6 KG / 45.42 LBS
SHIPPING INFORMATIONS
PACKAGE HEIGHT: 655 MM / 25.79 INCHES
PACKAGE WIDTH: 425 MM / 16.73 INCHES
PACKAGE DEPTH: 440 MM / 17.32 INCHES
PACKAGE WEIGHT: 23.6 KG / 52.03 LBS
