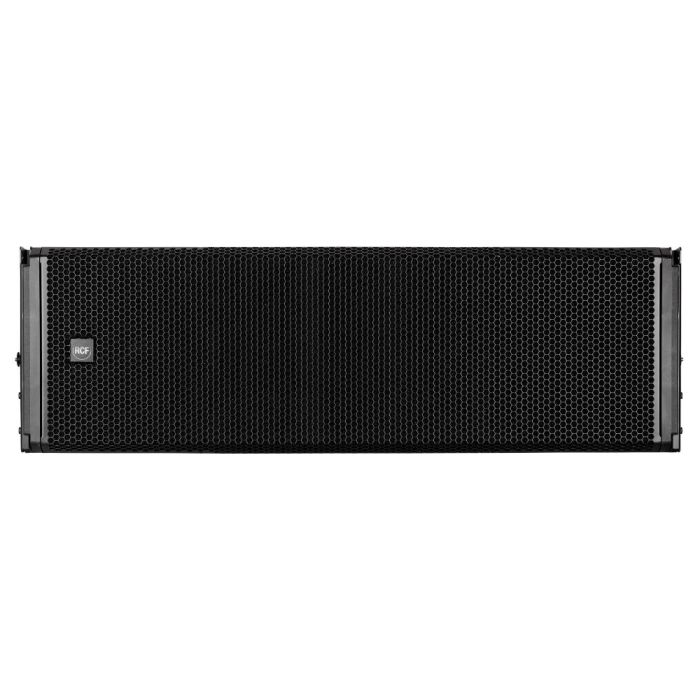

RCF HDL 50-A ACTIVE THREE-WAY LINE ARRAY MODULE
A$0.00
PRICE ON APPLICATION
SKU
HDL 50-A
HDL 50-A
PRICE ON APPLICATION
The HDL 50-A is a true active high power speaker system ready to use touring system for large events, indoors and outdoors. Equipped with 2x12” woofers, 4x symmetrical 6.5” midranges and two 2” drivers, it offers excellent playback quality and high sound pressure levels with a built in 2200W RMS powerful digital amplifier that delivers superior SPL, while reducing energy requirement. Using advanced neodymium magnets and a groundbreaking new housing constructed from lightweight plywood and polypropylene, it has a remarkably low weight for easy handling and flying. The HDL 53-AS is the ideal flyable bass complement for the HDL 50-A array system.
FEATURES
- 4400 Watt, 3 way amplification
- 140 dB max SPL
- 8 x high power neodymium transducers
- 48 kHz, 32 bit DSP processing
- RDNet on board
- Remote monitoring and control
- Symmetrical design
- Extremely low weight
| Custom Stock Status | PRICE ON APPLICATION | ||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specification |
|
||||||||||||||||||||||||||||||||||||||||||
| Manufacturer | RCF |
||||||||||||||||||||||||||||||||||||||||||
| Package | 1 Pack |
-
RCF HDL50-A Specs
Frequency Response (- 3 dB) 3 40 Hz to 20 kHz Maximum SPL 140 dB Coverage Angle Horizontal: 90°
Vertical: 10°Compression Driver 2 x 1.4" (3.6 cm) neo, 3" (7.6 cm) v.c. Woofer 2 x 12" (30.5 cm) neo, 3" (7.6 cm) v.c. Midrange 4 x 6" (15.2 cm) neo, 2" (5 cm) v.c. Input Signal Balanced/unbalanced Input Connectors XLR male, RDNET Output Connectors XLR female, RDNET Input Sensitivity 4 dBu Crossover Frequencies 200-800 Hz Protection Level Thermal, RMS Limiter Soft limiter Controls Cluster size, HF correction, RDNET Peak Power Total Power: 4400 W
High Frequencies: 1100 W
Mid Frequencies: 1100 W
Low Frequencies: 2200 WRMS Power Total Power: 2200 W
High Frequencies: 550 W
Mid Frequencies: 550 W
Low Frequencies: 1100 WCooling Convection Connections PowerCON in/out Cabinet Construction Baltic Birch Dimensions 14.4 x 46.1 x 19.8" (36.6 x 117.1 x 50.2 cm) Weight 123.5 lb (56 kg)
