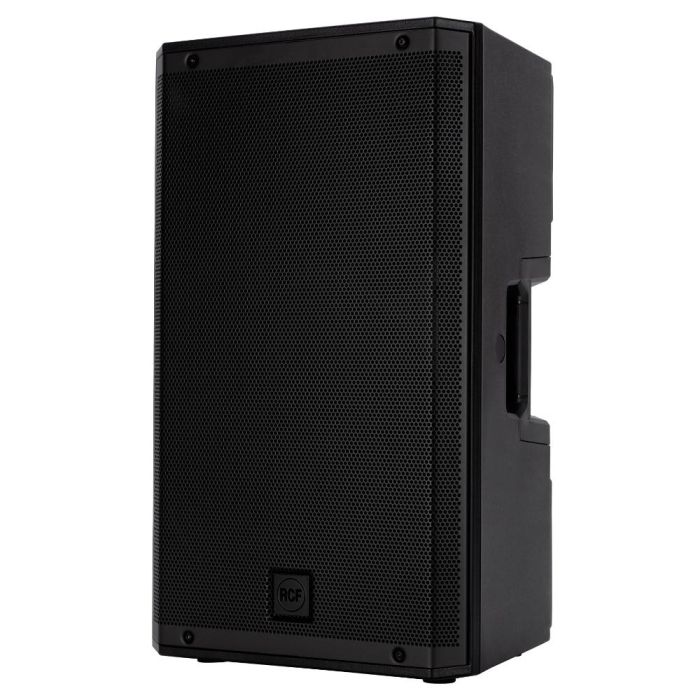

RCF ART912-AX – PROFESSIONAL 2100W ACTIVE BLUETOOTH® 12" SPEAKER
- 2100W Class-D Bi-Amplification
- Bluetooth® stereo audio input, with dual speaker pairing option
- Advanced User Interface w/ touch panel and remote control
- Built-in 6-channel Digital Mixer
FEATURES
- Built-in 6-channel Digital Mixer
- Advanced User Interface w/ touch panel and remote control
- 1.75" Compression Driver and 12" Woofery
- Up to 130 dB Sound Pressure Level
- 2100W Class-D Bi-Amplification
- Dual combo preamp with 48V Power and Mini-jack stereo line input
- Bluetooth® stereo audio input, with dual speaker pairing option
- True Resistive Waveguide, FiRPHASE, and Bass Motion Control
ART 912-AX is a top-notch solution for any audio application, featuring 48V microphone preamps and line inputs, an internal 6-channel digital mixer with advanced DSP, Bluetooth® stereo audio input, with dual speaker pairing option. The combination of a 1.75" compression driver, 12" woofer, and two-channel 2100W amplifier, produces 100° x 60° constant directivity coverage for the listening area with up to 130 dB SPL, distortion-free sound. The sleek cabinet uses a special polypropylene composite material with an M-brace internal reinforcement, making it easy to carry and secure to install on a pole, flown-, wall-, or truss-mounted using the multiple rigging points available.
Enjoy the Powerful Internal Digital Mixer and Advanced Bluetooth® Pairing
ART 9-AX is a top-notch solution for any portable audio application
Connect your instruments and microphones to the 48V powered preamps or the line inputs; an internal 6-channel digital mixer with Compressors, EQs, Reverb, and Ducker will help you get the job done. And if you run out of time, use the quick setup modes with step-by-step configuration options.
2100 W: the most powerful wireless Bluetooth® speaker
ART 9-AX is the most powerful speaker on the market, also when connected wireless.
The Class 1 Bluetooth® connection can receive 2-channel audio streaming and provides a stereo or dual mono output for pairing with AX-featured RCF speakers. We tested over 100 meters (328 feet) free-field operability. Enjoy the convenience of Bluetooth® connection when you have architectural constraints, pedestrian areas, or inaccessible signal connections.
Power that moves
The most powerful amplifier in its class. RCF's improvements in transducer design make them stronger and powerful, so the amplifier follows the evolution. With 2100 Watts of power, the 2-channel ART 9 Class-D amplifier is 50% more powerful than previous models, able to manage extremely high sound pressure levels with an ultra-fast attack, realistic transient response, and very low heat loss. ART 9 is very energy-efficient so there is no need for a cooling fan - the amplifier is attached to a solid aluminum heat exchanger in the back of the unit - with no moving parts. Being physically connected with the internal frame, the amplifier is firm and solid within the cabinet. The input circuit features a new low distortion design with an advanced safety limiter, maintaining the true character of the input signal at all levels. All ART 9 amplifiers are designed according to EN62368-1 for maximum safety and present a Switch Mode Power Supply section joining high-efficiency with minimum weight.
A Live Experience in your Pocket
Manage ART 9-AX from your Smartphone or Tablet with LiveRemote App
RCF LiveRemote App makes it easy to adjust ART 9-AX mixer, DSP, FX, routing, and Bluetooth® settings. LiveRemote also allows full control of the internal ART 9-AX engine: recall and save presets, set your desired volume levels, adjust EQ, compressors, and FX, customize and tune your sound system and much more. Available for Android and iOS phones and tablets.
| Specification | SPECIFICATIONS ACOUSTICAL SPECIFICATIONS Frequency Response: 50 Hz ÷ 20000 Hz Max SPL @ 1m: 130 dB Horizontal coverage angle: 100° Vertical coverage angle: 60° TRANSDUCERS Compression Driver: 1 x 1.0'', 1.75'' v.c Woofer: 12'', 2.5'' v.c INPUT/OUTPUT SECTION Input signal: bal/unbal Input connectors: Combo XLR/Jack Output connectors: XLR PROCESSOR SECTION Crossover Frequencies: 1600Hz Protections: Thermal, RMS Limiter: Soft Limiter Controls: Color touch panel, data entry/volume encoder, dedicated App for iOS and Android. POWER SECTION Total Power: 2100 W Peak, 1050 W RMS High frequencies: 700 W Peak, 350 W RMS Low frequencies: 1400 W Peak, 700 W RMS Cooling: Convection Connections: VDE ELECTRONIC SPECIFICATIONS Frequency Response: 20 Hz ÷ 20 Hz THD+N, 20dB gain, 0dBu out 0.005% A-Weighted PROCESSING Processing Channels: 6 Signal Processing: 24 Bit A/D-D/A conversion: 32 Bit @ 48.0 kHz Dynamic range: 110 INPUTS Mic: 2 Remote Controlled Storable Gain: Yes Gain Range: 0 dB ÷ 42 dB Input Noise Level: -114 dBu A-Weighted Mic Inputs Impedance: 6 kohm Low Cut: 20 Hz ÷ 400 Hz Phantom Power +48V: Yes Mono Line: 2 Gain Selection: 0 dB ÷ 22 dB Line Input Impedance: 21 kohm A/D Dynamic range: 114 dB Stereo Line: 1 Gain Selection: 0 dB ÷ 10 dB Stereo Line Input Impedance (kOhm) 13 kohm OUTPUTS Main MIX: 1 OUTPUTS SPECIFICATIONS Main Out Impedance: 150 ohm Main Out Level: 22 dBu D/A Dynamic Range: 114 dB COMPRESSORS RCF Compressors: Compressors on MIC/LINE CH1 & CH2 Inputs. EQ Input Channels EQ: 2 Shelving 1 Description: 3 Band EQ: High and Low band shelving, MID band peak on IN INTERNAL EFFECTS Send Effects: 1 MASTERING PROCESSORS Main OUT type: MIX OUT, CROSSOVER OUT with RCF SUBWOOFERS presets, STEREO OUTPUT, CH1 LINK OUT. STANDARD COMPLIANCE Safety agency: CE compliant PHYSICAL SPECIFICATIONS Cabinet/Case Material: PP Composite Hardware: 1 x M10 top, 1 x M10 each side Handles: 1 top, 1 each side Pole mount/Cap: Yes Grille: Steel Color: Black SIZE Height: 642 mm / 25.28 inches Width: 370 mm / 14.57 inches Depth: 363 mm / 14.29 inches Weight: 19.8 kg / 43.65 lbs SHIPPING INFORMATION Package Height: 685 mm / 26.97 inches Package Width: 423 mm / 16.65 inches Package Depth: 430 mm / 16.93 inches Package Weight: 22 kg / 48.5 lbs
|
|---|---|
| Manufacturer | RCF |
| Package | 1 Pack |
SPECIFICATIONS
ACOUSTICAL SPECIFICATIONS
Frequency Response:
50 Hz ÷ 20000 Hz
Max SPL @ 1m:
130 dB
Horizontal coverage angle:
100°
Vertical coverage angle:
60°
TRANSDUCERS
Compression Driver:
1 x 1.0'', 1.75'' v.c
Woofer:
12'', 2.5'' v.c
INPUT/OUTPUT SECTION
Input signal:
bal/unbal
Input connectors:
Combo XLR/Jack
Output connectors:
XLR
PROCESSOR SECTION
Crossover Frequencies:
1600Hz
Protections:
Thermal, RMS
Limiter:
Soft Limiter
Controls:
Color touch panel, data entry/volume encoder, dedicated App for iOS and Android.
POWER SECTION
Total Power:
2100 W Peak, 1050 W RMS
High frequencies:
700 W Peak, 350 W RMS
Low frequencies:
1400 W Peak, 700 W RMS
Cooling:
Convection
Connections:
VDE
ELECTRONIC SPECIFICATIONS
Frequency Response:
20 Hz ÷ 20 Hz
THD+N, 20dB gain, 0dBu out
0.005% A-Weighted
PROCESSING
Processing Channels:
6
Signal Processing:
24 Bit
A/D-D/A conversion:
32 Bit @ 48.0 kHz
Dynamic range:
110
INPUTS
Mic:
2
Remote Controlled Storable Gain:
Yes
Gain Range:
0 dB ÷ 42 dB
Input Noise Level:
-114 dBu A-Weighted
Mic Inputs Impedance:
6 kohm
Low Cut:
20 Hz ÷ 400 Hz
Phantom Power +48V:
Yes
Mono Line:
2
Gain Selection:
0 dB ÷ 22 dB
Line Input Impedance:
21 kohm
A/D Dynamic range:
114 dB
Stereo Line:
1
Gain Selection:
0 dB ÷ 10 dB
Stereo Line Input Impedance (kOhm)
13 kohm
OUTPUTS
Main MIX:
1
OUTPUTS SPECIFICATIONS
Main Out Impedance:
150 ohm
Main Out Level:
22 dBu
D/A Dynamic Range:
114 dB
COMPRESSORS
RCF Compressors:
Compressors on MIC/LINE CH1 & CH2 Inputs.
EQ
Input Channels EQ:
2 Shelving 1
Description:
3 Band EQ: High and Low band shelving, MID band peak on IN
5 Band EQ: 4 Full Parametric, 1 High Shelving and HPF 24 dB/Oct on Amplifier and MAIN output,
INTERNAL EFFECTS
Send Effects:
1
MASTERING PROCESSORS
Main OUT type:
MIX OUT, CROSSOVER OUT with RCF SUBWOOFERS presets, STEREO OUTPUT, CH1 LINK OUT.
STANDARD COMPLIANCE
Safety agency:
CE compliant
PHYSICAL SPECIFICATIONS
Cabinet/Case Material:
PP Composite
Hardware:
1 x M10 top, 1 x M10 each side
Handles:
1 top, 1 each side
Pole mount/Cap:
Yes
Grille:
Steel
Color:
Black
SIZE
Height:
642 mm / 25.28 inches
Width:
370 mm / 14.57 inches
Depth:
363 mm / 14.29 inches
Weight:
19.8 kg / 43.65 lbs
SHIPPING INFORMATION
Package Height:
685 mm / 26.97 inches
Package Width:
423 mm / 16.65 inches
Package Depth:
430 mm / 16.93 inches
Package Weight:
22 kg / 48.5 lbs
