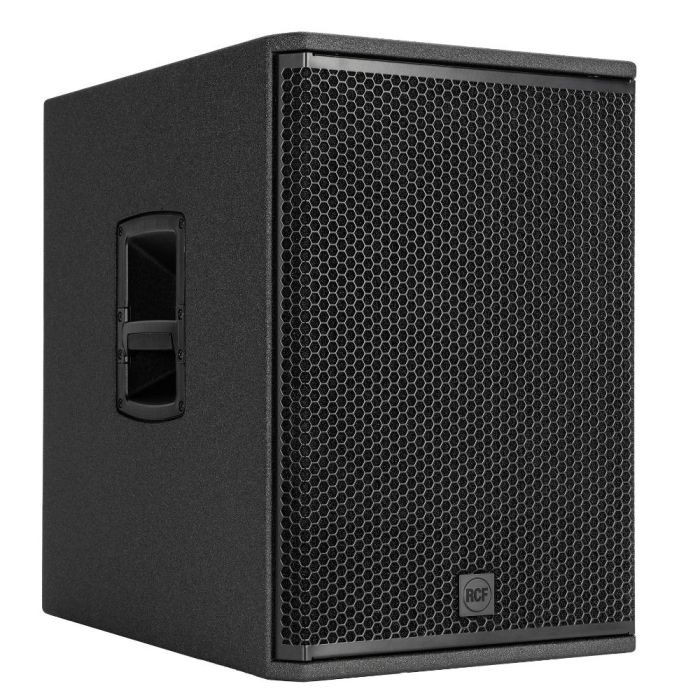

RCF 705-AS MK3 15" 1400 WATT ACTIVE SUBWOOFER

Special Price A$2,749.00 Regular Price A$3,670.00

LOW STOCK 4 LEFT

SKU

SUB705MK3

SUB 705-AS MK3

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

FEATURES

1400 Watt Class-D Amplifier
15” Woofer, bass reflex housing
Stereo Crossover
Switchable Crossover Frequencies
Polarity-reverse switch
Electronic equalization, soft limiter and protection
Stereo XLR input, Stereo XLR signal output
Bass Motion Control excursion management

The SUB 705-AS mk3 is a portable 15" high-power active subwoofer for live sound applications. It features a state-of-the-art transducer with a high-power ceramic magnetic circuit and a powerful Class-D amplifier that delivers sound pressure levels up to 131 dB with exceptional headroom. Designed as the ideal complement for 10" or 12" loudspeakers, it provides outstanding performance in any application. Rear panel controls include volume, EQ, polarity, and crossover frequency selection. The rugged all-wood cabinet with scratch-resistant polyurea coating makes it durable, easy to carry and install securely. With its versatility, sound quality, and high power output, the SUB 705-AS MK3 is perfect for small to mid-sized venues and portable applications.

More Information

More Information
Custom Stock Status	LOW STOCK {qty} LEFT
Specification	SPECIFICATIONS Acoustical specifications FREQUENCY RESPONSE: 40 Hz ÷ 120 Hz MAX SPL @ 1M: 131 dB Transducers WOOFER: 15'', 3.0'' v.c Input/Output section INPUT SIGNAL: bal/unbal INPUT CONNECTORS: XLR OUTPUT CONNECTORS: XLR INPUT SENSITIVITY: -2 dBu/+4 dBu Processor section HI-PASS FREQUENCIES: 110 Hz LOW-PASS FREQUENCIES: 80 Hz PROTECTIONS: Thermal, RMS LIMITER: Soft Limiter CONTROLS: Volume, EQ, Phase, Xover Power section TOTAL POWER: 1400 W Peak, 700 W RMS LOW FREQUENCIES: 1400 W Peak, 700 W RMS COOLING: Convection CONNECTIONS: VDE Physical specifications CABINET/CASE MATERIAL: Baltic birch plywood HANDLES: 2 side POLE MOUNT/CAP: Yes COLOR: Black Size HEIGHT: 568 mm / 22.36 inches WIDTH: 430 mm / 16.93 inches DEPTH: 595 mm / 23.43 inches WEIGHT: 28.6 kg / 63.05 lbs Shipping informations PACKAGE HEIGHT: 605 mm / 23.82 inches PACKAGE WIDTH: 640 mm / 25.2 inches PACKAGE DEPTH: 470 mm / 18.5 inches PACKAGE WEIGHT: 32.4 kg / 71.43 lbs
Manufacturer	RCF
Package	1 Pack

Specification

SPECIFICATIONS

Acoustical specifications

FREQUENCY RESPONSE: 40 Hz ÷ 120 Hz

MAX SPL @ 1M: 131 dB

Transducers

WOOFER: 15'', 3.0'' v.c

Input/Output section

INPUT SIGNAL: bal/unbal

INPUT CONNECTORS: XLR

OUTPUT CONNECTORS: XLR

INPUT SENSITIVITY: -2 dBu/+4 dBu

Processor section

HI-PASS FREQUENCIES: 110 Hz

LOW-PASS FREQUENCIES: 80 Hz

PROTECTIONS: Thermal, RMS

LIMITER: Soft Limiter

CONTROLS: Volume, EQ, Phase, Xover

Power section

TOTAL POWER: 1400 W Peak, 700 W RMS

LOW FREQUENCIES: 1400 W Peak, 700 W RMS

COOLING: Convection

CONNECTIONS: VDE

Physical specifications

CABINET/CASE MATERIAL: Baltic birch plywood

HANDLES: 2 side

POLE MOUNT/CAP: Yes

COLOR: Black

Size

HEIGHT: 568 mm / 22.36 inches

WIDTH: 430 mm / 16.93 inches

DEPTH: 595 mm / 23.43 inches

WEIGHT: 28.6 kg / 63.05 lbs

Shipping informations

PACKAGE HEIGHT: 605 mm / 23.82 inches

PACKAGE WIDTH: 640 mm / 25.2 inches

PACKAGE DEPTH: 470 mm / 18.5 inches

PACKAGE WEIGHT: 32.4 kg / 71.43 lbs
