POWERWISE PD1210 12 discrete channels of 10A power distribution
Availability: Available
Powerwise

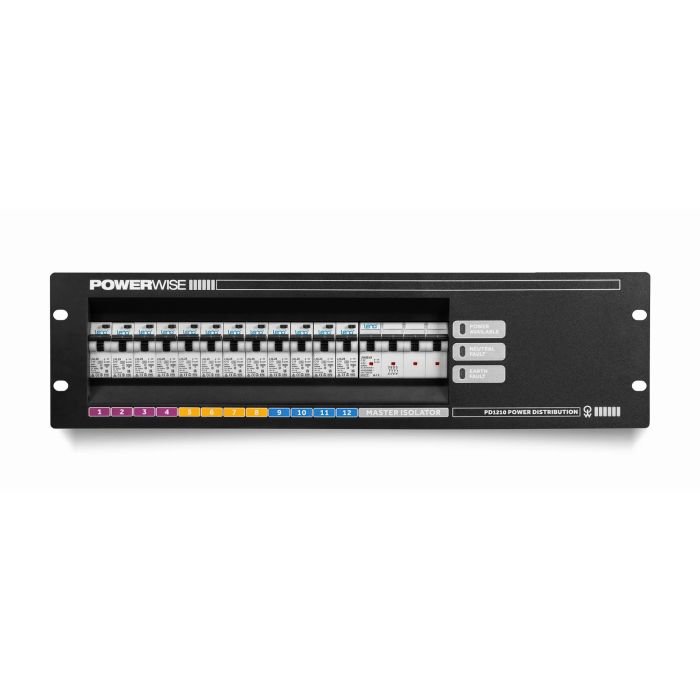

PD1210 RACKMOUNT POWER DISTRIBUTION
BORN FOR THE STAGE
This convenient 19" rack mount 3-Phase power distribution family is ideally suited to a life on the road powering mobile sound and lighting, corporate AV and TV or is equally at home in fixed theatre and nightclub installations. With a variety of specialist features, you can pick the best model for your requirements.
PD1210
12 discrete channels of 10A power distribution for events and installation.
KEY FEATURES
-
12 x 10A AU GPO rear mounted outlets
-
2-pole line & neutral outlet switching
-
30mA type A c-curve RCBO outlet protection
-
32A main isolator and incoming supply protection
-
3RU 19” rack mountable
-
Neutral and earth fault indicator
-
Visual phase identification
-
1.6M supply cable fitted with 32A 5 pin 56 series style supply connection
-
AS/NZS 62368.1:2022 AV & IT compliance
-
AS/NZS 3002:2021 shows and carnivals compliance
-
6 year limited warranty*
| Specification | Number of Circuits 12 |
|---|---|
| Manufacturer | Powerwise |
| Package | 1 Pack |
Number of Circuits 12
Output Capacity Per Circuit 10A
Number of Outputs per Circuit 1
Output Connector Type 12 x 10A AU GPO
Master Isolator 4-Pole 32A MCB, C-Curve
Circuit Protection 1P+N 10A, Type A, C Curve RCBO
Supply Cable 1.7m, 5x6mm2 Heavy Duty Flexible Rubber
Supply Connector 5-Pin 32A 3-Phase, 380-415V 50Hz 3P+N+PE
Input Power Indicator YES
Neutral Fault Indicator YES
Earth Fault Indicator YES
19" 3RU Rackmount YES
Dimensions (WxHxD) 525mm x 215mm x 505mm
Weight 10.3kg
Warranty 6 Year Limited
