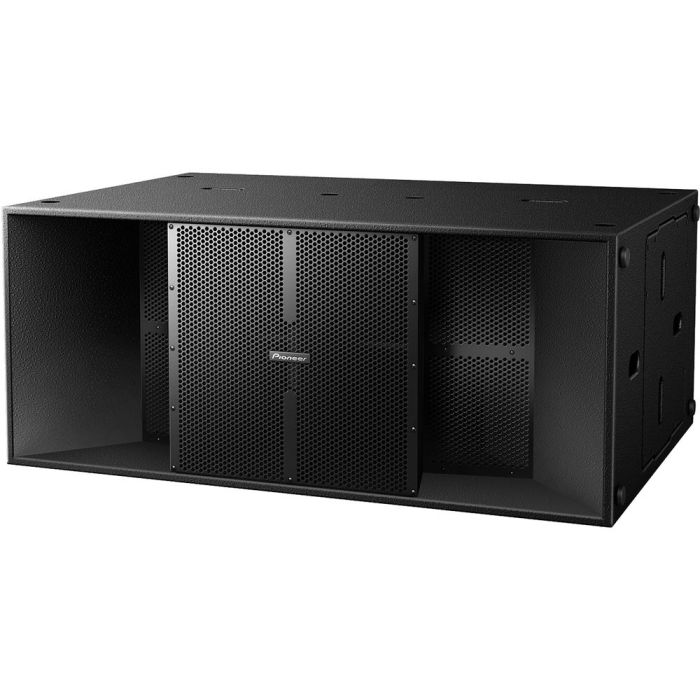

Pioneer XY-218HS Dual 18” horn-loaded subwoofer
The horn-loaded dual 18-inch XY-218HS is designed to deliver ultra-low frequencies at large venues and outdoor events. Combine units with the XY-122 and XY-152 speakers for a well-rounded and comprehensive set-up.
The XY-218HS is robust and durable, with ultra-low frequencies that travel over long distances.
Fully horn-loaded to deliver a high SPL over long distances
We’ve given the XY-218HS a precisely calculated horn, enclosed in two separate folded chambers, to magnify the sound from the drivers and deliver the intense, high SPL needed for large venues and outdoor events.
Dual high performance 18-inch LF drivers for clean, powerful ultra-low frequencies
The two 18-inch LF drivers feature 4-inch voice coils with high heat dissipation to allow the subwoofer to produce a continuously high SPL over a long time.
Rigid construction reduces resonance
The subwoofer is housed in a robust enclosure made from premium multi-laminate birch plywood, and reinforced with rigged support braces to prevent unnecessary resonance and withstand life on tour.
Easy to transport and carry
We’ve given the subwoofer handles on all sides of the enclosure to make loading in and out of trucks that little bit easier. Castors are sold separately.
| Specification |
Enclosure Type: Twin 18-inch fully horn-loaded subwoofer
Enclosure: 18 mm (0.7-inch) birch plywood
Loudspeaker data Transformer taps: 18-inch LF drivers x 2
Power Handling: 1400 W RMS, 2800 W Program
Power Handling AES: 139 dB cont., 145 dB peak (half space)
Dispersion: Neutrik SpeakON™ NL4 x 2
System data Frequency response: 32 Hz to 150 Hz
Sensitivity (1W/1m): 107.5 dB (half space)
Nominal Impedance: 4 Ω
Dimensions / Weight Dimensions ( W x H x D): 1308 mm × 558 mm × 890 mm
Weight: 134 kg (296 lbs) |
|---|---|
| Package | 1 Pack |
Hardware
Enclosure Type:
Twin 18-inch fully horn-loaded subwoofer
Enclosure:
18 mm (0.7-inch) birch plywood
Loudspeaker data
Transformer taps:
18-inch LF drivers x 2
Power Handling:
1400 W RMS, 2800 W Program
Power Handling AES:
139 dB cont., 145 dB peak (half space)
Dispersion:
Neutrik SpeakON™ NL4 x 2
System data
Frequency response:
32 Hz to 150 Hz
Sensitivity (1W/1m):
107.5 dB (half space)
Nominal Impedance:
4 Ω
Dimensions / Weight
Dimensions ( W x H x D):
1308 mm × 558 mm × 890 mm
(51.5 inch × 22 inch × 35 inch)
Weight:
134 kg (296 lbs)
