PAR9X15O - Outdoor Pro Par with 9 x 15W RGBW LEDs
Special Price
A$499.00
Regular Price
A$525.00
Availability: Available
Manufacturer
EVENT LIGHTING
SKU
PAR9X15O
PAR9X15O

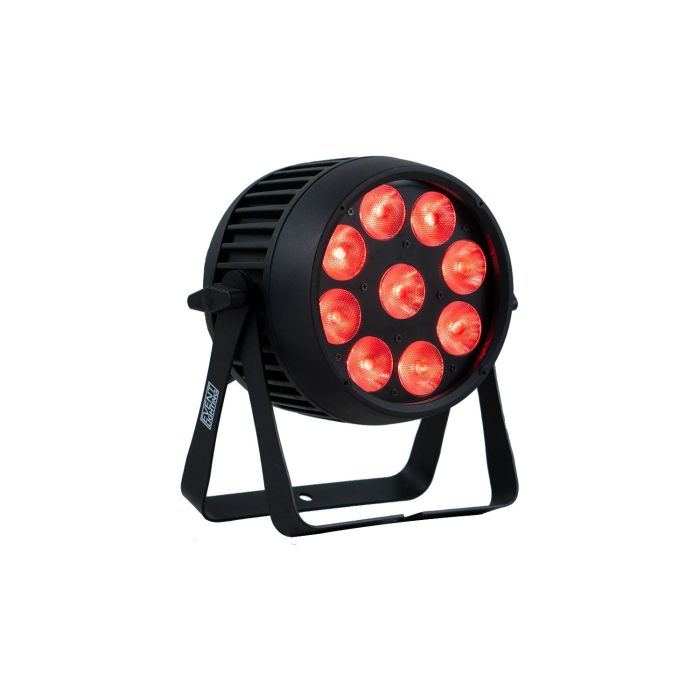

The PAR9X15O is a mid-sized outdoor rated fixture, featuring 9 x 15W RGBW LEDs in a die cast aluminium housing, a 25° beam angle, and the ability to install wireless DMX.
Photometrics
- Light Source: 9 x 15W RGBW LEDs
- Beam Angle: 25°
- Output: 22,500 lux on @ 2m RGBW full on
- PWM: 20,000Hz
- LED Life: 50,000 hours
Effects
- Dimming: 0~100%
- Strobe: 1~20Hz
Power
- Input Voltages: 100V~240V AC,50/60Hz, 150W
- Power Connection: True1 in/out
Control
- Operational Modes: DMX, manual, auto, sound active, master/slave (optional: Wireless DMX)
- Display: LCD full colour control panel
- Control Protocol: DMX512 (optional: Wireless DMX)
- DMX Channels: 4 / 6 / 8
- DMX Interface: Seetronic® 5 Pin Outdoor DMX in/out
Housing
- Housing Materials: Die-cast aluminium, matte black finish
- IP Rating: IP65
- Cooling: Fanless Cooling
- Dimension: 195 x 234 x 144mm
- Net Weight: 6.5kg
MISC
- Accessories Included: 1M Seetronic® Outdoor Powercon, 1M Seetronic® Outdoor DMX Cable
- Road case: PAR9CASEWC Fits 6 Units.
IMPORTANT: Only use the provided Outdoor DMX cable in the device’s DMX out port. The use of other cables will cause the cable to become stuck in the port, requiring the unit to be repaired.
| Specification |
|
|---|---|
| Manufacturer | EVENT LIGHTING |
| Package | 1 Pack |
- Photometrics
Light Source 9x 15 W RGBW 4-in-1 LEDs
Beam Angle 25°
Output 22,500 lux @ 2 m full on
PWM 20,000 Hz
LED Lifespan 50,000 hours
Effects
Dimming 0~100%, 3 dimming curves
Strobe 0.5~20 Hz
Power
Input Voltage 100~240 V AC, 50/60 Hz
Power Consumption 150 W
Connection Seetronic® outdoor TRUE1 in/out
Control
Operation Modes DMX, manual, auto, sound active, master/slave
RDM Change DMX Address
Control Protocol DMX512, RDM, (optional: Wireless DMX)
DMX Channels 4/6/8
Control Interface Seetronic® 3-pin outdoor DMX in/out
Display Full colour LCD touch screen
Housing
Housing Materials Die-cast aluminium
Housing Finish Matte black
Cooling Fanless cooling with temperature protection
IP Rating IP65
Net Weight 6.5 kg
Accessories
Included 1x 1 m Seetronic® outdoor powerkon extension cable
1x 1 m Seetronic® outdoor DMX extension cable
Optional Road Case: PAR9CASE
Barn Door: PAR9BD
