NY64-D
Special Price
A$799.00
Regular Price
A$899.00
ONLY 1 LEFT!
SKU
NY64-D

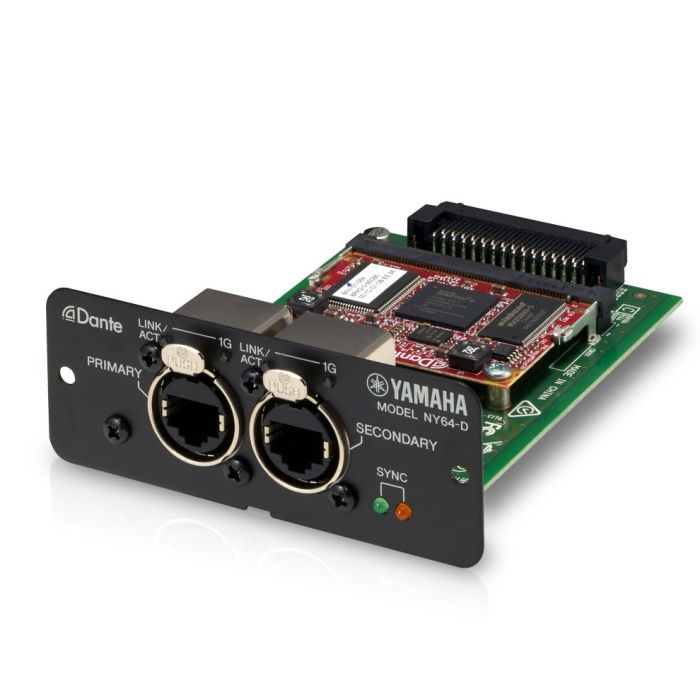

The NY64-D is an I/O expansion card for TF series consoles that allows transmission and reception of up to 128 channels (64 in/64 out) of uncompressed 48 kHz 24 bit digital audio data via a Dante™ audio network. Used in conjunction with the Tio1608-D I/O it becomes possible to create a versatile stage box system with up to 48 inputs and 24 outputs. * NY64-D is compatible with only TF series Digital Mixing Console.
General specifications
| Sampling frequency rate | External | 44.1kHz or 48kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm) |
|---|---|---|
| Dimensions | W | 100mm (3-7/8") |
| H | 39mm (1-4/8") | |
| D | 133mm (5-2/8") | |
| Net weight | 0.2kg (0.4lbs) | |
| Accessories | Owner’s Manual | |
| Others | Temperature Range: Operating temperature range: 0 - 40℃, Storage temperature range: -20 - 60℃ | |
Digital Input & Output Characteristics
| Terminal | Format | Data length | Level | Audio | Connector |
|---|---|---|---|---|---|
| Primary/Secondary | Dante | 24bit or 32bit | 1000Base-T | 64ch ( NY64-D to other devises) 64ch (Other devises to NY64-D) |
etherCON Cat5e |
| Custom Stock Status | ONLY {qty} LEFT! |
|---|---|
| Package | 1 Pack |
