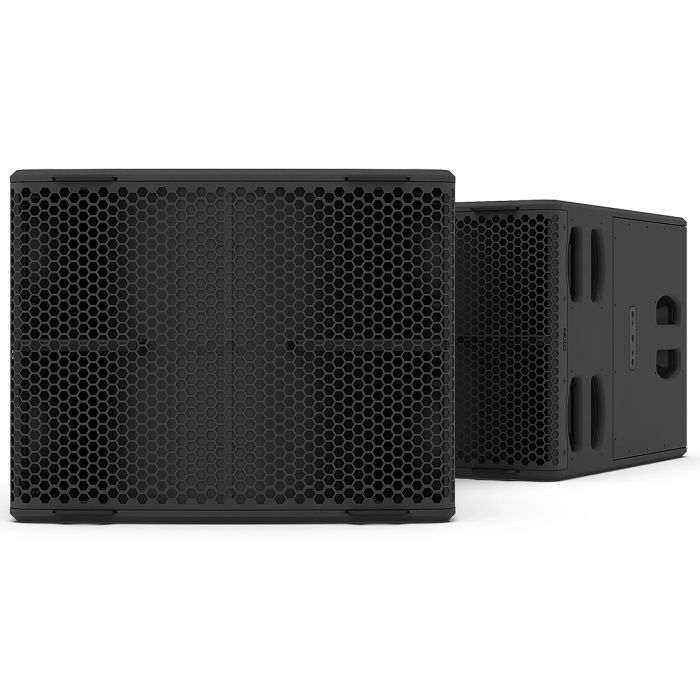

NEXO L15 High Output 15" Subwoofer
A$5,200.00
Availability: Available
Manufacturer
SKU
L15U
L15
Measuring 550mm wide x 439mm high x 650mm deep and weighing 35Kg, the L15 sub employs a 15″ long excursion driver in Baltic birch / poplar plywood cabinet with threaded inserts for mounting accessories and an M20 stand fitting. With a frequency range of 40Hz-120Hz, and 139dB Peak SPL, The L15 is specially designed in a footprint to match the P12, making it a perfect partner in flown applications, and for use as a drum fill.
KEY FEATURES
- Dedicated partner sub for P12 with matching footprint
- Extends LF performance to 40Hz
- 139dB peak SPL
- 1 x 15" long-excusion Neodymium driver
- Can be deployed in standard and cardioid modes
- Threaded inserts on the back and on both sides for connection of mounting accessories
- Standard fitting M20
FEATURES
| Components | 1x 15" – 4 ohms – Long excursion – Neodymium driver |
| Connectors | 2x NL4, 4 poles connectors |
| Rigging Points | 1 x Universal accessory fit on each side + 1 x M20 thread for Pole Stand on top |
| Material | Custom made bent plywood of Baltic birch and poplar |
| Finish | Black or white structural paint |
| Front Finish | Steel front grille |
| Weight | 35 kg |
| Height x Width x Depth | 439mm x 550mm x 650 mm (17.3” x 21.7” x 25.6”) |
| Operating Temperature Range | 0°C - 40°C (32°F - 104°F) |
| Storage Temperature Range | -20°C - 60°C (-4°F - 140°F) |
| System Operation | |
| Recommended Powering Solution | NXAMP4X2MK2: Up to 2 x L15 per channel |
| Optional Powering Solutions | DTD + DTDAMP4X1.3: 1 x L15 per channel |
| NXAMP4x1MK2: 1 x L15 per channel | |
| NXAMP4X4MK2: Up to 2 x L15 per channel |
| Specification | SPECIFICATIONS
|
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Package | 1 Pack |
SPECIFICATIONS
| Frequency Response (+6 dB) | 40 Hz - 120 Hz |
| Peak SPL Level (1m) | 139 dB Peak |
| Recommended Amplifiers | 850 to 1350 Watts / 4Ω |
| Crossover Frequency | 85 Hz, 120 Hz |
| Nominal Impedance | 4Ω |
