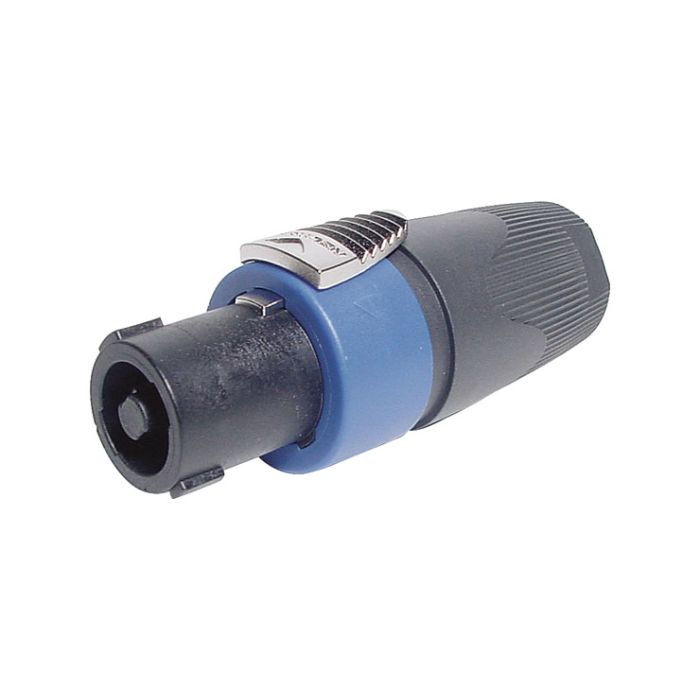

Neutrik Speakon Line Plug Connector NL4FX
A$11.00
Availability: Available
Manufacturer
SKU
NL4FX
4 pole cable connector, chuck type strain relief, dark grey bushing
The industry-standard for loudspeaker connections offer extremely reliable and robust cable connectors with a reliable locking system. They feature solid contacts with screw-type terminals including a stranded wire protection which offer also solder termination.
4 Pin Speakon® Wiring Details
SpeakOn® or Lockable Speaker Connectors can be wired up in a variety of ways for different applications. Two positive and two negative pins are provided allowing two channels of audio to be passed via a single connector. In single channel applications only +1 and -1 will be connected.
Features & Benefits
- Current rating 40 A rms continuous
- Up to 50 A audio signal, duty cycle 50%
- Only 3 parts, easy to assemble
- High impact materials - long-lasting and reliable
- Easy and extremely precise locking system "Quick Lock"
- Improved grip on latch
- 1 piece strain relief, chuck for 7 to 14.5 mm cable O.D.
- Color coding possible
- Improved screw-type termination for highest pull-out force
- Integrated design guarantees "Made by Neutrik®"
| Package | 1 Pack |
|---|
