Neutrik 3 Pin Female Line XLR NC3FXX
A$9.00
Availability: Available
Manufacturer
SKU
NC3FXX

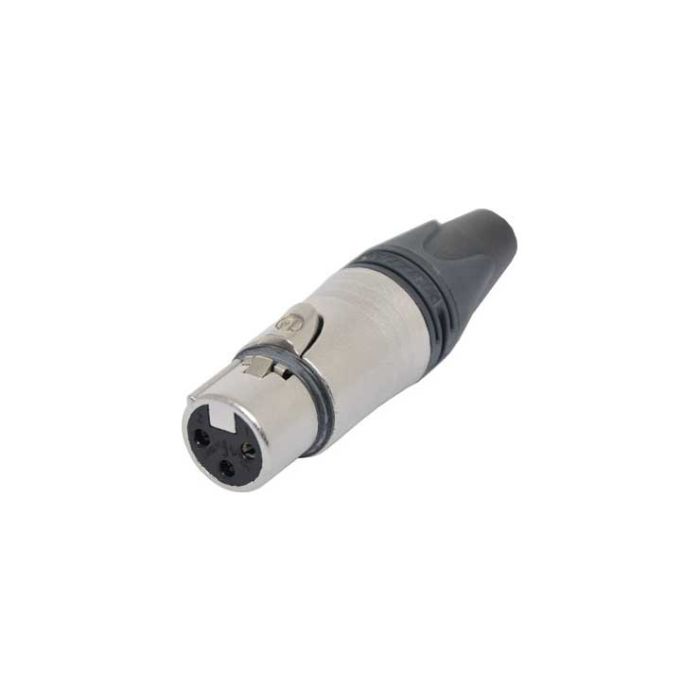

Neutrik NC3FXX 3 Pin Line XLR female connector with silver finish. Neutrik connectors are made from rugged die cast aluminium and are designed to be compact yet stand up to the rigours of everyday use. Connector assembly is designed to be as simple as possible, saving you time when making cables.
Features
- Unique cage design of female contact for low contact resistance and high integrity
- Female contact incorporates a solder barrier to prevent solder running into the contact mating area
- Female connector with improved solid metal latch which is larger and easier to handle
- Additional ground spring contacts for better shell ground continuity
- Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
- Boot with polyurethane gland gives high protection to cable bending stresses
- Sleek and ergonomic design - valuable and handy
- Rugged zinc die cast shell, long lasting and dependable
- Internal thread on shell is well protected against any damage
| Specification |
*Specifications are subject to change without notice. |
|---|---|
| Package | 1 Pack |
- Electrical
- Capacitance between contacts: ≤ 4 pF
- Contact resistance: ≤ 3 mΩ (inner)
- Dielectric strength: 1,5 kVdc
- Insulation resistance: > 10 GΩ (initial)
- Rated current per contact: 16A
- Rated voltage: < 50V
- Mechanical
- Cable O.D.: 3.5 - 8.0 mm
- Insertion force: ≤ 20 N
- Withdrawal force: ≤ 20 N
- Lifetime: > 1000 mating cycles
- Wire size max.: 2.5 mm² (14 AWG)
- Locking device: Latch lock
- Material
- Boot: Polyurethane
- Contact plating: 2 µm Ag
- Contacts: Bronze (CuSn8)
- Insert: Polyamide (PA 6.6 30 % GR)
- Locking element: Zinc die cast (ZnAl4Cu1) / Ck 67 (spring)
- Shell: Zinc die cast (ZnAl4Cu1)
- Shell plating: Nickel
- Strain relief: Polyacetal (POM)
- Environmental
- Flammability: UL 94 HB
- Standard compliance: IEC 61076-2-103
- Protection class: IP 40
- Solderability: Complies with IEC 68-2-20
- Temperature range: -30 °C to +80 °C
*Specifications are subject to change without notice.
