Quest MX10SB Compact, Concealable 10" 300 Watts RMS Subwoofer
Availability: Available
Quest Engineering
MXS10i Subwoofer
MXS10i Compact, Concealable Subwoofer
Extended range bass, and easy to conceal. The MXS10i coupled with MX or MXC loudspeakers provides a complete, full-range audio solution. One which architects and venue designers have long been waiting for.
The MXS10i is a suitable low/mid sound pressure level subwoofer for use in permanent installation environments. It is ideal as a bass extension to a distributed background music system, or as a multi-unit system in a bar or music venue.
The ‘punchy’, yet smooth performance of the MXS10i is delivered via the custom 10” 50mm Voice Coil - Dual Magnet Woofer. A decision early on in the design phase was made to build a custom driver to suit the application specific requirements of the MXS10i…the result speaks for itself.
A Closer Look
This unique band-pass subwoofer is specifically tuned for music playback in small to medium size venues. However, despite its small size, the MXS10i delivers high output and efficiency. The tuning and performance will match or exceed many physically larger systems.

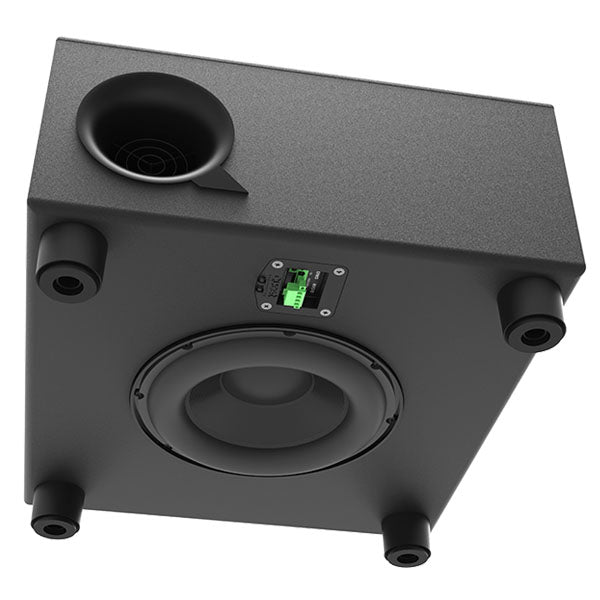

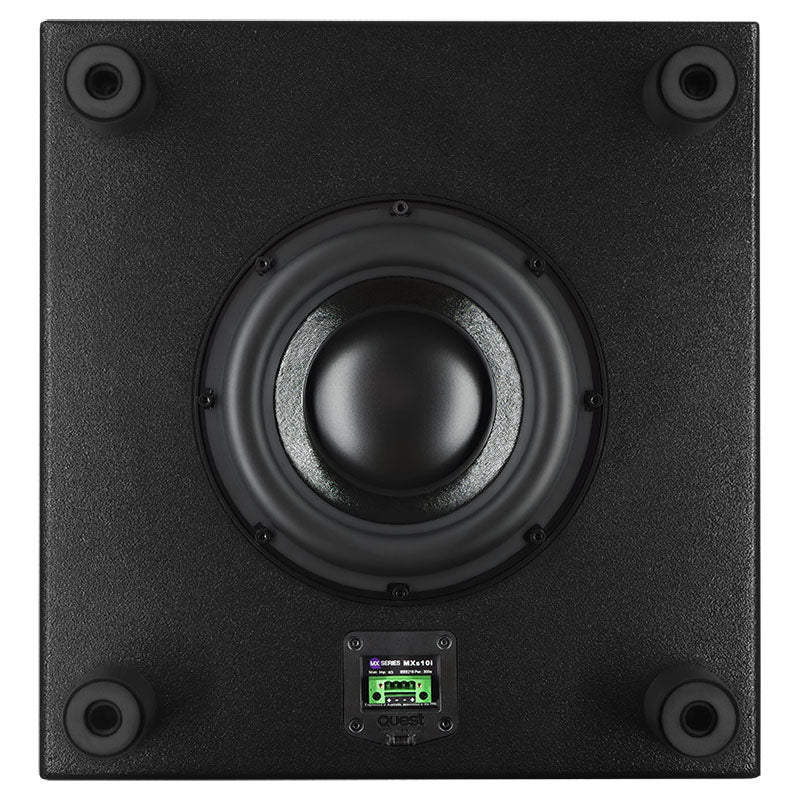

An outward facing driver is located under the cabinet to acoustically pressure load the unit onto a floor/wall, or ceiling installation surface; creating an 'acoustic chamber' effect. This extends the workable frequency range of the subwoofer, and gives a flatter and more natural response.
An ultra-durable and scratch resistant Polyurea coating is applied to a plywood cabinet giving the MXs10i superior protection in high humidity and commercial environments.
Integrating discrete full range sound is a challenge for architects and venue designers. Everything about the design and functionality of the MXS10i marries high performance, clean audio reproduction with varying architectural designs. Whether a new venue or an existing one, the MXS10i is easily integrated and perfectly at home.
Easy to Hide

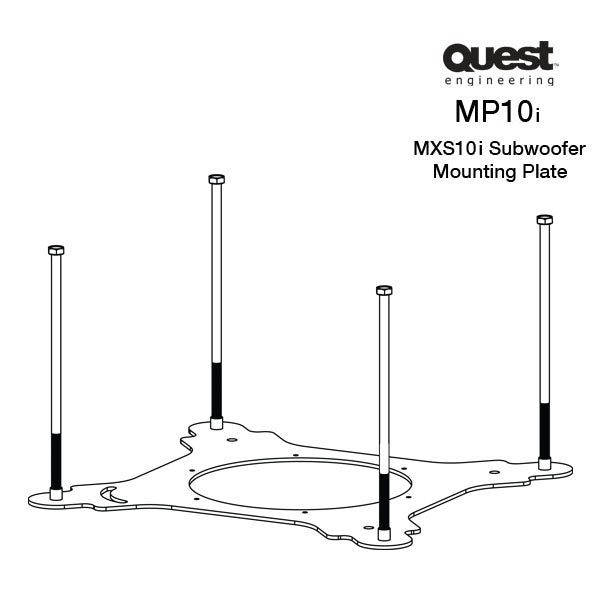

When installed with the optional MPS10 installation bracket, the MXS10i can be installed on walls, ceilings, or anywhere a venue designer wishes for concealed placement.
The omni-directional coverage of the MXS10i allows the it to be placed on a ceiling, or under furniture for complete area coverage; while remaining discrete or invisible.
The physical dimensions and aspect ratios of the MXS10i were chosen specifically to allow it to virtually disappear into a venue. Floor mounted under furniture, in a false ceiling space, or vertically mounted to a wall are just some examples of how the MXS10i can vanish into a venue.
| Specification | Specifications
|
||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Quest Engineering |
||||||||||||||||||||||||||||
| Package | 1 Pack | ||||||||||||||||||||||||||||
Specifications
| Max SPL *calculated | 118dBSPL |
| Sensitivity 1W @ 1m - 60Hz | 96dB |
| Frequency Response | -9dB 44Hz – 90Hz |
| Impedance | 8Ω |
| Power Handling | 300W RMS |
| Driver | 10" 50mm Voice Coil Dual Spider, Dual Magnet Woofer. |
| Connectivity | Captive Screw Terminal Plug (In/Thru) |
| Cabinet Construction | Polyurea coated plywood |
| Colour | Black |
| Dimensions *L x W x H | 500 x 470 x 256mm |
| Net Weight | 15.1 kg |
| Shipping Weight | 15.5 kg |
| Shipping Dimensions | 520 x 520 x 320mm |
| * Quest Engineering reserves the right to make changes in specifications, or products without prior notice. ** The figures shown above are ‘real world’, usable specifications and are conservative as a result. Quest Engineering does not believe in portraying misleading or exaggerated specifications. |
|
