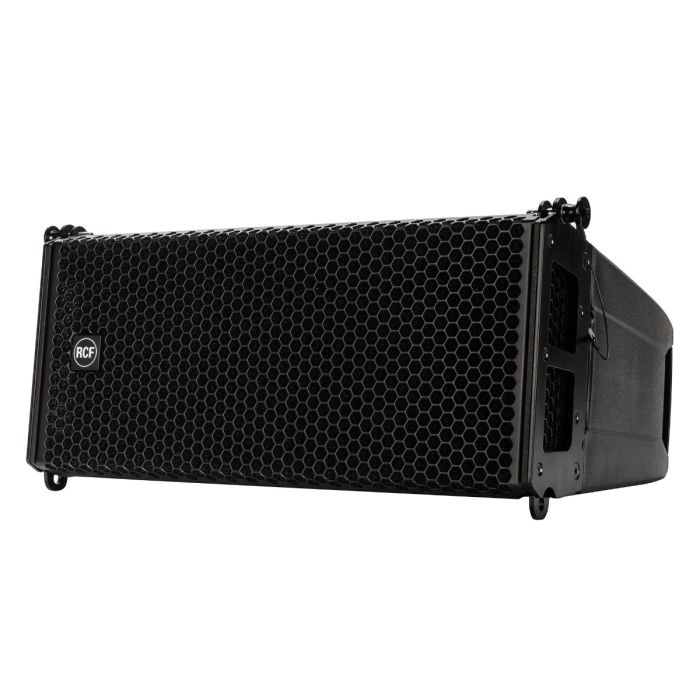

RCF HDL 26-A ACTIVE TWO WAY LINE ARRAY MODULE

A$6,415.00

LOW STOCK 12 LEFT

SKU

HDL 26-A

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

The RCF HDL26-A is an ultra-compact bi-amped two-way active touring system for small and medium-sized events, both indoors and outdoors. Due to the advanced transducer design and the 2000W Class-D amplifier, among the best in its class, it is capable of an extended bottom-end and a pristine sound for a wide range of applications, alone or in RDNet managed line-array configurations. The HDL 35-AS is the ideal flyable bass complement for the HDL 26-A array system.

FEATURES

133 dB Max SPL
2000W Two-Way Amplifier
Exclusive FiRPHASE technology on-board
750 Hz Crossover for best vocal reproduction
RDNet Networked Management
3.0” VC Compression Driver
2 x 6” High-Powered Neodymium Woofers
4 PATH waveguide

The acoustic beauty of symmetry

The symmetrical design of the cabinet produces identical left and right coverage of 100°x10°. Component positioning and the special DSP crossover of the HDL 26-A ensures constant directivity, reducing spots of break up or attenuation.

The front baffle provides:

Coplanar woofers
Controlled LF dispersion with hybrid-bandpass design
Central space to host the HF waveguide

Advanced design

The integrated fittings are both easy to use and reconfigurable, allowing the system engineer to create J-shaped and spiral arrays starting at 1° angle.

The hardware is designed for easy and fast setup. Up to 16 HDL 26-A modules can be fastened on a single flybar.

The heavy-duty front grille is powder coated. A special transparent-to-sound foam backing inside helps to further protect the transducers from dust. For weatherproof capabilities, a rain cover is available.

New perspective on linearity

RCF speakers are designed using a proprietary and advanced digital FiR technology, conceived to deliver transparent sound, absolute clarity, and perfect imaging to the listener. The special FiRPHASE filters allow for coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies in the system.

Hybrid bandpass design

After many computer simulations, tests in anechoic chambers and listening sessions, the woofer arrangement in hybrid bandpass configuration results in wider and more coherent coverage, allowing a more effective frontal beam with only a few boxes. This arrangement increases the directivity of the line array, doubling the radiation points on low/mid frequencies. The shape of the baffle reduces the turbulence outside the waveguide decreasing the overall distortions.

Class-D power

The amplifier is a central part of RCF’s product development. The HDL 26-A power section is tailored to the transducers and the cabinet design to reach excellent efficiency, low distortion and high signal-to-noise ratio. Class-D power amplifier technology operating at very low impedance produces extended transient response, while the high damping factor improves sound quality and detail. The amplifier module features +24 dBu input section, a solid machined aluminum structure which not only stabilizes the amplifier during transportation but also helps the fan-less heat dissipation. The low-latency DSP section deploys a remarkable amount of processing power for live performances with straight-forward control and monitoring of single parts of the module, including rigging angles and transducer performance via RDNet. An entire set of protections preserve product life and reliability.

Legendary transducers

The RCF HDL 26-A features state-of-the-art RCF transducers with neodymium magnets. RCF’s experienced engineering teams have specially developed and matched each component — starting from the power supply through the input board to the amplifiers and transducers right up to the complete HDL 26-A System.

High frequencies

High-performance RCF ND840
3.0-inch diaphragm titanium compression driver
1.4-inch exit throat
750 Hz Crossover Point

Low frequencies

2 X 2.0” voice coil neodymium 6” woofers
Low frequencies handling down to 55 Hz
Water resistant fiber doped cone
Polycotton M-roll surround
Hypervented magnetic structure

The ideal flyable bass complement

While the HDL 26-A is designed for the best speech intelligibility and background music, a correct musical response requires low distortion and high power on low frequencies.
The HDL 35-AS is the ideal flyable bass complement for the HDL 26-A array system.
It features a baltic birch plywood cabinet housing one 4.0” voice coil, 15” Neodymium woofer to handle frequencies from 40 Hz to 140 Hz with the maximum linearity and lowest distortion. The hardware is designed for an easy and fast setup, completely compatibile with HDL 26-A rigging. The heavy-duty front grille is powder coated. A special transparent-to-sound foam backing inside helps to further protect the transducers from dust. A rain cover is also available.

RCF RDNet

Networked control and much more

RDNet is a robust management network and control platform for small, medium and large arena-sized sound systems, as well as complex and extended installations. Based on a proprietary network protocol, RDNet provides intuitive control and monitoring of every connected device/object in the RCF audio system. Each device has DSP to address specific presets or modifications of parameters to single or groups of objects. A network user can change level, delay, EQ (linear phase FiR as well) and other settings, including advanced subwoofer configurations. RDNet is not only designed for loudspeakers—you can control parameters and routing of multiple RCF devices, such as digital matrixes or amplifiers.

More Information

More Information
Custom Stock Status	LOW STOCK {qty} LEFT
Specification	ACOUSTICAL SPECIFICATIONS Frequency Response: 55 Hz ÷ 20000 Hz Max SPL @ 1m: 133 dB Horizontal coverage angle: 100° Vertical coverage angle: 10° TRANSDUCERS Compression Driver: 1 x 1.5'' neo, 3.0'' v.c Woofer: 2 x 6.0'' neo, 2.0'' v.c INPUT/OUTPUT SECTION Input signal: bal/unbal Input connectors: XLR, RDNet Ethercon Output connectors: XLR, RDNet Ethercon Input sensitivity: +4 dBu PROCESSOR SECTION Crossover Frequencies: 750 Protections: Thermal, RMS Limiter: Soft Limiter Controls: Preset, RDNet bypass RDNet: Yes POWER SECTION Total Power: 2000 W Peak, 1000 W RMS High frequencies: 600 W Peak, 300 W RMS Low frequencies: 1400 W Peak, 700 W RMS Cooling: Convection Connections: Powercon IN/OUT PHYSICAL SPECIFICATIONS Cabinet/Case Material: PP Composite Hardware: Array fittings Handles: 2 Back Grille: Steel Color: Black, White SIZE Height: 237 mm / 9.33 inches Width: 470 mm / 18.5 inches Depth: 377 mm / 14.84 inches Weight: 13.5 kg / 29.76 lbs SHIPPING INFORMATION Package Height: 260 mm / 10.24 inches Package Width: 550 mm / 21.65 inches Package Depth: 425 mm / 16.73 inches Package Weight: 14.9 kg / 32.85 lbs
Manufacturer	RCF
Package	1 Pack

Specification

ACOUSTICAL SPECIFICATIONS

Frequency Response: 55 Hz ÷ 20000 Hz

Max SPL @ 1m: 133 dB

Horizontal coverage angle: 100°

Vertical coverage angle: 10°

TRANSDUCERS

Compression Driver: 1 x 1.5'' neo, 3.0'' v.c

Woofer: 2 x 6.0'' neo, 2.0'' v.c

INPUT/OUTPUT SECTION

Input signal: bal/unbal

Input connectors: XLR, RDNet Ethercon

Output connectors: XLR, RDNet Ethercon

Input sensitivity: +4 dBu

PROCESSOR SECTION

Crossover Frequencies: 750

Protections: Thermal, RMS

Limiter: Soft Limiter

Controls: Preset, RDNet bypass

RDNet: Yes

POWER SECTION

Total Power: 2000 W Peak, 1000 W RMS

High frequencies: 600 W Peak, 300 W RMS

Low frequencies: 1400 W Peak, 700 W RMS

Cooling: Convection

Connections: Powercon IN/OUT

PHYSICAL SPECIFICATIONS

Cabinet/Case Material: PP Composite

Hardware: Array fittings

Handles: 2 Back

Grille: Steel

Color: Black, White

SIZE

Height: 237 mm / 9.33 inches

Width: 470 mm / 18.5 inches

Depth: 377 mm / 14.84 inches

Weight: 13.5 kg / 29.76 lbs

SHIPPING INFORMATION

Package Height: 260 mm / 10.24 inches

Package Width: 550 mm / 21.65 inches

Package Depth: 425 mm / 16.73 inches

Package Weight: 14.9 kg / 32.85 lbs
