EVOX5

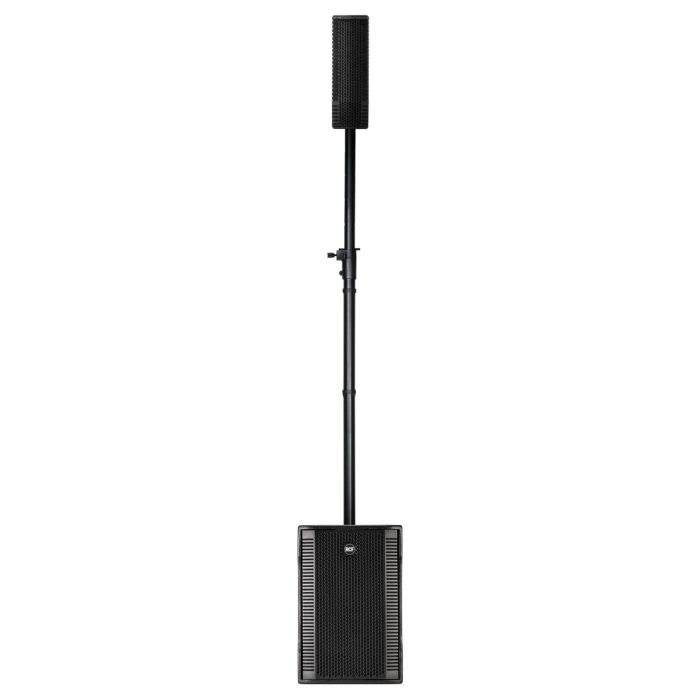

Evox 5 is a portable compact size sound reinforcement system. Evox 5 combines the quality and reliability of RCF transducers with a very high amplification power. The system features five 2.0” full range transducers in the line source satellite and a deep sounding 10” woofer in a bass reflex enclosure. The system is designed to be the perfect portable solution for live music and DJs. The unique vocal attitude and portability make Evox 5 the perfect tool for presentations, corporate events and congresses.
PORTABILITY During transportation, the top column is located in a special socket in the back side of the Sub. A specifically designed rail on the sub will guide you during the insertion and extraction of the top column.
MOUNTINGThe top column will be inserted on the pole mount, which can be easily screwed on the Sub top side and the pole mount can be separated in two single parts in order to place it on the transportation bag.
PLAY!Carrying and mounting your audio system has never been so quick!
RCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. EVOX amplifiers deliver ultra-fast attack, realistic transient response and impressive audio performance. The amplifier features a solid mechanical aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. The EVOX amplifiers present SMPS power supply section in order to produce maximum output and minimum transportation weight.
Custom Stock Status | Call for availability |
---|---|
Specification | SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE: 45 Hz ÷ 20000 Hz
MAX SPL @ 1M: 125 dB
HORIZONTAL COVERAGE ANGLE: 120°
VERTICAL COVERAGE ANGLE: 30°
Transducers
FULLRANGE: 5 x 2.0'', 1.0'' v.c
WOOFER: 10'', 2.0'' v.c
Input/Output section
INPUT SIGNAL: bal/unbal
INPUT CONNECTORS: XLR, Jack
OUTPUT CONNECTORS: XLR
INPUT SENSITIVITY: -2 dBu/+4 dBu
Processor section
CROSSOVER FREQUENCIES: 220 Hz
PROTECTIONS: Thermal, RMS
LIMITER: Soft Limiter
CONTROLS: Volume, EQ, Phase, Xover
Power section
TOTAL POWER: 800 W Peak, 400 W RMS
HIGH FREQUENCIES: 200 W Peak, 100 W RMS
LOW FREQUENCIES: 600 W Peak, 300 W RMS
COOLING: Convection
CONNECTIONS: VDE
Standard compliance
CE MARKING: Yes
Physical specifications
CABINET/CASE MATERIAL: Baltic birch plywood
HARDWARE: 2 x M6
HANDLES: 1 Top
POLE MOUNT/CAP: Yes
COLOR: Black
Size
HEIGHT: 490 mm / 19.29 inches
WIDTH: 288 mm / 11.34 inches
DEPTH: 427 mm / 16.81 inches
WEIGHT: 18.8 kg / 41.45 lbs
Shipping informations
PACKAGE HEIGHT: 650 mm / 25.59 inches
PACKAGE WIDTH: 345 mm / 13.58 inches
PACKAGE DEPTH: 480 mm / 18.9 inches
PACKAGE WEIGHT: 22.8 kg / 50.27 lbs
|
Manufacturer | RCF |
Package | 1 Pack |
