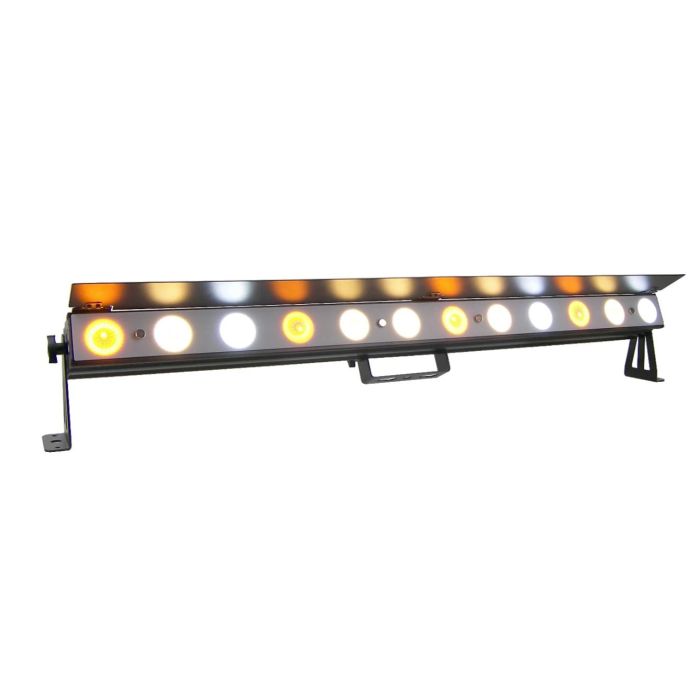

Event Lighting PIXBAR12VW - 12 x 6W CW/WW/A Pixel Control Bar with barndoor
Availability: Available
The Event Lighting PIXBAR12VW is a brilliant lighting companion for any event or production. Featuring 12 x 6W CW/WW/A LEDs, this pixel bar delivers Cool White, Warm White and Amber to provide the right atmosphere with any occasion. With a beam angle of 30° (optional 55°), you can precisely tailor the coverage to suit any venue or stage.
Experience dazzling illumination with an output of 4,350 lux at 2 meters. With 4 x 16-bit Dimming Curves and adjustable strobe settings from 1 to 30Hz, you have complete control over your lighting effects. Seamlessly switch between operational modes including DMX, manual, auto, and sound active, all accessible through the intuitive 4-button LCD control panel.
Crafted with durability in mind, the PIXBAR12VW features a sturdy aluminium housing with a sleek matte black finish. The included barndoor and frost filter enhance versatility, allowing for precise light shaping and diffusion. With True1 in/out and 3/5 Pin DMX in/out, installation is quick and hassle-free. Equipped with fanless cooling and a compact design, this pixel bar ensures reliability and consistent performance in any environment.
Specifications:
Photometrics
- Light Source: 12 x 6W CW/WW/A LEDs
- Beam Angle: 25° (optional: 8°, 15°, 50°)
- Output: 4,350 lux @2.0m full on
- PWM: 1,200Hz
- LED Life: 50,000 hours
Effects
- Dimming: 5 dimming curves (Standard / Stage / TV / Architect / Theatre)
- Strobe: 1~30Hz
Power
- Input Voltages: 100~240V AC, 50/60Hz, 75W
- Power Connection: True1 in/out
Control
- Operation Modes: DMX, manual, auto, sound active, master/slave, multi fixture chase
- Display: 4-button LCD control panel
- Control Protocol: DMX512
- DMX Channels: 1 / 2 / 3 / 10 / 12 / 12P / 36 / 38
- Control Interface: 3-pin and 5-pin XLR in / out
- Software Upgrade via DMX: Yes
Housing
- Housing Materials: Aluminium, matte black finish
- Barndoor: included
- Frost filter: included
- Cooling: Fanless Cooling
- Dimension: 1050 x 165 x 80mm
- Net Weight: 4.3kg
| Specification | Specifications: Photometrics
Effects
Power
Control
Housing
|
|---|---|
| Package | 1 Pack |
Specifications:
Photometrics
- Light Source: 12 x 6W CW/WW/A LEDs
- Beam Angle: 25° (optional: 8°, 15°, 50°)
- Output: 4,350 lux @2.0m full on
- PWM: 1,200Hz
- LED Life: 50,000 hours
Effects
- Dimming: 5 dimming curves (Standard / Stage / TV / Architect / Theatre)
- Strobe: 1~30Hz
Power
- Input Voltages: 100~240V AC, 50/60Hz, 75W
- Power Connection: True1 in/out
Control
- Operation Modes: DMX, manual, auto, sound active, master/slave, multi fixture chase
- Display: 4-button LCD control panel
- Control Protocol: DMX512
- DMX Channels: 1 / 2 / 3 / 10 / 12 / 12P / 36 / 38
- Control Interface: 3-pin and 5-pin XLR in / out
- Software Upgrade via DMX: Yes
Housing
- Housing Materials: Aluminium, matte black finish
- Barndoor: included
- Frost filter: included
- Cooling: Fanless Cooling
- Dimension: 1050 x 165 x 80mm
- Net Weight: 4.3kg
