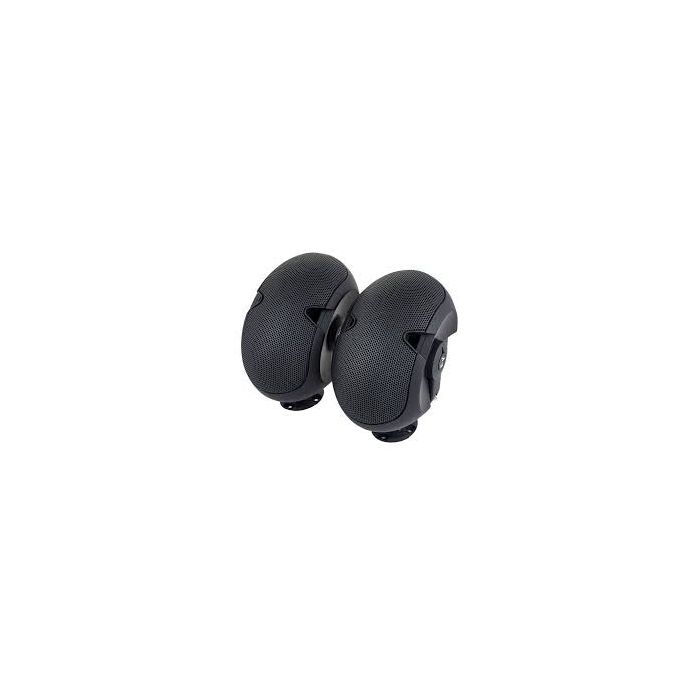

EV EVID 6.2 PAIR DUAL 6" TWO-WAY SURFACE-MOUNT LOUDSPEAKER
A$1,324.40
Availability: Unavailable
- Compact full range
- Ideal for shopping malls, sports bars, and health clubs
- Vented LF enclosure
- 1-inch titanium diaphragm HF driver with neodymium magnetic structure
- Coherent Coverage Waveguide
- Full-bandwidth overload protection (LF and HF)
- Elliptical weather-resistant ABS enclosure
- Paintable black or white finish
- Magnetically shielded for video applications
- Strong-Arm Mount™ for easy, flexible aiming
- "T" version for 70 or 100 V distributed systems
More Information
| Specification |
Chassis Size
| |
6" (152.4 mm) |
| Color |
Black, White |
| Input Connections |
Spring Terminal |
| Speaker Type |
Full-range, Mid-High, Two-Way |
| Transformer Taps (Transformer Version Only) |
70 V/100 V: 15 W, 30 W, 60 W, 8 Ω Bypass |
| Frequency Response (-10 dB) |
62 - 20000 Hz |
| Internal Crossover |
Yes |
| Sensitivity 1 W/1 m |
94 dB |
| Max. SPL/1m (calc) |
122 dB |
| Coverage (Nominal -6 dB) H |
100 ° |
| Coverage (Nominal -6 dB) V |
80 ° |
| System Power Handling (Continuous/Program/Peak) |
150//600 Watts |
| LF Transducer |
Two 6-inch |
| LF Power Handling |
Two 6-inch Watts |
| HF Power Handling |
1-inch Watts |
| HF Transducer |
1-inch |
| Nominal Impedance (Passive) |
8 Ω |
| Minimum Impedance |
6 Ω |
| Outdoor |
Yes |
| Height |
16.5" (419 mm) |
| Width |
8.98" (228 mm) |
| Depth |
11.73" (298 mm) |
| Weight Net |
5.3 kg (11.68 lbs) |
|
|
| Manufacturer |
EV |
| Package |
1 Pack |
Chassis Size
| |
6" (152.4 mm) |
| Color |
Black, White |
| Input Connections |
Spring Terminal |
| Speaker Type |
Full-range, Mid-High, Two-Way |
| Transformer Taps (Transformer Version Only) |
70 V/100 V: 15 W, 30 W, 60 W, 8 Ω Bypass |
| Frequency Response (-10 dB) |
62 - 20000 Hz |
| Internal Crossover |
Yes |
| Sensitivity 1 W/1 m |
94 dB |
| Max. SPL/1m (calc) |
122 dB |
| Coverage (Nominal -6 dB) H |
100 ° |
| Coverage (Nominal -6 dB) V |
80 ° |
| System Power Handling (Continuous/Program/Peak) |
150//600 Watts |
| LF Transducer |
Two 6-inch |
| LF Power Handling |
Two 6-inch Watts |
| HF Power Handling |
1-inch Watts |
| HF Transducer |
1-inch |
| Nominal Impedance (Passive) |
8 Ω |
| Minimum Impedance |
6 Ω |
| Outdoor |
Yes |
| Height |
16.5" (419 mm) |
| Width |
8.98" (228 mm) |
| Depth |
11.73" (298 mm) |
| Weight Net |
5.3 kg (11.68 lbs) |
|
