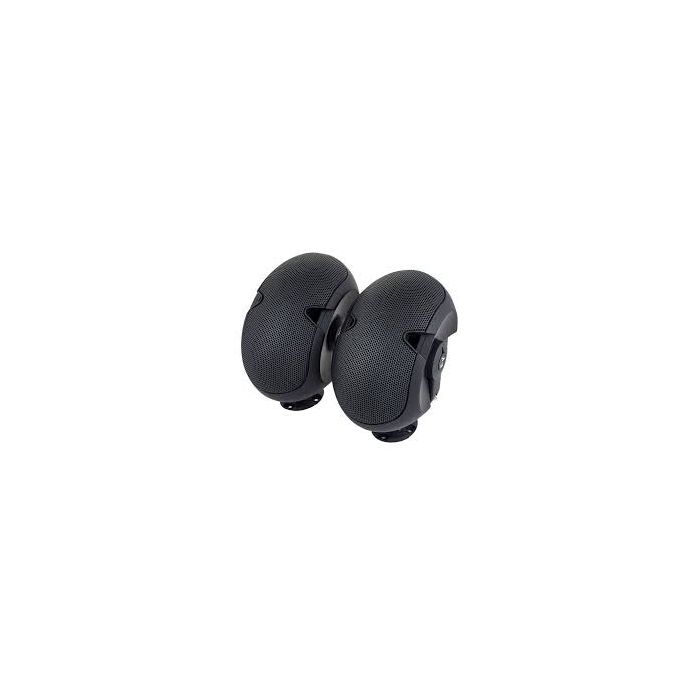

EV EVID 4.2 PAIR DUAL 4" TWO-WAY SURFACE-MOUNT LOUDSPEAKER
A$782.10
TAKING ORDERS
SKU
EVID4.2
Price per PAIR
- Compact full range
- Ideal for restaurants, bars, patios, and retail
- Vented LF enclosure
- 1-inch titanium diaphragm HF driver with neodymium magnetic structure
- Coherent Coverage Waveguide
- Full-bandwidth overload protection (LF and HF)
- Elliptical weather-resistant ABS enclosure
- Paintable black or white finish
- Magnetically shielded for video applications
- Strong-Arm Mount™ for easy, flexible aiming
- "T" version for 70 or 100 V distributed systems
| Custom Stock Status | TAKING ORDERS | ||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specification |
|
||||||||||||||||||||||||||||||||||||||||||||||
| Manufacturer | EV |
||||||||||||||||||||||||||||||||||||||||||||||
| Package | 1 Pack |
| Chassis Size | 4" (101.6 mm) |
| Color | Black, White |
| Input Connections | Spring Terminal |
| Speaker Type | Full-range, Mid-High, Two-Way |
| Transformer Taps (Transformer Version Only) | 70 V: 3.75 W, 70 V/100 V:7.5 W, 15 W,30 W,8 Ω Bypass |
| Frequency Response (-10 dB) | 65 - 20000 Hz |
| Internal Crossover | Yes |
| Sensitivity 1 W/1 m | 89 dB |
| Max. SPL/1m (calc) | 115 dB |
| Coverage (Nominal -6 dB) H | 120 ° |
| Coverage (Nominal -6 dB) V | 80 ° |
| System Power Handling (Continuous/Program/Peak) | 100//400 Watts |
| LF Transducer | Two 4-inch |
| LF Power Handling | Two 4-inch Watts |
| HF Power Handling | 1-inch Watts |
| HF Transducer | 1-inch |
| Nominal Impedance (Passive) | 8 Ω |
| Minimum Impedance | 6 Ω |
| Outdoor | Yes |
| Height | 12.2" (309.89 mm) |
| Width | 6.9" (175.26 mm) |
| Depth | 8.5" (215.9 mm) |
| Weight Net | 3.9 kg (8.6 lbs) |
