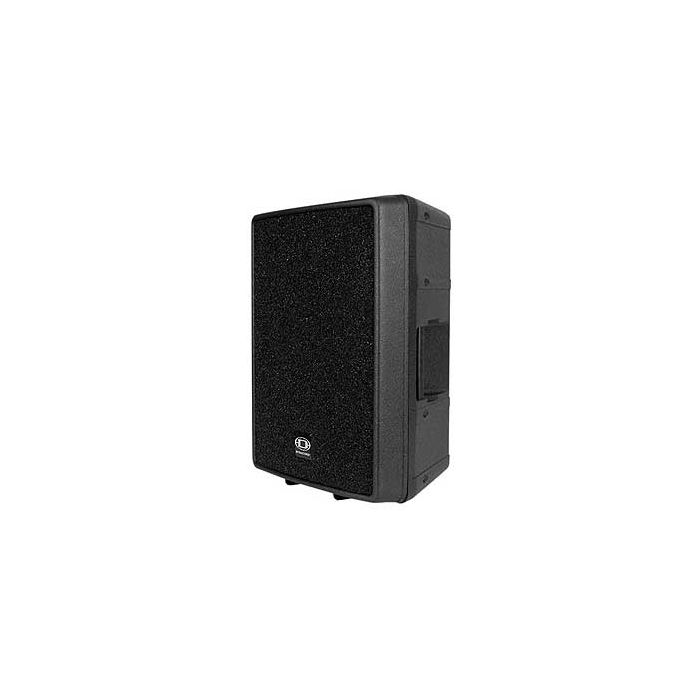

DYNACORD D12-3 3-WAY 12" PASSIVE SPEAKER 350W RMS
Availability: Unavailable
DYNACORD
350W RMS
With the newly designed D12-3, DYNACORD fulfills a longtime customer demand for a light-weight , extremely robust high-performance professional 12“ 3-way plastic cabinet for use in professional, portable and fixed install sound reinforcement applications.
With a variety of suspension accessories and conservative cosmetics, the D12-3 is also ideally suited to be used in demanding fixed installations. The cabinet is manufactured from Polypropylene and therefore is extremely resistant against abuse on the road.
For low frequencies an Electro-Voice DL12BFH is used. The midrange is projected from the ultra-low distortion DYNACORD DND 6120 Neodymium cone transducer with a conical radiation pattern of 120°. The DND 6120 guarantees excellent intelligibility without any necessity of precise aiming. The Electro-Voice DH 3 driver is used for the projection of the high frequencies. The Constant-Direcctivity HF horn has been integrated into the baffl e by CAD methods. Nominal coverage angle of the cabinet is 90°*50°, horizontal*vertical respectively. Power handling of the cabinet is 350W (continuous), 700W (program) and 1400W (peak). The maximum sound pressure level is 128dB, the frequency range of the D12-3 is 70Hz to 18kHz. The D12-3 is ideally suited for applications as full-range cabinet or as Mid-Hi cabinet in in high-performance small-format active and passive satellite systems.
| Specification | Cabinet Full-Range
Configuration Passive 3-Way
Nominal impedance 8 Ohms
Rated power RMS 350 Watts
Program power 700 Watts
Peak power 1400 Watts
SPL 2,83 V / 1m 1W / 8 Ohm 100 dB
Max. SPL 1m (calculated) 128 dB
Frequency range ( -10dB ) Full range 70 Hz - 20kHz
Coverage angle 1 kHz -6dB 120° Conical
Coverage angle 10kHz -6dB 90° * 50°
Passive crossover frequency 700Hz, 4kHz
Voice coil tracking protection Yes
Component HIGH Electro-Voice DH-3
Order No. 353 078
Component MID DYNACORD DND 6120 Neodymium
Order No. 366 302
Component LOW Electro-Voice DL12BFH
Order No. 358 288
Connectors Full-Range 1+, 1-
Wired through 2+, 2-
Connector model Speakon 2x NL4 MPR
Dimensions (WxHxD) mm 430 x 586 x 321
Shipping weight 20 kg
Net weight 19 kg
Enclosure material Heavy Duty Polypropylene
Finish Black
Grille Powder coated steel, Acoustic foam
Handles 1
Warranty 36Month
|
|---|---|
| Manufacturer | DYNACORD |
| Package | 1 Pack |
