Availability: Available
CHAUVET
Specification | DMX Channels: 3, 9, Pixel or Pixel+ DMX Connectors: 3-pin XLR Light Source: 5 SMD LEDs (tri-color RGB) 0.1 W, (20 mA), 50,000 hours life expectancy (per bulb) Strobe Rate: 0 to 10 Hz PWM Frequency: 604 Hz Coverage Angle: 360° IP Rating: IP54 Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging) Power and Current: Weight: (Controller): 3.6 lbs (1.4 kg) Size: |
---|---|
Manufacturer | CHAUVET |
Package | 1 Pack |
DMX Channels: 3, 9, Pixel or Pixel+
DMX Connectors: 3-pin XLR

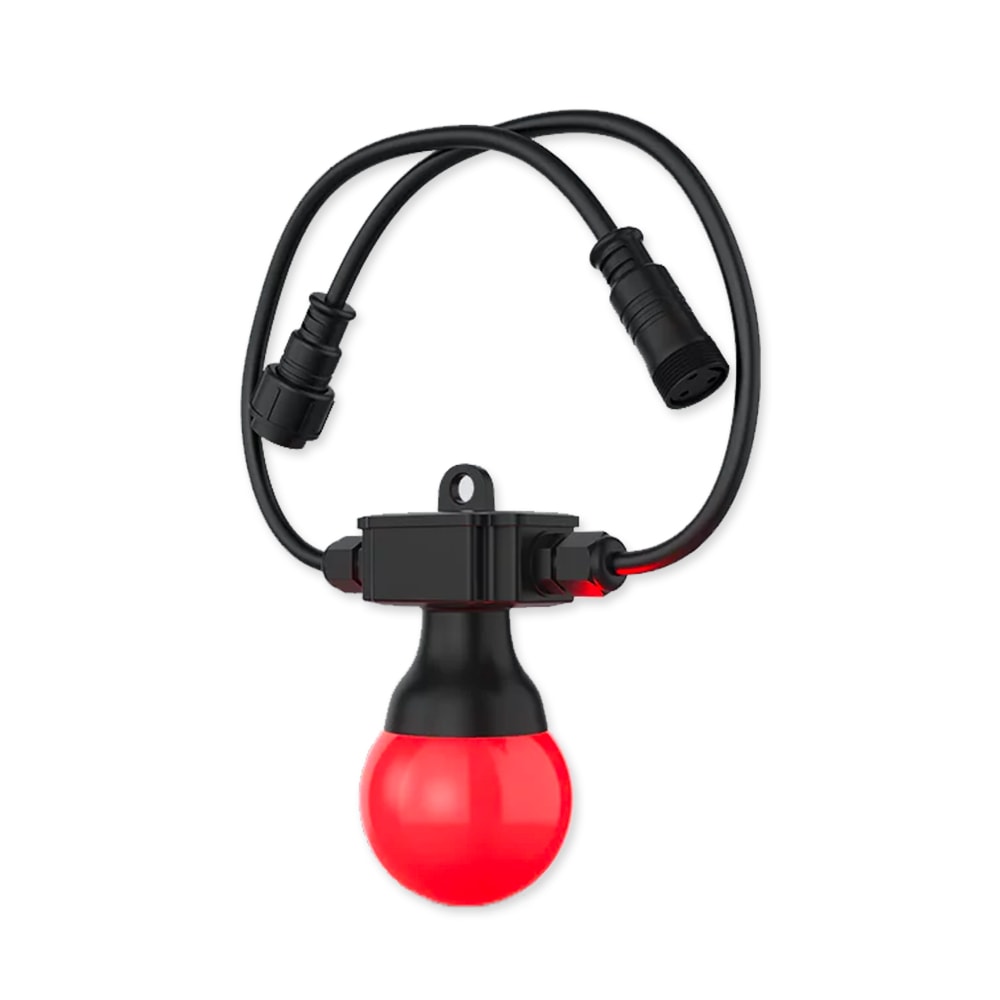

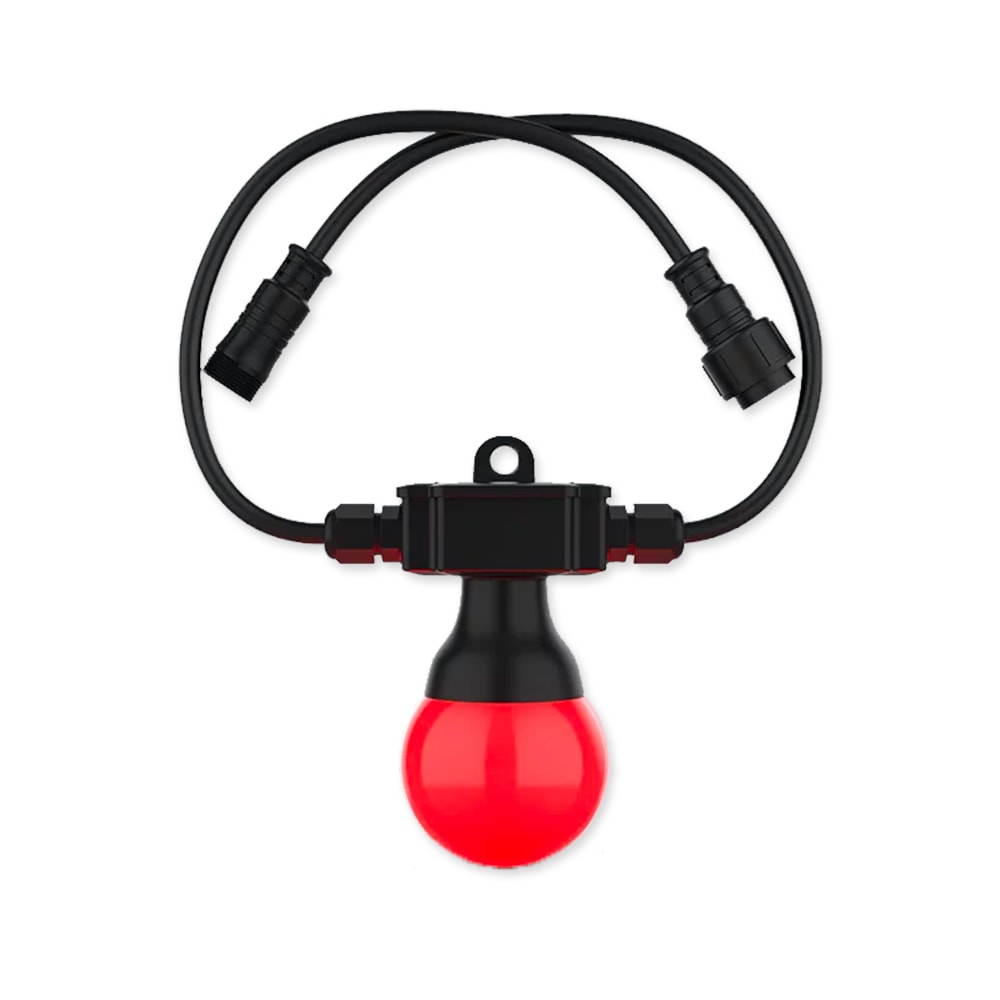

Light Source: 5 SMD LEDs (tri-color RGB) 0.1 W, (20 mA), 50,000 hours life expectancy (per bulb)
Strobe Rate: 0 to 10 Hz
PWM Frequency: 604 Hz
Coverage Angle: 360°
IP Rating: IP54
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current:
(20 Bulbs): 42 W, 0.3 A @ 120 V, 60 Hz
(40 Bulbs): 77 W, 0.7A @ 120 V, 60 Hz
(60 Bulbs): 107 W, 0.9A @ 120 V, 60 Hz
(20 Bulbs): 47 W, 0.2 A @ 230 V, 50 Hz
(40 Bulbs): 78 W, 0.3 A @ 230 V, 50 Hz
(60 Bulbs): 108 W, 0.5 A @ 230 V, 50 Hz

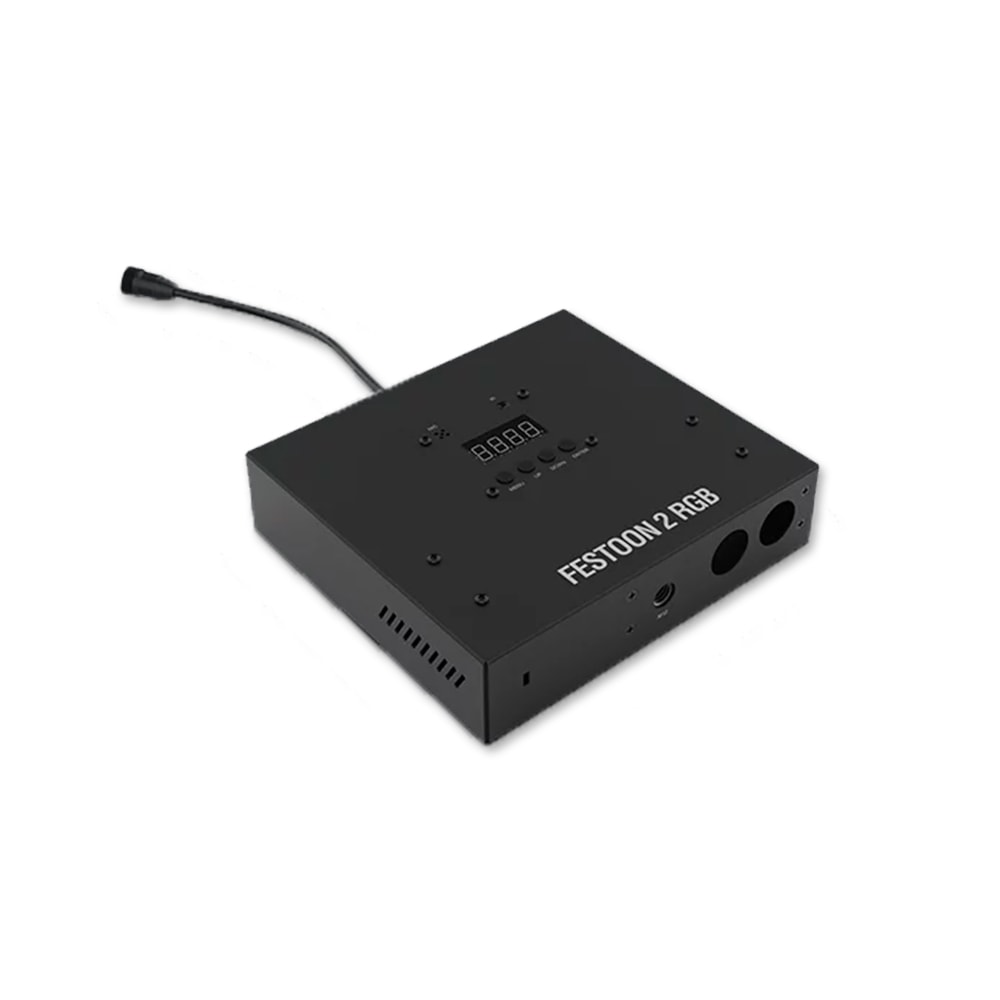

Weight: (Controller): 3.6 lbs (1.4 kg)
Size:
(String): 590.5 x 2.4 x 5.2 in (15,000 x 60 x 133 mm)
(Controller): 7.25 x 8 x 2 in (184 x 203 x 49 mm)
